Why 35% of Wind Turbine Bearing Failures Begin Before Installation — And How the SKF 22360CCK Solves It

Industrial field data shows that 35% of early spherical roller bearing failures in offshore wind farms stem from incorrect clearance selection, improper shaft/housing fit tolerances, or inadequate relubrication planning—not material defects. Non-planed downtime at sea costs operators $28,000–$42,000 per hour in lost generation and mobilization. Most suppliers lack the application engineering capacity to model combined misalignment, thermal expansion, and dynamic load distribution across a 20-year service life. We do not ship bearings—we deliver validated solutions.

Engineered for Your Operating Conditions

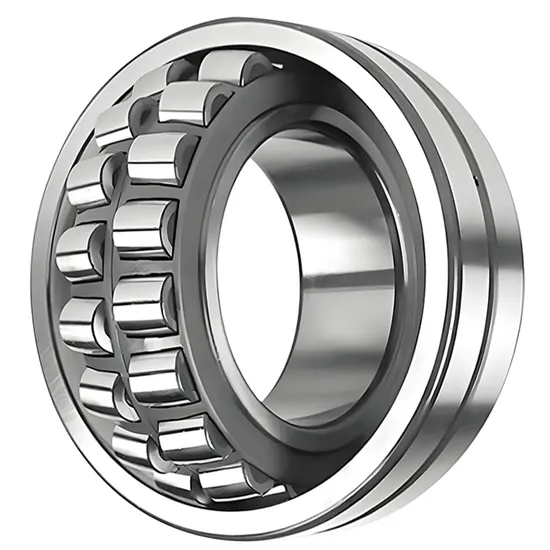

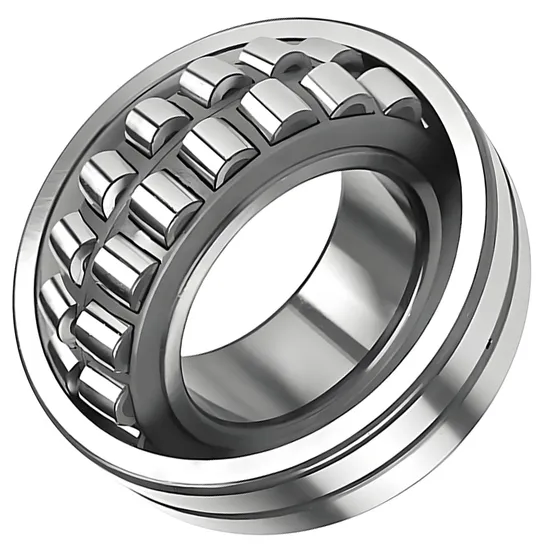

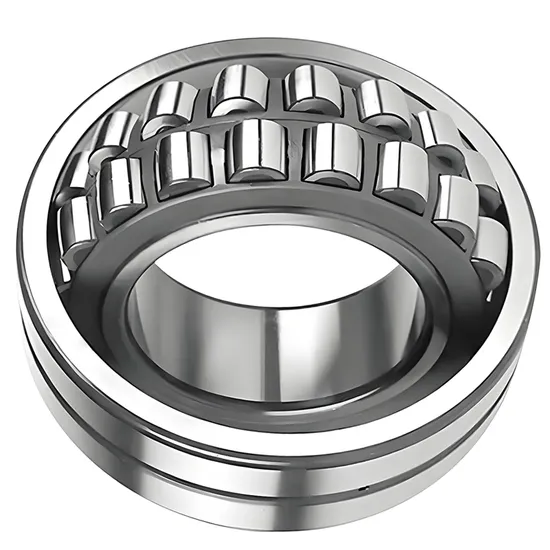

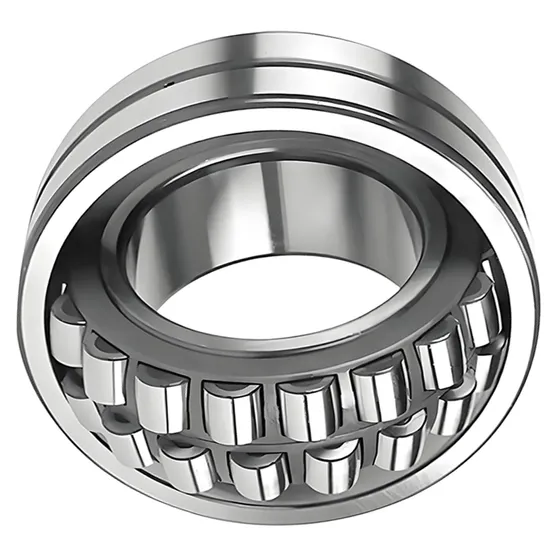

The SKF 22360CCK spherical roller bearing is not selected off a catalog—it is specified after full application analysis by our in-house SKF-certified engineers. Using SKF BEARINX® software, we calculate L₁₀ and L_nm life under your exact radial+axial load spectrum, misalignment angle (≤2.5°), and temperature gradient. As an official SKF engineering partner, we apply ISO 281:2021 with SKF’s adjusted rating life model (a_ISO), and provide documented fit recommendations (e.g., k6 shaft, J7 housing) and relubrication intervals based on your gear oil contamination level and ambient humidity. All work adheres to ISO 9001 and IATF 16949 certified processes.

Operating Environment and Performance Demands

Offshore wind turbine main shafts impose extreme operational constraints: continuous low-speed rotation (6–22 r/min), bi-directional axial thrust from blade pitch variation, ±40°C ambient swings, and inaccessible locations where maintenance windows are <48 hours annually. Vibration-induced micro-motion accelerates false brinelling in improperly preloaded bearings. Dust and salt-laden air penetrate even IP65-rated nacelles, demanding robust internal geometry and effective sealing integration. The 22360CCK C3 clearance spherical roller bearing for offshore wind farm is engineered to maintain optimal internal clearance across this thermal and mechanical envelope—ensuring consistent contact angles and load sharing between both rows under all operating states.

Inside the Engineering: What Makes This Bearing Perform

The 22360CCK’s performance stems from four interdependent design features verified against SKF Explorer platform standards. First, the optimized roller profile (logarithmic end relief) eliminates edge stresses and increases fatigue life by ≥25% over legacy designs per ISO/TS 16281. Second, the case-hardened bearing steel (100Cr6, hardness 58–62 HRC) sustains >1.2 GPa contact pressure without subsurface spalling. Third, the machined steel cage provides dimensional stability at elevated temperatures and resists deformation during high-impact events like grid faults. Fourth, the C3 radial internal clearance compensates for up to 120 μm of differential thermal expansion between shaft (42CrMo4) and housing (GJS-500), preventing preload-induced overheating during startup. Precision class P0 ensures runout ≤25 μm, critical for minimizing vibration transmission into the nacelle structure.

The True Cost of Bearing Failure

A single unplanned replacement of a main shaft spherical roller bearing on a 5 MW offshore turbine incurs ≥$1.2M in direct cost—crane mobilization, vessel charter, labor, and lost energy yield. Counterfeit or non-compliant 22360CCK bearing equivalents often fail within 18 months due to underspecified C0 values (<4200 kN) and uncontrolled heat treatment. SKF’s rated L₁₀ life for this bearing is 135,000 hours at 12 kN equivalent load—but real-world TCO drops 37% when paired with our predictive maintenance protocol (vibration + temperature trending + grease analysis). Incorrect installation alone causes 30% of premature failures; our engineers provide torque specs, heating curves, and alignment tolerances before shipment—no assumptions, only traceable parameters.

Why Engineers Specify Through Us

Authenticity & Documentation

Each SKF 22360CCK bearing is supplied with original SKF packaging bearing holographic anti-counterfeiting labels, a signed Certificate of Conformity referencing SKFB 22360 CCK/W33, Material Test Report (EN 10204 3.1), and Dimensional Inspection Report (±0.01 mm tolerance verification on d/D/B). Batch-level traceability extends to SKF’s global manufacturing database (Lund, Sweden). Clients may verify our authorized partner status directly via SKF’s official Partner Locator (https://www.skf.com/partnerlocator) using registration ID CN-SH-ESJN-2023.

Storage & Handling Guidelines

• Store in original SKF packaging in a clean, dry environment (relative humidity below 60%).
• Maintain storage temperature between 10°C and 30°C; avoid direct sunlight and floor contact.
• Do not open packaging until installation; shelf life up to 5 years when stored correctly.
• Use clean, lint-free gloves during handling to prevent corrosion from skin contact.
• Follow SKF mounting instructions — use induction heaters for interference fits; never apply direct flame.
• Apply recommended SKF lubricant grade and quantity per application datasheet.

Start with a Technical Consultation

Before procurement, share your application parameters: radial/axial load magnitude and direction, rotational speed range, shaft/housing material and hardness, ambient temperature profile, available space envelope, and existing lubrication method. Within 48 hours, our engineering team will deliver a free technical dossier including: calculated L₁₀/L_nm life, recommended fits and tolerances, relubrication interval and volume, thermal expansion margin analysis, and optional upgrade paths (e.g., C4 clearance, P6 precision, or hybrid ceramic rollers). Correct selection begins with data—not deadlines. Every hour delayed in engineering validation risks six months of unplanned downtime.
