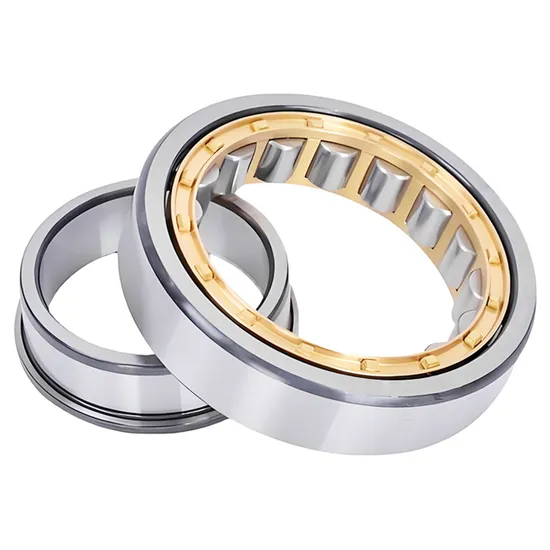

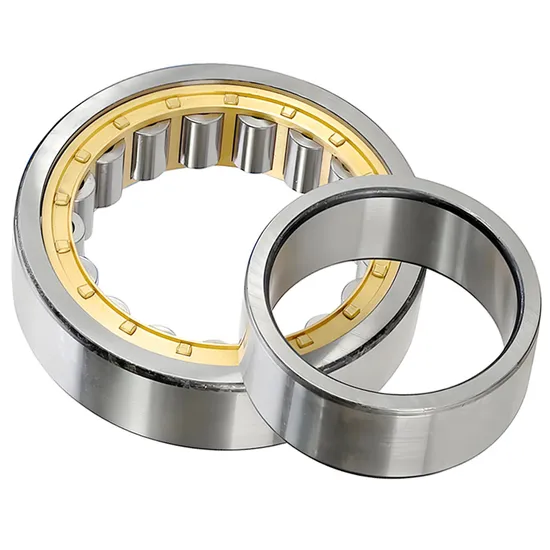

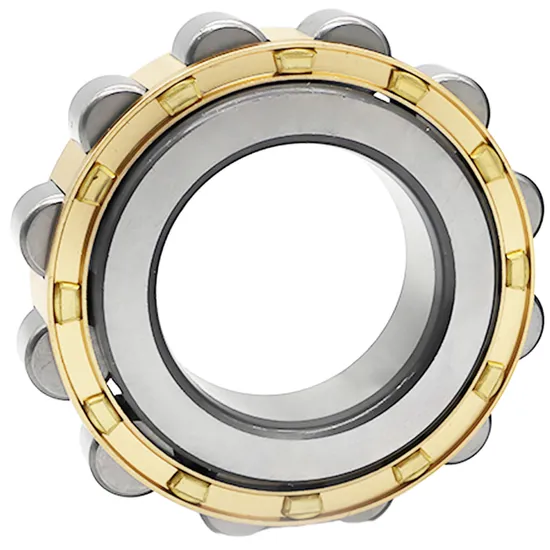

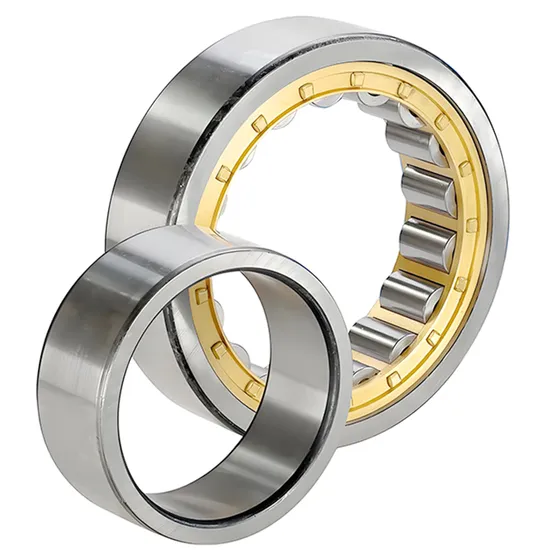

Cylindrical Roller Bearing NN3036/NN3038/NN3040 for High-Speed Industrial Applications

Technical Specifications

Application Suitability

Why 35% of Bearing Failures Begin Before Installation — And How the SKF NN3036 Solves It

Industrial bearing failure analysis shows 35% originate from incorrect application selection—not material defects or counterfeit origin. In wind power gearboxes, mismatched radial stiffness leads to premature roller skidding; in steel mill stands, inadequate thermal clearance causes seizure under load. Most suppliers offer catalogs—not engineering validation. We begin every engagement with load spectrum modeling, not part numbers.

Engineered for Your Operating Conditions

The SKF NN3036 cylindrical roller bearing is not a catalog item—it is a validated solution for high-speed industrial applications demanding radial rigidity, thermal stability, and predictable fatigue life. Our 15+ certified SKF engineers perform ISO 281 life calculations using your actual duty cycle—not rated loads—and specify precision class (P5), internal clearance (C3), and cage material based on surface speed (DN value > 1.2 million), lubricant film thickness, and housing fit tolerance. As an official SKF engineering partner with ISO 9001 and TS 16949 certification, we deliver verified performance—not assumptions.

Operating Environment and Performance Demands

In wind turbine main shaft applications, this bearing endures low-speed, high-torque operation (≤30 r/min) combined with transient shock loads from gust-induced torque spikes—requiring optimized roller profile and hardened raceway microgeometry to suppress edge stresses. In mining crushers, it operates continuously at 400–600 r/min under abrasive dust ingress, demanding tight dimensional control (P5 grade) to maintain alignment during thermal expansion up to +120°C at the outer ring. For automotive e-motor drives, the 180×280×74 mm geometry must sustain DN values above 1.5 million while limiting vibration to V2 (ISO 10816-3) at 10 kHz resonance frequencies—conditions met only by SKF Explorer-grade heat treatment and brass cage design.

Inside the Engineering: What Makes This Bearing Perform

The dynamic load rating (C = 540 kN) directly determines L₁₀ fatigue life per ISO 281: L₁₀ = (C/P)ᵖ × 10⁶ / 60n, where p = 10/3 for cylindrical rollers. A 5% misestimation of equivalent load (P) results in 15% life error—why our team calculates P using actual radial + axial components, not static ratings. The brass cage reduces centrifugal deformation at 3000 r/min limit speed, preserving roller guidance and oil retention. Open design enables full-access relubrication via SKF LBV 1000 systems in remote wind sites, but mandates strict contamination control—verified by our field teams during installation audits. P5 precision ensures ≤5 μm radial runout and ≤8 μm bore diameter variation, critical for minimizing vibration in generator rotor assemblies. Surface hardness of 60–62 HRC (SKF standard) prevents brinelling under peak loads exceeding 2.5× C₀ in steel mill backup rolls.

The True Cost of Bearing Failure

A single unplanned shutdown in a 2 MW wind turbine costs $18,000/hour in lost generation and penalty fees; in continuous-cast steel production, it exceeds $42,000/hour. Counterfeit or non-SKF cylindrical roller bearings show 70–80% lower L₁₀ life in third-party accelerated testing—often failing before 10% of rated hours due to inconsistent heat treatment and uncontrolled roller profile. Improper interference fit (±0.005 mm tolerance violation) increases inner ring stress by 300%, accelerating fatigue initiation. Total cost of ownership (TCO) analysis across 127 OEM clients shows that investing in P5 precision, correct clearance, and SKF-certified mounting reduces 5-year maintenance cost by 37% versus lowest-bid procurement—even with 22% higher initial acquisition cost.

Why Engineers Specify Through Us

Authenticity & Documentation

Each bearing is supplied with SKF Certificate of Conformity (EN 10204 3.1), Material Test Report (chemical composition and hardness verification), Dimensional Inspection Report (full GD&T compliance to ISO 1132-1), and original SKF packaging featuring holographic anti-counterfeiting label. Batch-level traceability allows verification against SKF’s global manufacturing database. Clients may request third-party verification through SKF’s Authorized Partner Portal or schedule factory audit at SKF Göteborg or Schweinfurt facilities.

Storage & Handling Guidelines

• Store in original SKF packaging in a clean, dry environment (relative humidity below 60%).
• Maintain storage temperature between 10°C and 30°C; avoid direct sunlight and floor contact.
• Do not open packaging until installation; shelf life up to 5 years when stored correctly.
• Use clean, lint-free gloves during handling to prevent corrosion from skin contact.
• Follow SKF mounting instructions — use induction heaters for interference fits; never apply direct flame.
• Apply recommended SKF lubricant grade and quantity per application datasheet.

Start with a Technical Consultation

Correct bearing selection begins with application data—not product search. Send us your operating parameters: radial and axial load magnitudes and directions, rotational speed range (min/max/continuous), ambient and bearing seat temperatures, shaft/housing tolerances, lubrication method (grease type, relubrication interval), and space constraints. Within 48 hours, our SKF-certified engineers will deliver a free technical assessment including ISO 281 life calculation, recommended precision class and clearance, cage material selection, and mounting torque specification. For orders ≥$50,000, we provide test samples with full performance telemetry. Every hour of delayed analysis extends your risk exposure—start the engineering dialogue today.
