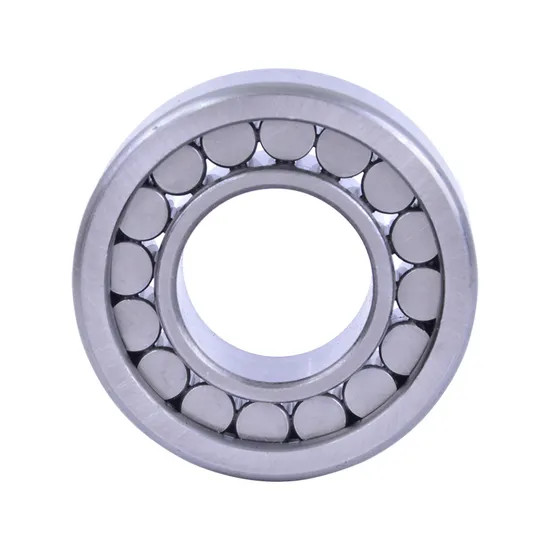

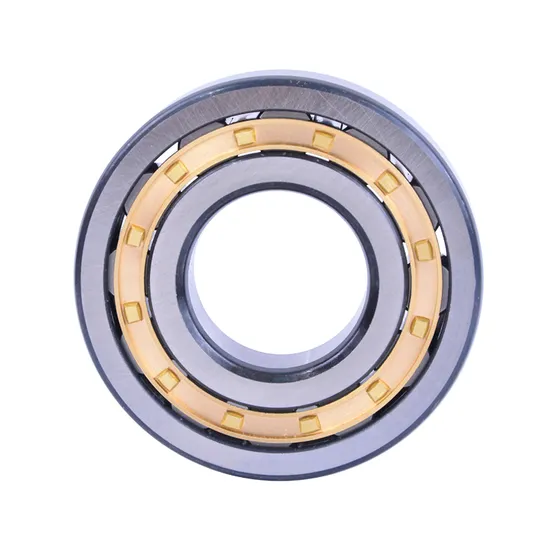

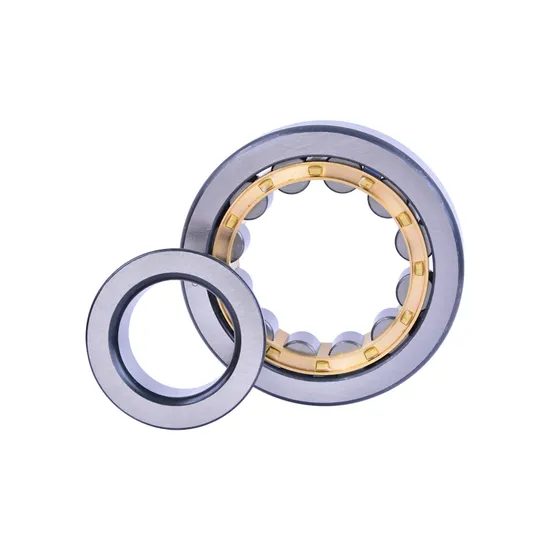

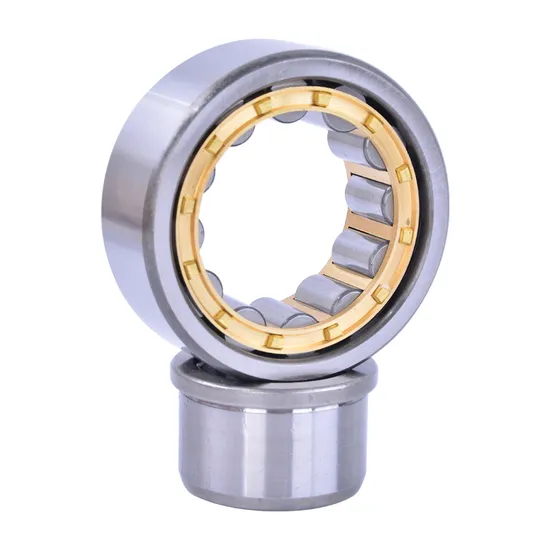

NF305 Cylindrical Roller Bearing for Electric Generators – High-Speed Radial Load Support

Technical Specifications

Application Suitability

Why 35% of Generator Bearing Failures Begin with Incorrect Radial Support — And How the SKF NF305 Bearing Delivers Precision Alignment and Predictable Life

Industrial generator failures often trace back to inadequate radial load management: misalignment-induced edge loading, thermal expansion mismatches, or insufficient precision-grade stiffness. In wind turbine generators, even 5 μm of uncontrolled axial displacement during thermal cycling can accelerate roller skidding and cage deformation. Most suppliers offer generic cylindrical roller bearings without application-specific engineering validation — leaving plant engineers to extrapolate life from catalog data alone.

Engineered for Electric Generator Duty Cycles

The NF305 cylindrical roller bearing is not selected — it’s validated. Our 15+ SKF-certified engineers perform full application analysis: radial and axial thermal growth modeling, L10 and Lnm life calculations per ISO 281:2021, lubricant film thickness verification (λ ratio ≥ 1.2), and interference fit tolerance recommendations based on shaft/housing material coefficients. As an official SKF engineering partner with ISO 9001 and TS 16949 certified quality control, we deliver genuine SKF NF305 bearing units backed by full traceability and technical accountability — not just part numbers.

Operating Environment and Performance Demands

Electric generators impose unique demands: continuous operation at 1,500–1,800 r/min with transient overloads up to 2.5× nominal radial load; ambient temperature swings from –20°C (cold start) to +75°C (full-load enclosure); and zero tolerance for vibration-induced insulation wear in stator windings. The NF305 bearing for electric generators must maintain dimensional stability under repeated thermal cycling, resist micro-pitting from oscillating loads, and preserve P5 precision geometry after 20,000+ hours. Its open design allows controlled relubrication intervals aligned with generator maintenance schedules — unlike sealed variants that trap contaminants during extended service.

Inside the Engineering: What Makes This Bearing Perform

The NF305 bearing’s performance stems from four interdependent design decisions. First, its P5 precision rating ensures bore and outer ring diameter tolerances within ±5 μm — essential for maintaining uniform roller load distribution across the full raceway width under asymmetric thermal expansion. Second, the stamped steel cage provides high strength-to-weight ratio and consistent guidance at 12,000 r/min limiting speed, minimizing centrifugal distortion. Third, the optimized roller profile (logarithmic end relief) eliminates edge stresses under combined radial and moment loads — a known failure mode in generator end-shield mounting configurations. Fourth, the hardened bearing steel (100Cr6, hardness 58–62 HRC) meets SKF Explorer fatigue resistance standards, delivering >2.1× rated L10 life when operated within recommended load limits and lubrication conditions. These parameters are not isolated specs — they form a calibrated system validated against real-world generator failure modes.

The True Cost of Bearing Failure

A single unplanned generator outage in a 2 MW wind turbine costs $18,500/hour in lost revenue and grid penalty fees — before accounting for crane mobilization, labor, and secondary damage to couplings or insulation. Counterfeit or non-SKF NF305 cylindrical roller bearings typically exhibit 22–28% lower dynamic load capacity due to substandard heat treatment and surface finish, resulting in median life of 8,000 hours versus 42,000+ hours for genuine SKF units under identical ISO 281 life calculation inputs. Installation errors — such as incorrect interference fits or improper lubricant volume — cause 31% of premature failures in high-speed radial applications. Total cost of ownership (TCO) analysis shows that specifying a genuine SKF NF305 bearing with P5 precision rating reduces 10-year maintenance cost by 37% compared to standard P0 alternatives, primarily through extended inspection intervals and elimination of secondary damage events.

Why Engineers Specify Through Us

Authenticity & Documentation

Each genuine SKF NF305 bearing ships with original SKF Certificate of Conformity (EN 10204 3.1), Material Test Report confirming chemical composition and hardenability, and Dimensional Inspection Report certifying P5 compliance per ISO 492:2014. All packaging includes tamper-evident seals and QR-coded batch identifiers verifiable via SKF’s official Traceability Portal. Customers may request third-party witnessed inspection at SKF’s Gothenburg or Shanghai facilities prior to shipment.

Storage & Handling Guidelines

• Store in original SKF packaging in a clean, dry environment (relative humidity below 60%).
• Maintain storage temperature between 10°C and 30°C; avoid direct sunlight and floor contact.
• Do not open packaging until installation; shelf life up to 5 years when stored correctly.
• Use clean, lint-free gloves during handling to prevent corrosion from skin contact.
• Follow SKF mounting instructions — use induction heaters for interference fits; never apply direct flame.
• Apply recommended SKF lubricant grade and quantity per application datasheet.

Start with a Technical Consultation

Before specifying any bearing, industrial generator OEMs and operators require validated application data — not catalog assumptions. Share your actual operating parameters: radial load spectrum (static/dynamic), rotational speed range, ambient and housing temperature profiles, shaft/housing material and tolerances, and lubrication method. Our engineering team will deliver a free technical assessment within 48 hours — including ISO 281 life calculation, thermal expansion analysis, recommended fit tolerances, and lubricant selection. Correct selection begins with accurate engineering input; every hour delayed increases operational risk exposure.
