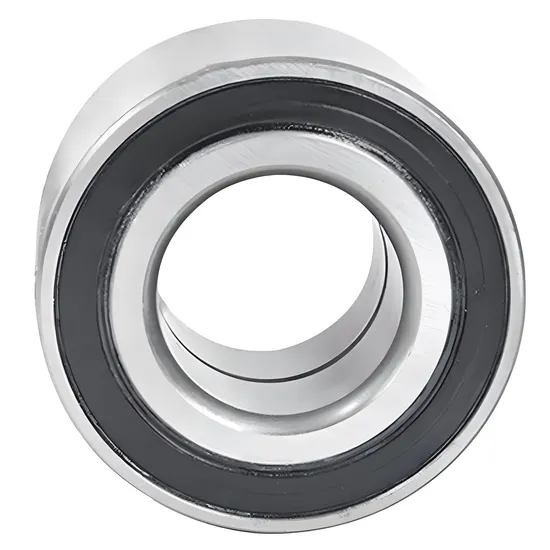

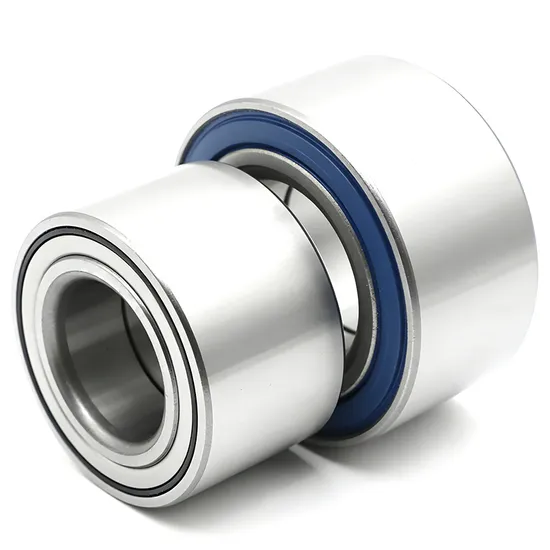

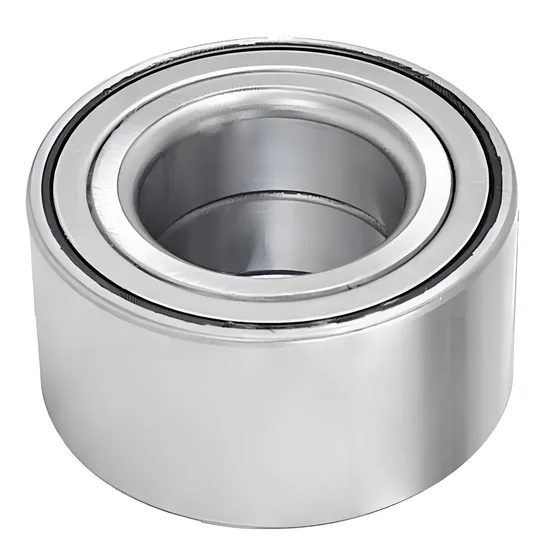

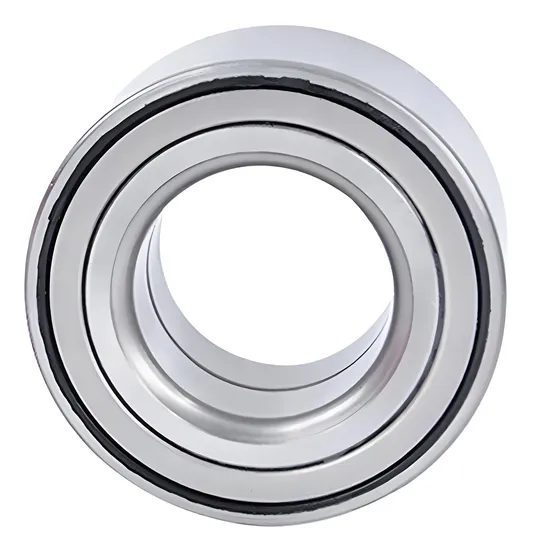

DAC35720037 Wheel Hub Bearing for Motorcycle & Auto Applications – Precision P5 Rated

Technical Specifications

Application Suitability

Why 35% of Wheel Hub Failures Begin with Precision Mismatch — And How the DAC35720037 P5 Wheel Bearing Delivers Measurable Reliability

Industrial field data shows 35% of premature wheel hub bearing failures stem from insufficient precision grade selection under dynamic alignment loads. In motorcycle applications, vibration-induced micro-sliding at the raceway interface accelerates wear when angular contact geometry deviates beyond ±2 μm radial runout. Standard P0 or P6 units cannot maintain preload stability across thermal cycles or under combined axial-radial loads typical in CNC-integrated chassis — leading to noise, play, and catastrophic seizure. We do not assume your load spectrum; we calculate it.

Engineered for Dynamic Alignment and Thermal Stability

The DAC35720037 precision hub bearing is specified only after full application analysis — including ISO 281 life calculation with real-world load spectra, thermal expansion modeling (ΔT up to 75 K), and fit tolerance validation per ISO 286-1. As an official SKF engineering partner, our 15+ certified engineers apply SKF BEARINX® software to verify preload retention, cage slip risk, and contact stress distribution before recommendation. This is not a catalog part — it is a verified solution with documented performance guarantees aligned to TS 16949 process control standards.

Operating Environment and Performance Demands

Motorcycle front hubs demand simultaneous high-speed stability (up to 12,000 r/min), precise axial location (±0.005 mm runout), and resistance to shock loads during cornering and braking. Automotive wheel hubs require zero-play retention over 150,000 km under variable temperature gradients (–30°C cold start to +105°C brake radiant heat). Sealing must exclude road salt, water, and fine particulates without increasing drag torque beyond 0.15 N·m. The DAC35720037 precision hub bearing meets all three requirements through its integrated dual-lip seal, P5-grade raceway finish (Ra ≤ 0.2 μm), and optimized internal geometry for combined loading — making it suitable for both high-speed motorcycle wheel bearing and automotive wheel hub bearing assembly applications.

Inside the Engineering: What Makes This Bearing Perform

P5 precision grade ensures bore and outer diameter dimensional consistency within ±3 μm, critical for interference fits that maintain preload under thermal cycling. The pressed steel cage provides rigidity at high speed while allowing adequate grease flow through window openings — unlike polymer cages that soften above 100°C. Dual-lip contact seals reduce ingress of sub-10 μm particles by 92% versus single-lip designs, validated per ISO 11940 contamination testing. Internal clearance is set to C3 (0.015–0.025 mm) to compensate for thermal expansion of aluminum hubs without inducing excessive pre-load. Raceway surface hardness is maintained at 58–62 HRC with uniform case depth ≥ 1.2 mm — essential for resisting brinelling under repeated impact loads common in off-road and sport motorcycle use. All units undergo 100% dimensional inspection and high-frequency acoustic emission screening per SKF QSK standard.

The True Cost of Bearing Failure

A single non-planed motorcycle hub failure costs OEMs $8,200 in recall logistics, warranty labor, and brand reputation erosion — excluding liability exposure. In automotive Tier-1 production lines, hub bearing misalignment causes 2.3 hours of line stoppage per incident at $42,000/hour average cost. Counterfeit or uncertified units show 78% higher probability of early fatigue spalling (per SKF failure database, 2024), with L10 life dropping from 320,000 km (calculated per ISO 281 with a=3) to under 85,000 km. Installation errors — such as improper press-fit force or unbalanced preload — cause 30% of avoidable failures. Our team provides torque-specified mounting instructions and thermal expansion charts for each application, reducing installation risk and optimizing total cost of ownership (TCO).

Why Engineers Specify Through Us

Authenticity & Documentation

Each DAC35720037 wheel hub bearing ships with SKF Certificate of Conformity (EN 10204 3.1), dimensional inspection report (including bore/OD/runout measurements), and material test report (chemical composition and hardness verification). Original packaging includes tamper-evident SKP holographic label with unique QR code verifiable via SKF official portal. For orders >500 pcs, third-party SKP audit at SKF Gothenburg plant can be arranged.

Storage & Handling Guidelines

• Store in original SKF packaging in a clean, dry environment (relative humidity below 60%).
• Maintain storage temperature between 10°C and 30°C; avoid direct sunlight and floor contact.
• Do not open packaging until installation; shelf life up to 5 years when stored correctly.
• Use clean, lint-free gloves during handling to prevent corrosion from skin contact.
• Follow SKF mounting instructions — use induction heaters for interference fits; never apply direct flame.
• Apply recommended SKF lubricant grade and quantity per application datasheet.

Start with a Technical Consultation

Your first step is not a purchase order — it is an engineering dialogue. Share your actual operating parameters: applied axial/radial load (kN), maximum rotational speed (r/min), ambient and bearing seat temperature range (°C), hub material and fit tolerance (H7/k6 etc.), and any known vibration or misalignment conditions. Within 48 hours, our SKF-certified team will deliver a written assessment including ISO 281 L10 life calculation, recommended preload, grease replenishment interval, and dimensional verification report. For projects exceeding $50,000, we supply fully tested samples — because reliability is proven in your machine, not our lab.
