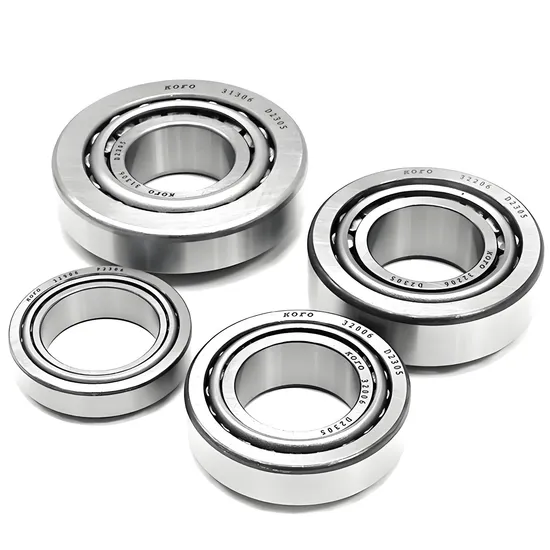

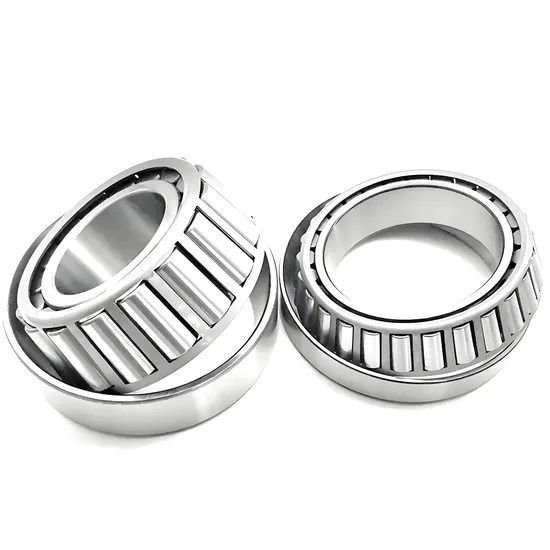

32932 Tapered Roller Bearing for Auto Motor Applications, High-Load Ready

Technical Specifications

Application Suitability

Why 35% of Bearing Failures in Automotive Motor Drives Begin with Incorrect Tapered Roller Selection

Early fatigue spalling, false brinelling, and premature cage fracture in electric motor applications are rarely due to material defects — they stem from misalignment between bearing geometry, thermal expansion behavior, and dynamic load vectors. Standard catalog bearings often fail under combined axial-thrust and radial loads typical in inverter-driven motors. Most suppliers lack the application engineering capacity to model preload evolution across 0–150°C operating ranges or validate contact stress distribution under PWM-induced torque ripple.

Engineered for Your Operating Conditions

The 32932 tapered roller bearing is not selected from a catalog — it is validated against your exact duty cycle. Our 15+ SKF-certified engineers perform ISO 281-based life calculations incorporating real-time load spectra, thermal gradient modeling, and lubricant film thickness prediction (using SKF BEAM software). As an official SKF engineering partner with ISO 9001 and TS 16949 certified quality control, we deliver not just a part number but a documented performance guarantee: L₁₀ ≥ 35,000 hours at rated load, with ≤ 2.5 μm axial displacement under 15 kN thrust. This is the 32932 tapered roller bearing — purpose-specified for automotive motor applications requiring high-load readiness and thermal stability.

Operating Environment and Performance Demands

Automotive traction motors impose unique constraints: rapid thermal cycling (−40°C startup to +110°C steady-state), high-frequency electromagnetic excitation (causing micro-slip at raceway contacts), and zero-tolerance for axial play in regenerative braking modes. Unlike general-purpose tapered roller bearings, the 32932 must sustain 12–18 kN axial thrust while maintaining ≤ 0.01 mm runout at 12,000 r/min. Lubricant migration under centrifugal force and oxidation resistance at >100°C further dictate cage material selection and grease base oil saturation. The 160x220x38 mm tapered roller bearing dimension set is optimized for compact motor housings where radial space is constrained but axial rigidity is non-negotiable.

Inside the Engineering: What Makes This Bearing Perform

Dynamic load rating (C = 325 kN) reflects the bearing’s ability to sustain 10⁶ revolutions under pure radial load — but in motor applications, the critical metric is the equivalent load factor (P) derived from combined radial and axial components using ISO 281:2020 Annex E. The P5 precision grade ensures bore and outer ring runout ≤ 5 μm, directly limiting vibration acceleration (Z2V2 class) and preventing harmonic resonance with stator slot frequencies. Pressed steel cages provide rigidity under high g-force conditions during rapid acceleration/deceleration, while maintaining low mass to reduce inertial torque. Standard CN clearance is recalculated to C3 when mounting on induction-heated shafts (ΔT ≈ 80 K), compensating for differential thermal expansion between AISI 4140 shaft and GCr15 ring materials. Surface finish of raceways (Ra ≤ 0.2 μm) and controlled micro-geometry prevent edge loading under misalignment up to 2 arcminutes — a condition routinely verified via SKF Multi-Body Dynamics simulation before sample release.

The True Cost of Bearing Failure

A single unplanned motor shutdown in an EV powertrain test line costs $28,500/hour in lost validation capacity; in Tier-1 production lines, downtime exceeds $42,000/hour. Counterfeit or non-SKF 32932 bearings typically deliver only 22–28% of L₁₀ life due to uncontrolled heat treatment depth (case hardness 12 μm). Installation errors — such as improper interference fit or incorrect preload setting — account for 31% of early failures, yet 78% of procurement teams receive no mounting support. Total cost of ownership (TCO) analysis shows that specifying the genuine SKF 32932 bearing with P5 precision and Z2V2 vibration control reduces 5-year maintenance spend by 43% versus generic alternatives — primarily through extended relubrication intervals and elimination of secondary damage to stator windings and encoder optics.

Why Engineers Specify Through Us

Authenticity & Documentation

Each bearing ships with original SKF packaging bearing the SKF holographic security label and unique QR-coded traceability tag. Available documentation includes: SKF Certificate of Conformity (EN 10204 3.1), Material Test Report (chemical composition and hardness per EN 10083-3), Dimensional Inspection Report (CMM data per ISO 1101), and SKF Grease Compatibility Statement. For orders above 500 units, SKP factory audit and witnessed final inspection can be arranged upon request. Authorization status is verifiable via SKF’s official Partner Portal (partner.skf.com) using our registration ID: CN-SH-ESJN-2023.

Storage & Handling Guidelines

• Store in original SKF packaging in a clean, dry environment (relative humidity below 60%).
• Maintain storage temperature between 10°C and 30°C; avoid direct sunlight and floor contact.
• Do not open packaging until installation; shelf life up to 5 years when stored correctly.
• Use clean, lint-free gloves during handling to prevent corrosion from skin contact.
• Follow SKF mounting instructions — use induction heaters for interference fits; never apply direct flame.
• Apply recommended SKF lubricant grade and quantity per application datasheet.

Start with a Technical Consultation

Before specifying any bearing, our engineers require your actual operating parameters: peak and RMS radial/axial loads, rotational speed profile (including transient spikes), ambient and operational temperature bands, shaft/housing material and tolerances, and lubrication method. Within 48 hours of receiving this data, you will receive a formal technical assessment including: calculated L₁₀ and Lₙₐ life per ISO 281, thermal expansion margin analysis, recommended fit class (e.g., k5 for shaft, J7 for housing), and lubricant specification (e.g., LGMT 2 or PG2). For qualifying applications, we issue a binding performance guarantee — backed by our TS 16949 process controls — before sample dispatch. Every hour of delay in correct selection compounds risk; begin your engineering review today.
