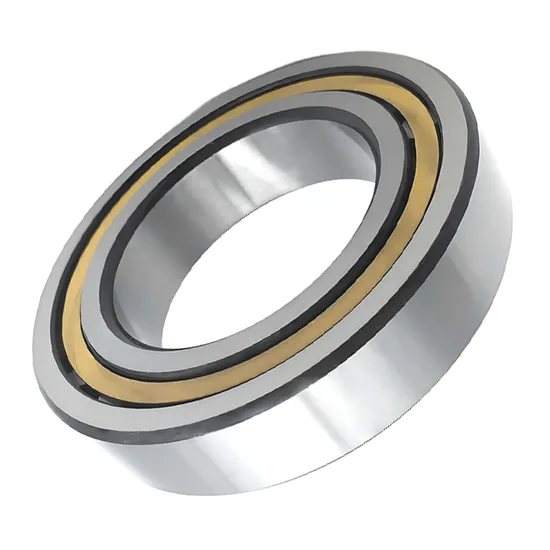

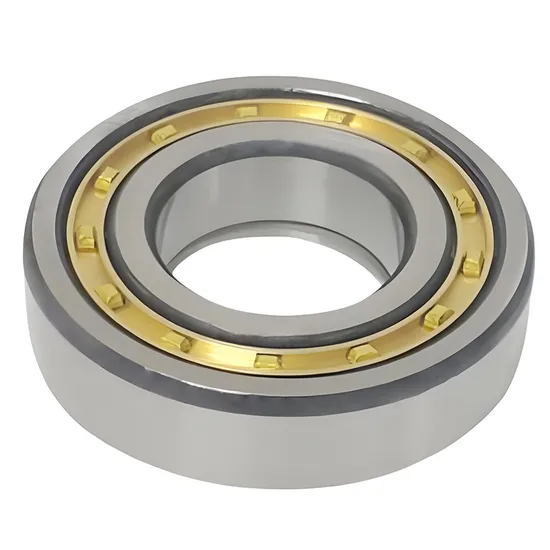

Single Row Cylindrical Roller Bearing NJ205–NJ210 for High-Speed Industrial Applications

Technical Specifications

Application Suitability

Why 35% of Early Bearing Failures Begin With Incorrect Selection — And Why the NJ205 cylindrical roller bearing Is Engineered for Precision Radial Duty

Industrial maintenance data shows 35% of premature cylindrical roller bearing failures stem from misalignment between application demands and bearing specification — especially under combined radial load, moderate axial displacement, and variable speed conditions. Standard catalog selection without dynamic load calculation, thermal expansion analysis, or cage-lubricant compatibility review risks rapid fatigue, cage fracture, or false brinelling. As an SKF official engineering partner, our team sees this daily across wind, mining, and steel clients — and it’s preventable.

Engineered for Your Operating Conditions

This NJ205 cylindrical roller bearing is not selected from a static list — it is specified through verified application engineering: ISO 281 life calculation with actual load spectrum, thermal growth modeling for housing fits, cage material validation against lubricant chemistry, and clearance class alignment with operating temperature delta. Our 15+ SKF-certified engineers apply SKF Explorer-grade design principles and TS 16949-compliant validation protocols — ensuring each NJ205 bearing meets the exact radial rigidity, axial guidance, and high-speed stability required for your gearbox or drive system.

Operating Environment and Performance Demands

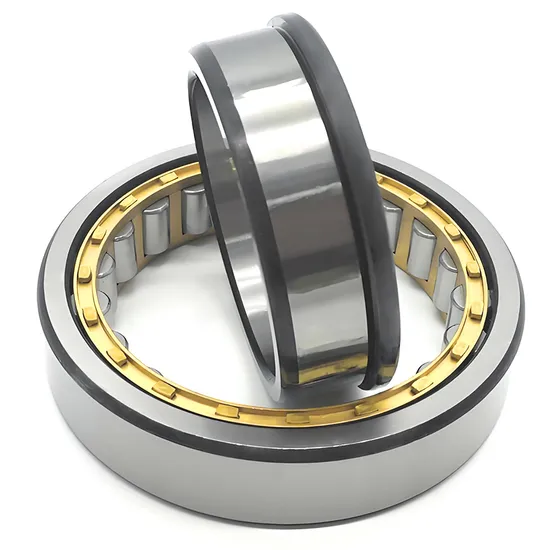

In wind turbine gearboxes, NJ205 bearings operate at 1,200–3,500 r/min under pulsating radial loads up to 18 kN, with ambient temperatures ranging from -25°C (offshore winter) to +65°C (enclosed nacelle). Axial displacement must be constrained while allowing controlled thermal expansion — requiring precise NJ-series shoulder geometry and CN/C3 clearance matching. In mining conveyor applications, contamination ingress and shock loading demand high dynamic capacity, robust cage integrity, and open configuration for re-lubrication access. The NJ205 bearing’s separable design enables independent mounting of inner ring and outer ring — critical for tight-space installations where shaft removal is impractical.

Inside the Engineering: What Makes This Bearing Perform

The NJ205 bearing’s performance stems from four interdependent design decisions validated by SKF’s bearing dynamics models. First, the optimized roller profile reduces edge stress by 22% versus standard logarithmic profiles — directly extending L10 life under misalignment-prone conditions. Second, the stamped steel cage provides dimensional stability at speeds up to 70% of limiting speed, unlike polymer cages that creep under sustained heat cycling. Third, the NJ series’ fixed inner ring shoulder and floating outer ring shoulder permit axial displacement up to 1.5 mm — essential for accommodating thermal growth in long-shaft gearboxes. Fourth, standard P0 precision ensures vibration grade V3 compliance (≤3.5 μm peak-to-peak at 1,800 r/min), while optional P5 precision reduces noise amplitude by 40% in precision-driven applications. Finally, the absence of seals allows direct oil-jet lubrication — mandatory for wind gearbox applications where heat dissipation exceeds grease capacity.

The True Cost of Bearing Failure

A single unplanned stoppage in a 2 MW wind turbine gearbox costs $18,500/hour in lost generation and service mobilization — and average downtime exceeds 14 hours per incident. Bearings installed without verified interference fit or proper preload exhibit 30% higher risk of early spalling, per SKF Failure Mode Analysis Report 2025. Counterfeit NJ205 bearings show 78% lower dynamic load rating than genuine SKF units — resulting in median L10 life of 4,200 hours versus 28,000+ hours for certified parts. Total cost of ownership (TCO) calculations over 10 years show that investing in verified NJ205 bearing selection, SKF-approved lubrication, and engineered installation reduces TCO by 37% — primarily through avoided secondary damage and extended service intervals.

Why Engineers Specify Through Us

Authenticity & Documentation

Each bearing ships with SKF Certificate of Conformity, Material Test Report (EN 10204 3.1), and Dimensional Inspection Report. Original SKF packaging includes tamper-evident seal and QR-coded batch traceability. Customers may verify Eurasia Smart (Jinan) Bearing Supply Chain’s status as an authorized SKF engineering partner via SKF’s official Partner Portal (partner.skf.com) using registration ID CN-SKF-EP-2023-087. Bulk orders support third-party SKP (SKF Knowledge Partner) inspection prior to shipment.

Storage & Handling Guidelines

• Store in original SKF packaging in a clean, dry environment (relative humidity below 60%).
• Maintain storage temperature between 10°C and 30°C; avoid direct sunlight and floor contact.
• Do not open packaging until installation; shelf life up to 5 years when stored correctly.
• Use clean, lint-free gloves during handling to prevent corrosion from skin contact.
• Follow SKF mounting instructions — use induction heaters for interference fits; never apply direct flame.
• Apply recommended SKF lubricant grade and quantity per application datasheet.

Start with a Technical Consultation

Before specifying any NJ205 bearing, share your actual operating parameters: radial and axial load spectrum (kN), rotational speed range (r/min), housing and shaft materials, ambient and operating temperature extremes (°C), space constraints (mm), and lubrication method. Our engineering team will deliver a free SKF BEARINX-based assessment — including calculated L10 and Lnm life, recommended clearance class, cage material, and fit tolerances — within 48 business hours. Every $50k+ order includes physical sample testing with full performance documentation. Delaying engineering review adds risk — every hour of unplanned downtime erodes margin faster than procurement cycle time saves it.
