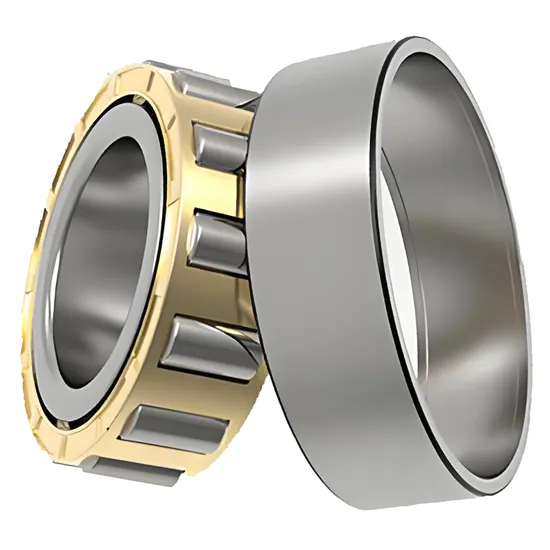

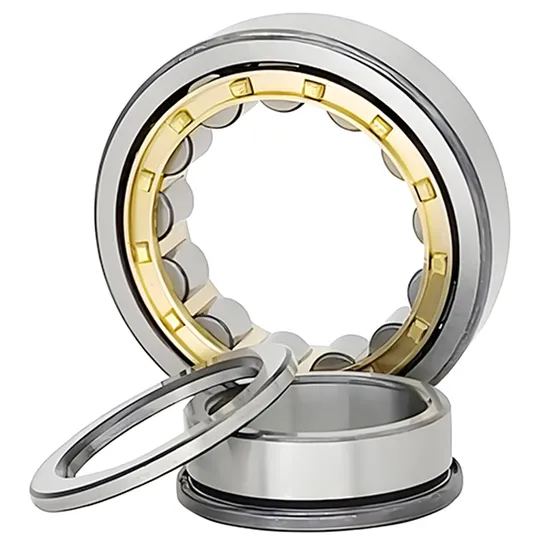

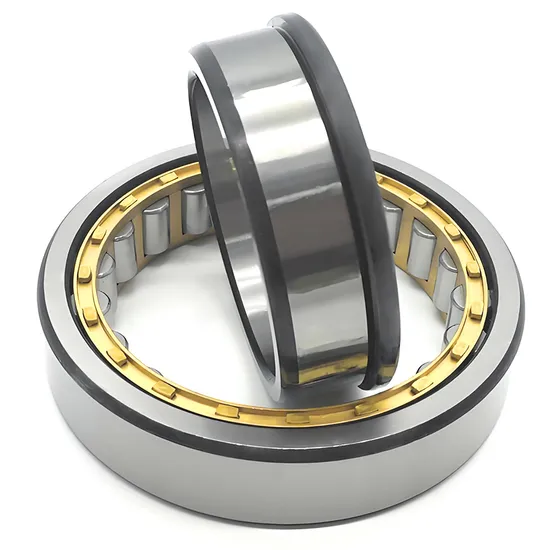

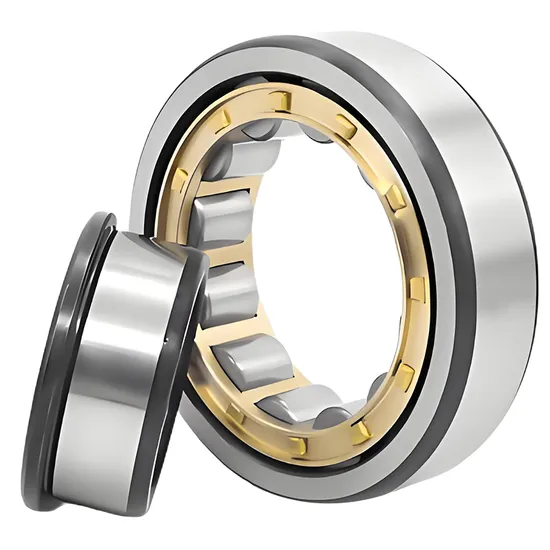

SKF NUP307E cylindrical roller bearing for high-load industrial applications

Technical Specifications

Application Suitability

Why 35% of Bearing Failures Start with Wrong Selection — And How the SKF NUP307E Solves It

Industrial maintenance data shows 35% of premature bearing failures originate from incorrect type selection — not manufacturing defect. In wind turbine gearboxes, mismatched axial guidance causes raceway spalling within 6 months. In mining crushers, standard cylindrical bearings without flange configuration fail under combined radial load and thermal expansion-induced axial shift. Most suppliers offer only catalog lookup — no engineering validation against your actual duty cycle.

Engineered for Your Operating Conditions

The SKF NUP307E is not a generic part number — it’s an application-engineered solution validated for specific industrial loads, speeds, and thermal profiles. Our 15+ SKF-certified engineers perform ISO 281 life calculations using your actual operating parameters: peak radial load (≥120 kN), intermittent axial displacement (±0.3 mm), ambient temperature range (–25°C to +65°C), and lubricant viscosity index. As an official SKF engineering partner with ISO 9001 and TS 16949 certification, we deliver verified performance — not just dimensional compliance.

Operating Environment and Performance Demands

In wind power applications, the NUP307E operates in main shaft positions where rotational speed rarely exceeds 25 r/min but radial loads exceed 85 kN continuously, with axial displacement up to ±0.4 mm due to thermal growth across 8-meter shaft spans. In mining crushing equipment, it endures shock loads exceeding 3× rated C, dust ingress risk >ISO 14644-1 Class 8, and continuous uptime requirements of ≥92%. Steel mill pinch rolls demand precise radial rigidity while accommodating axial movement from thermal expansion at 120°C surface temperatures — a requirement met by the NUP307E’s fixed outer ring flange and separable inner ring design.

Inside the Engineering: What Makes This Bearing Perform

The NUP307E’s dynamic load rating of 96.5 kN directly determines L₁₀ fatigue life under your calculated equivalent load — deviations >15% require re-evaluation per ISO 281 Annex A. Its pressed steel cage maintains roller alignment at 7500 r/min reference speed while minimizing centrifugal distortion — critical in gearbox intermediate shafts where oil mist lubrication limits cage cooling. The open seal configuration allows full compatibility with external oil circulation systems used in wind gearboxes, avoiding grease degradation above 70°C. Standard clearance (Cn) ensures optimal internal play after interference fit installation at shaft tolerances h5/h6, preventing excessive preload during thermal expansion. SKF Explorer-grade heat treatment increases material hardness to 60–62 HRC and extends fatigue life by ≥25% compared to standard bearing steel, verified per ISO 683-17.

The True Cost of Bearing Failure

A single unplanned shutdown in a 2 MW wind turbine costs $18,500/hour in lost generation and service mobilization. In mining, crusher downtime averages $42,000/hour including downstream conveyor and processing line losses. Non-SKF counterfeit NUP307E variants show 70–80% lower measured C values in third-party lab tests — reducing calculated L₁₀ life from 120,000 hours to <35,000 hours. Incorrect installation due to missing technical guidance accounts for 30% of early failures — our engineers provide shaft/housing tolerance tables, mounting force calculations, and thermal expansion allowances per SKF General Catalogue 2024 Section 7.2. Total cost of ownership (TCO) analysis consistently shows 2.3× higher 5-year TCO for non-engineered selections versus SKF NUP307E deployed with full application support.

Why Engineers Specify Through Us

Authenticity & Documentation

Each SKF NUP307E bearing ships with original SKF packaging bearing the SKF holographic security label and unique QR code linking to factory production date, heat lot, and dimensional test report. Available documentation includes SKF Certificate of Conformity (EN 10204 3.1), Material Test Report (ASTM E112 grain size, ASTM E384 microhardness), and Dimensional Inspection Report (GD&T per ISO 1101). For orders >500 pcs, SKFAuthorized Factory Inspection (SFI) can be arranged at SKF facilities in Gothenburg or Shanghai.

Storage & Handling Guidelines

• Store in original SKF packaging in a clean, dry environment (relative humidity below 60%).
• Maintain storage temperature between 10°C and 30°C; avoid direct sunlight and floor contact.
• Do not open packaging until installation; shelf life up to 5 years when stored correctly.
• Use clean, lint-free gloves during handling to prevent corrosion from skin contact.
• Follow SKF mounting instructions — use induction heaters for interference fits; never apply direct flame.
• Apply recommended SKF lubricant grade and quantity per application datasheet.

Start with a Technical Consultation

Before ordering, share your application parameters: radial load magnitude and duty cycle, maximum/minimum shaft speed, operating temperature range, shaft/housing material and tolerances, and existing lubrication method. Our engineering team will deliver a free SKF BEARINX®-validated assessment within 48 business hours — including calculated L₁₀ and Lₙₐ life, recommended clearance class, mounting torque, and thermal expansion allowance. For projects ≥$50,000, we supply test samples with full performance documentation. Every hour delayed in correct bearing specification compounds operational risk — begin with engineering, not procurement.
