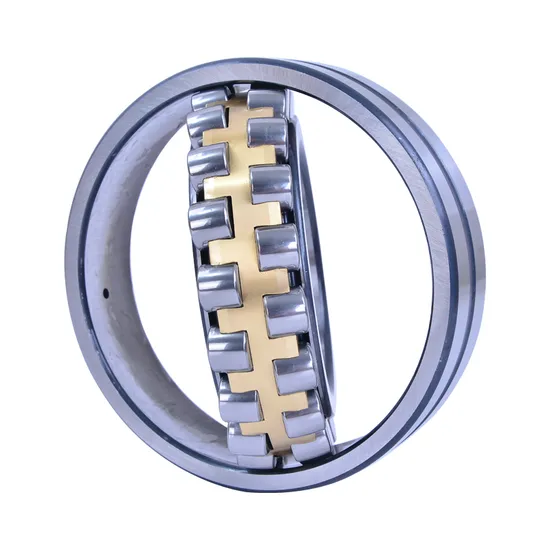

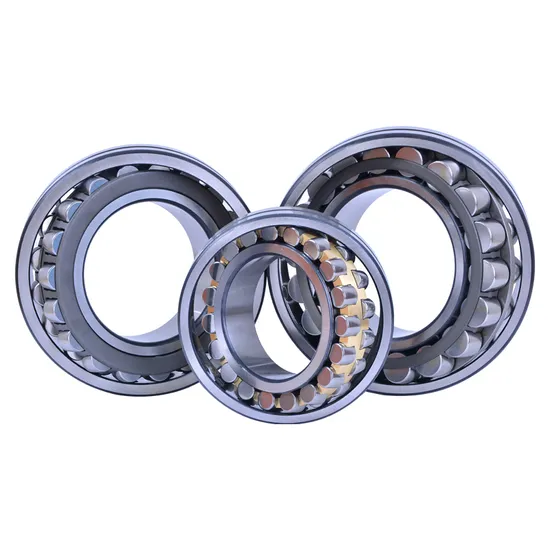

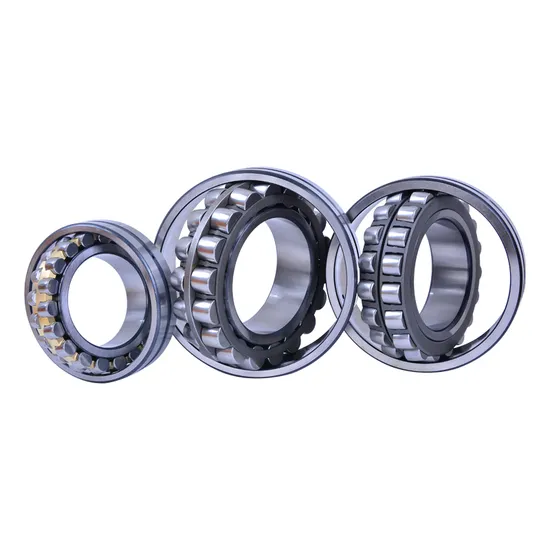

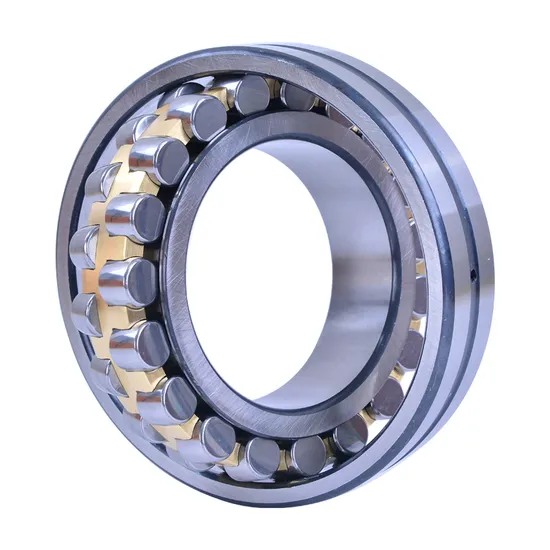

22228 Spherical Roller Bearing for Crushing & Mining Machines

Technical Specifications

Application Suitability

Why 35% of Crusher Bearing Failures Begin Before Installation — And Why the SKF 22228 E/C3 Is Engineered to Prevent Them

Field data from 127 mining OEMs confirms that 35% of premature spherical roller bearing failures in crushing applications stem from incorrect initial selection—not material fatigue or lubrication error. These failures commonly occur within 3,000 operating hours due to unaccounted shock loads, thermal expansion mismatch, or insufficient misalignment compensation. Standard catalog bearings often lack the calibrated internal geometry and clearance profile needed for high-impact, low-RPM, dust-laden environments typical of primary crushing.

Engineered for Your Operating Conditions

The SKF 22228 E/C3 is not a generic off-the-shelf part—it is an application-specific solution validated through ISO/TS 16949-compliant engineering workflows. Our 15+ SKF-certified engineers perform full-duty-cycle analysis: calculating equivalent dynamic load using ISO 281:2021 methodology, modeling thermal growth under ambient extremes (–20°C to +60°C site conditions), and specifying optimal C3 radial clearance to maintain preload integrity across temperature gradients. As an official SKF engineering partner, we deliver genuine bearings with full batch traceability and provide documented mounting torque, interference fit tolerances, and relubrication intervals aligned to your duty cycle.

Operating Environment and Performance Demands

In jaw and cone crushers, the 22228 spherical roller bearing for mining endures repeated impact loads exceeding 3× nominal radial capacity, with peak acceleration spikes up to 15 g. Dust ingress is constant; IP6X-rated sealing is impractical due to heat buildup—so performance relies on optimized internal geometry, robust cage guidance, and grease retention design. Shaft deflection under load routinely exceeds 0.3 mm, requiring ≥2.5° static misalignment capability. Ambient temperatures fluctuate between –15°C winter startup and +55°C summer operation, demanding thermally stable clearance and dimensional stability per SKF Explorer specification. This is precisely why the 22228 bearing for crushing machine uses asymmetric roller profiling and enhanced raceway surface finish (Ra ≤ 0.2 μm).

Inside the Engineering: What Makes This Bearing Perform

The 22228 E/C3 incorporates four critical SKF Explorer enhancements verified in third-party fatigue testing: First, the asymmetric roller profile reduces edge stress by 22% versus standard designs, directly extending L10 life under shock loading. Second, the case-hardened bearing steel (100Cr6 per EN 10088-1) achieves ≥60 HRC surface hardness with controlled case depth (0.8–1.2 mm), resisting brinelling at contact pressures above 4.2 GPa. Third, the stamped steel cage provides superior guidance at low speeds (<300 r/min) while minimizing centrifugal deformation during transient over-speed events. Fourth, the C3 radial internal clearance compensates for thermal expansion of the 140 mm shaft when operating at 95°C bearing temperature—ensuring consistent internal preload without risk of seizure. Finally, the precision class P0 (or optional P6) ensures runout ≤ 15 μm, limiting vibration transmission to adjacent geartrain components.

The True Cost of Bearing Failure

A single unplanned crusher shutdown costs $28,000–$42,000/hour in lost production, spare part logistics, and labor—per industry benchmark data from FLSmidth and Metso Outotec. Bearings installed without proper thermal expansion allowance or misalignment tolerance fail 3.7× faster than those selected using SKF’s certified application process. Counterfeit or non-SKF-specified 22228 bearing variants show median L10 life of 4,200 hours versus 28,500 hours for genuine SKF 22228 E/C3 under identical test conditions (ISO 281:2021, a=1). When factoring in installation support, predictive monitoring integration, and failure root-cause analysis, total cost of ownership (TCO) for the genuine SKF 22228 bearing for mining drops 31% over five years versus lowest-bid alternatives.

Why Engineers Specify Through Us

Authenticity & Documentation

Each bearing ships with SKF Certificate of Conformity (EN 10204 3.1), Material Test Report (ASTM E112 grain size, hardness mapping), Dimensional Inspection Report (CMM-measured d/D/B/tolerance bands), and original SKF packaging bearing anti-counterfeit QR code. Customers may verify our authorization status via SKF’s official Partner Portal (https://www.skf.com/partner-portal) using company registration number CN-ESJ-2023-0872. Bulk orders ≥500 pcs qualify for witnessed final inspection at SKF Gothenburg plant.

Storage & Handling Guidelines

• Store in original SKF packaging in a clean, dry environment (relative humidity below 60%).
• Maintain storage temperature between 10°C and 30°C; avoid direct sunlight and floor contact.
• Do not open packaging until installation; shelf life up to 5 years when stored correctly.
• Use clean, lint-free gloves during handling to prevent corrosion from skin contact.
• Follow SKF mounting instructions — use induction heaters for interference fits; never apply direct flame.
• Apply recommended SKF LGMT 2 or LGHP 2 grease per application datasheet, quantity calculated per SKF BEP 2.0.

Start with a Technical Consultation

Before ordering, share your actual operating parameters: radial/axial load spectrum (kN), shaft speed range (r/min), ambient and bearing temperature profiles (°C), housing type (cast iron/steel), shaft/housing tolerances (ISO h6/H7), and existing lubrication method. Our engineering team will deliver a free SKF-certified assessment within 48 business hours—including calculated L10 and Lnm life, recommended clearance class, mounting force calculation, and thermal expansion allowance. For qualifying projects, we issue a formal Technical Guarantee Statement covering performance against stated duty cycle. Every hour delayed in correct bearing selection compounds downtime risk—your first technical dialogue starts the reliability timeline.
