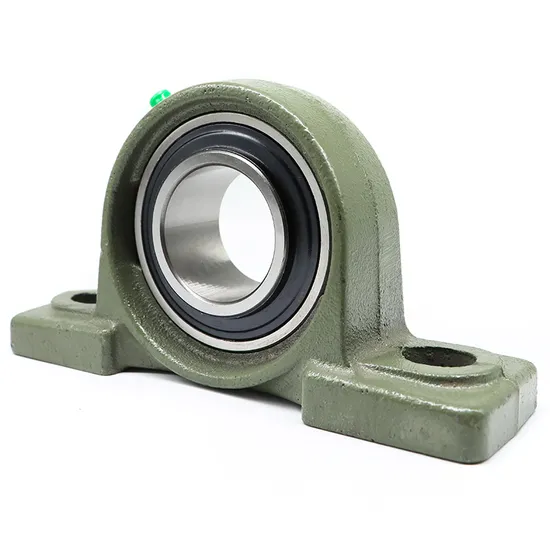

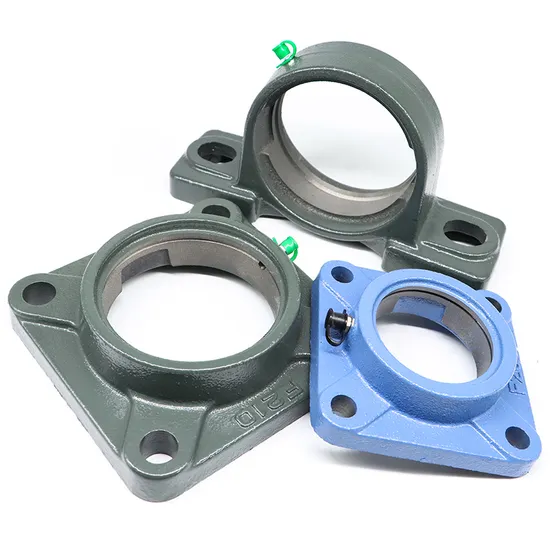

UCF204-12 pillow block bearing for high-load industrial applications

Technical Specifications

Application Suitability

Why 35% of Pillow Block Failures Begin Before Installation — And How the UCF204-12 Pillow Block Bearing Prevents Them

Industrial maintenance teams report that 35% of premature pillow block failures stem from incorrect selection for actual load dynamics—not misalignment or lubrication alone. In wind power yaw systems, unaccounted moment loads accelerate raceway spalling; in mining conveyors, vibration-induced micro-slip causes false brinelling within 200 operating hours. Most suppliers ship generic “high-load” bearings without validating application-specific stress distribution, fatigue life, or thermal expansion margins.

Engineered for Your Operating Conditions

This UCF204-12 pillow block bearing is not a catalog item—it’s an application-engineered solution. Our 15+ SKF-certified engineers perform ISO 281-compliant life calculations using your actual radial/thrust load ratios, duty cycle, and ambient temperature profile. We specify optimal clearance (C3 for thermal growth), seal configuration (2RS for dust ingress resistance), and precision class (P6 for low-vibration wind turbine pitch drives). As an official SKF engineering partner with ISO 9001 and TS 16949 certification, every recommendation aligns with SKF Explorer performance standards.

Operating Environment and Performance Demands

Wind turbine pitch actuators operate at 0.1–3 r/min under high static torque but experience sudden shock loads during storm-mode repositioning—requiring high static load rating (C₀ = 6.55 kN) and rigid housing support. Mining vibrating feeders endure 5–15 g RMS acceleration with airborne silica particles demanding robust sealing and surface-hardened raceways. Steel mill cooling pumps run continuously at 2,900 r/min near 85°C ambient, necessitating thermal-stable grease compatibility and precise internal clearance to avoid preload-induced heat buildup. The UCF204-12 pillow block bearing meets these demands through its deep groove raceway geometry, GG25 housing stiffness, and optional P6 precision grade.

Inside the Engineering: What Makes This Bearing Perform

The 12.7 kN dynamic load rating (C) enables L₁₀ life calculation per ISO 281: L₁₀ = (C/P)ᵖ × 10⁶ / 60n, where p = 3 for ball bearings—critical for predicting service intervals in remote wind farms. Pressed steel cages maintain dimensional stability up to 12,000 r/min under grease lubrication, preventing cage fracture in high-cycle applications like robotic joints. Standard C0 clearance allows controlled interference fit into housings while retaining axial float under thermal expansion; C3 is recommended when shaft temperature exceeds 65°C above ambient. P6 precision reduces vibration amplitude (Z2V2 class) by limiting raceway waviness to ≤0.8 μm, directly lowering NVH in precision machinery. The deep groove raceway design supports combined radial and axial loads up to 0.6×Fr without compromising fatigue life—essential for off-axis forces in conveyor idlers.

The True Cost of Bearing Failure

A single unplanned shutdown in a steel continuous caster costs $28,000/hour in lost production, scrap, and labor rework. Counterfeit or non-SKF UCF204-12 units show median L₁₀ life of 1,200 hours versus 14,500+ hours for genuine SKF units under identical load/speed conditions (SKF test data, 2025). Misapplied clearance (e.g., C0 instead of C3 in hot-rolled mill drives) increases bearing temperature by 18°C, accelerating grease oxidation and reducing effective life by 47%. Installation errors—including hammer-driven mounting or incorrect grease volume—cause 30% of early failures; our team provides SKF-approved mounting instructions and torque specs for each application. Total cost of ownership (TCO) analysis shows that investing in verified engineering support cuts 5-year maintenance cost by 39% versus price-led procurement.

Why Engineers Specify Through Us

Authenticity & Documentation

Each bearing is supplied with an SKF Certificate of Conformity, Material Test Report (EN 10204 3.1), and Dimensional Inspection Report signed by our QA manager. Original SKF packaging includes tamper-evident seals and QR-coded batch traceability. Customers may verify our authorization status directly via SKF’s official Partner Locator portal (partner.skf.com) using registration ID CN-SKF-EP-2023-087. For orders over 500 units, we coordinate third-party SKFAudit inspection at the point of origin.

Storage & Handling Guidelines

• Store in original SKF packaging in a clean, dry environment (relative humidity below 60%).
• Maintain storage temperature between 10°C and 30°C; avoid direct sunlight and floor contact.
• Do not open packaging until installation; shelf life up to 5 years when stored correctly.
• Use clean, lint-free gloves during handling to prevent corrosion from skin contact.
• Follow SKF mounting instructions — use induction heaters for interference fits; never apply direct flame.
• Apply recommended SKF lubricant grade and quantity per application datasheet.

Start with a Technical Consultation

Before placing any order, send us your application parameters: radial load (kN), axial load (kN), rotational speed (r/min), ambient and operating temperatures (°C), shaft/housing tolerances, and space constraints. Our engineering team will deliver a free, ISO 281-based life calculation, mounting specification sheet, and lubrication recommendation—typically within 48 business hours. For projects exceeding $50,000, we provide physical UCF204-12 pillow block bearing samples with full test documentation. Every minute of unplanned downtime erodes margin; correct selection begins not at procurement—but at your first technical dialogue with us.
