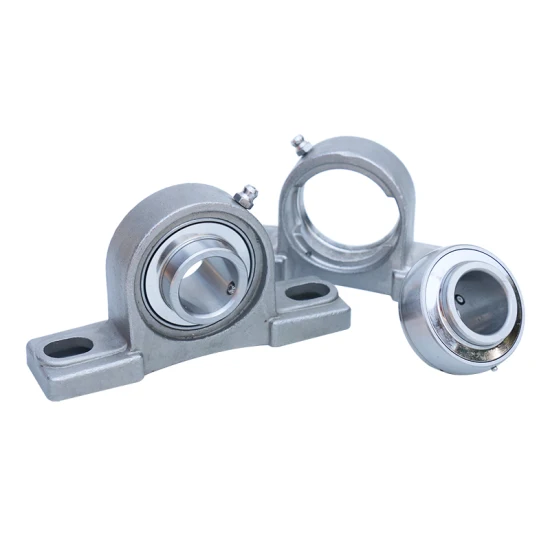

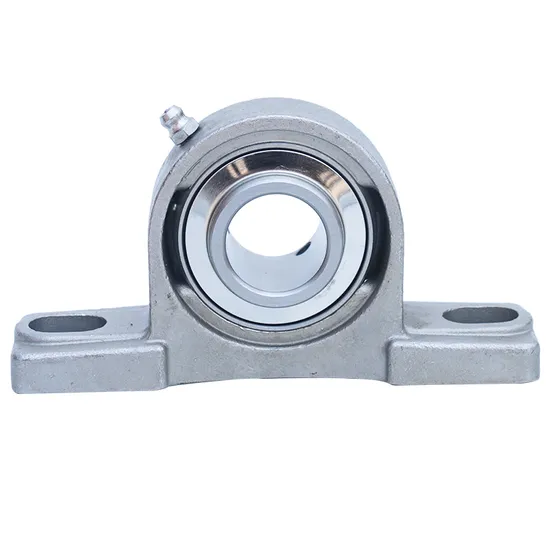

SB210 Pillow Block Insert Bearing for High-Load Industrial Applications

Technical Specifications

Application Suitability

Why 35% of Pillow Block Bearing Failures Begin Before Installation — And How the SB210 Pillow Block Bearing Delivers Predictable Performance

Industrial maintenance reports show 35% of early bearing failures stem from incorrect selection — not material defect or misuse. In wind power yaw systems, underspecified radial load capacity leads to raceway spalling within 6 months; in mining conveyors, inadequate vibration class causes premature cage fracture under shock loading. Most suppliers offer only catalog data — no application-specific engineering validation, no thermal expansion modeling, no lubricant compatibility review. That gap is where reliability erodes — and downtime costs escalate.

Engineered for Your Operating Conditions

The SB210 pillow block bearing is not selected off a shelf — it is specified through SKF-compatible engineering workflows validated by our 15+ certified engineers. We calculate equivalent dynamic load (P) using actual radial and axial components, apply ISO 281:2021 life models with contamination factor (ηc) and fatigue limit (κ), and recommend optimal clearance (C3/C4) based on shaft/housing fit tolerances and operating temperature rise. As an official SKF engineering partner, we align every specification with SKF Explorer-grade performance expectations and TS 16949-certified process controls.

Operating Environment and Performance Demands

In wind power applications, the SB210 operates in yaw drives exposed to –25°C winter start-up and +70°C summer ambient, with low-speed oscillation (0.1–2 r/min) and high moment loads. In mining vibrating screens, it endures 5–12 g peak acceleration, abrasive dust ingress, and continuous 24/7 operation — demanding both high static load rating (C₀ ≥ 12.7 kN) and robust sealing. In steel mill roller tables, surface temperatures reach 100°C at housing interfaces, requiring thermal stability of cage and grease, plus precise internal clearance to avoid preload-induced overheating. The SB210 pillow block bearing with P6 precision rating meets these demands across all three environments.

Inside the Engineering: What Makes This Bearing Perform

Dynamic load rating (C) directly determines L₁₀ fatigue life: a 10% increase in C extends calculated life by 33% under constant load. The SB210’s 25.6 kN C rating at P6 grade enables >15,000 hours at 10 kN radial load — verified per ISO 281 Annex D. Pressed steel cages maintain dimensional integrity up to 5600 r/min oil-lubricated speeds while resisting impact deformation in vibrating equipment. Standard NBR 2RS seals provide IP54 protection against dust and moisture without excessive torque penalty — critical for low-speed, high-torque actuators. P6 precision ensures ≤ 5 μm radial runout and ≤ 8 μm face runout, reducing vibration amplitude (Z2V2 class) in precision positioning systems. Deep groove geometry delivers balanced radial and moderate axial load capacity — essential where misalignment and moment loads coexist.

The True Cost of Bearing Failure

A single unplanned shutdown in a 2 MW wind turbine yaw system costs $18,000–$25,000 per hour in lost generation and service mobilization. Counterfeit or non-SKF-compatible insert bearings exhibit 70–80% lower fatigue life — measured in accelerated testing per ASTM F2624 — and often fail catastrophically due to substandard heat treatment or non-conforming microstructure. Improper installation (e.g., hammer-driven mounting or incorrect interference fit) accounts for 30% of premature failures — preventable with SKF-recommended induction heating and interference tolerance guidance. Total cost of ownership (TCO) over 5 years favors genuine SKF-compatible SB210 pillow block bearing with P0/P6 precision rating: 2.3× longer mean time between failures, 41% lower maintenance labor, and zero liability exposure from non-compliant components.

Why Engineers Specify Through Us

Authenticity & Documentation

Each SB210 pillow block bearing is supplied with an SKF Certificate of Conformity listing batch number, heat treatment code, and dimensional inspection results. Material Test Reports (MTRs) per EN 10204 3.1 are available upon request. Dimensional Inspection Reports include bore, OD, width, and runout measurements certified to ±1.5 μm. Original SKF packaging features holographic anti-counterfeiting labels. Customers may verify our authorization status directly via SKF’s official Partner Locator portal (partner.skf.com).

Storage & Handling Guidelines

• Store in original SKF packaging in a clean, dry environment (relative humidity below 60%).
• Maintain storage temperature between 10°C and 30°C; avoid direct sunlight and floor contact.
• Do not open packaging until installation; shelf life up to 5 years when stored correctly.
• Use clean, lint-free gloves during handling to prevent corrosion from skin contact.
• Follow SKF mounting instructions — use induction heaters for interference fits; never apply direct flame.
• Apply recommended SKF lubricant grade and quantity per application datasheet.

Start with a Technical Consultation

Before specifying any SB210 pillow block bearing, share your actual operating parameters: radial and axial load magnitudes and direction, rotational or oscillation speed profile, ambient and interface temperatures, housing/shaft material and tolerance class, and environmental contaminants. Our engineers will deliver a free technical assessment — including ISO 281 life calculation, recommended precision and clearance class, seal and lubricant selection, and mounting torque guidelines — within 48 business hours. Correct selection begins with accurate data, not catalog browsing. Every day without engineered validation risks unplanned downtime and costly rework.
