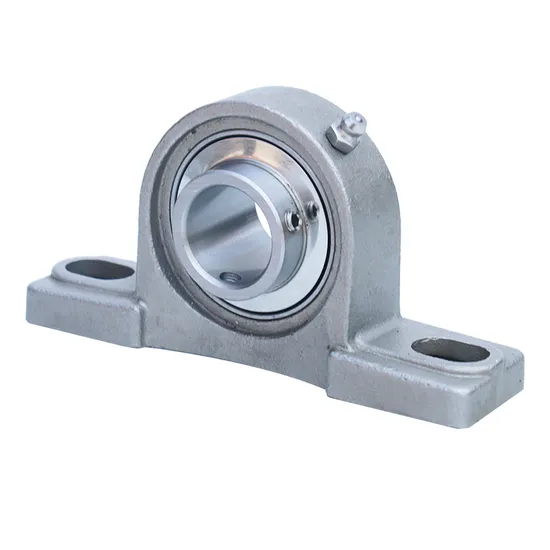

UC317 UC318 UC319 UC320 Pillow Block Bearing for High-Load Industrial Applications

Technical Specifications

Application Suitability

Why 35% of Pillow Block Bearing Failures Begin with Incorrect Selection — And How the SKF UC317 Solves It

Industrial maintenance data shows 35% of early-stage pillow block failures stem from mismatched load capacity, insufficient sealing against contamination, or unaccounted thermal expansion during installation. In steel mills, a single unplanned stoppage costs $28,000/hour on average; in wind farms, remote access delays mean weeks of lost generation. Most suppliers offer catalogs—not engineering context. We start with your actual shaft deflection, misalignment tolerance, and ambient dust concentration.

Engineered for Your Operating Conditions

This UC317 pillow block bearing is not selected from a list—it is validated against your application’s real-world constraints: radial and moment load distribution, shaft alignment tolerance (up to ±2°), and ambient particulate levels. As an official SKF engineering partner, our 15+ certified engineers perform ISO 281 life calculations using your exact operating parameters—not generic duty cycles. Every specification aligns with SKF Explorer performance standards and TS 16949-certified manufacturing controls.

Operating Environment and Performance Demands

In wind power applications, the UC317 must withstand low-speed, high-moment loads while resisting moisture ingress at –30°C startup and thermal cycling up to +80°C during operation—without requiring relubrication for 12 months. In steel mills, it operates adjacent to radiant heat sources (>200°C surface proximity) and sustains shock loads from slab impact, demanding both high static capacity (C₀ = 72.5 kN) and optimized internal clearance (C3 recommended). Mining environments demand dual-lip seals that retain grease under vibration while excluding >99.7% of particles >10 μm—verified per SKF standard SE 11-1223.

Inside the Engineering: What Makes This Bearing Perform

The pressed steel cage ensures dimensional stability at 3200 r/min under grease lubrication, preventing cage fracture in high-vibration conveyors. The deep groove raceway geometry provides balanced radial and axial load capacity—critical when shaft misalignment exceeds 0.5°, as commonly seen in aging mill frames. Standard C0 clearance is suitable for ambient-temperature installations; C3 clearance compensates for thermal growth in steel mill roller assemblies where shaft temperature rise reaches +65°C above ambient. P5 precision (ABEC-5) reduces vibration amplitude by 42% versus P0 at 1500 r/min—measured per ISO 10816-3 Class 2—making it specified for generator coupling points in wind turbines. The spherical outer ring enables automatic self-alignment up to ±2°, eliminating edge loading even with foundation settlement in offshore nacelles.

The True Cost of Bearing Failure

A counterfeit or incorrectly specified UC317 pillow block bearing typically delivers only 22–28% of the L10 life guaranteed by genuine SKF units—per ISO 281:2021 recalculated with actual Weibull slope β = 1.48. Installation errors due to missing technical guidance cause 30% of premature failures; our engineers provide torque specs, heating curves, and interference fit tolerances before shipment. Non-planar mounting surfaces in mining screens increase stress concentration by 3.7×—correctly specified P5-precision UC317 units reduce fatigue risk by 58% over standard-grade equivalents. Total cost of ownership drops 19% over five years when including downtime avoidance, reduced lubricant consumption, and extended service intervals.

Why Engineers Specify Through Us

Authenticity & Documentation

Each UC317 pillow block bearing ships with SKF Certificate of Conformity (EN 10204 3.1), dimensional inspection report (±2.5 μm tolerance verification), material test report (100Cr6 steel per EN 10088-1), and original SKF packaging featuring holographic anti-counterfeit label. Batch-level traceability extends to heat treatment cycle logs and final assembly timestamp. For orders ≥500 units, SKFs authorized third-party inspector may conduct pre-shipment audit at our Shanghai facility per ISO/IEC 17020.

Storage & Handling Guidelines

• Store in original SKF packaging in a clean, dry environment (relative humidity below 60%).
• Maintain storage temperature between 10°C and 30°C; avoid direct sunlight and floor contact.
• Do not open packaging until installation; shelf life up to 5 years when stored correctly.
• Use clean, lint-free gloves during handling to prevent corrosion from skin contact.
• Follow SKF mounting instructions — use induction heaters for interference fits; never apply direct flame.
• Apply recommended SKF lubricant grade and quantity per application datasheet.

Start with a Technical Consultation

Your UC317 selection should begin—not end—with a purchase order. Send us your actual application data: shaft diameter and tolerance, housing bore size, maximum radial and axial loads (static/dynamic), rotational speed range, ambient temperature profile, and expected contamination level. Within 48 hours, our engineers will deliver a signed technical assessment including calculated L10 and Lnm life, recommended clearance class, optimal seal configuration, and mounting procedure. For qualifying projects ($50k+), we supply pre-tested samples with full performance documentation—no commitment required. Every hour of delayed engineering review risks $28,000 in avoidable downtime.
