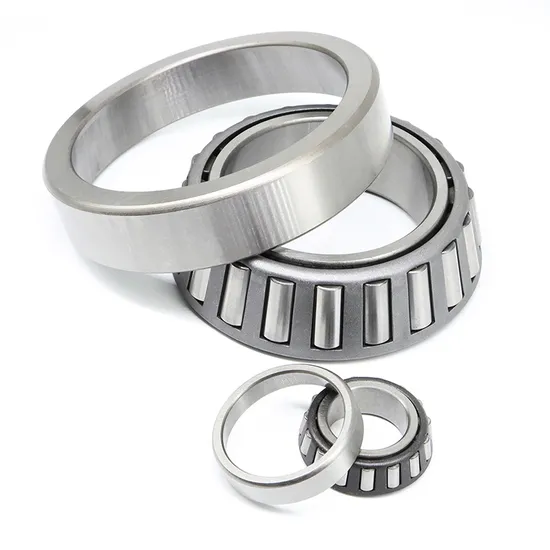

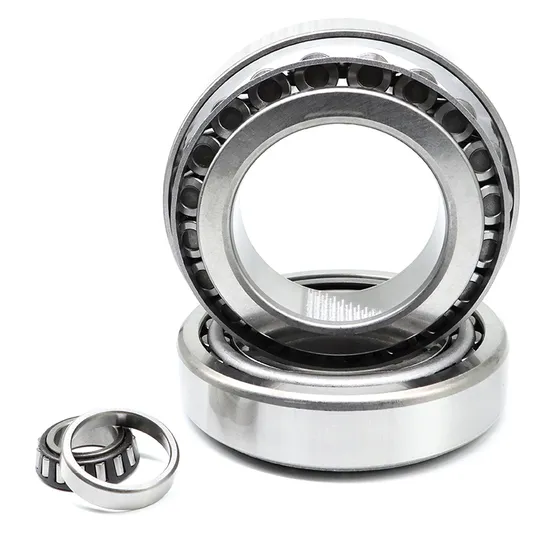

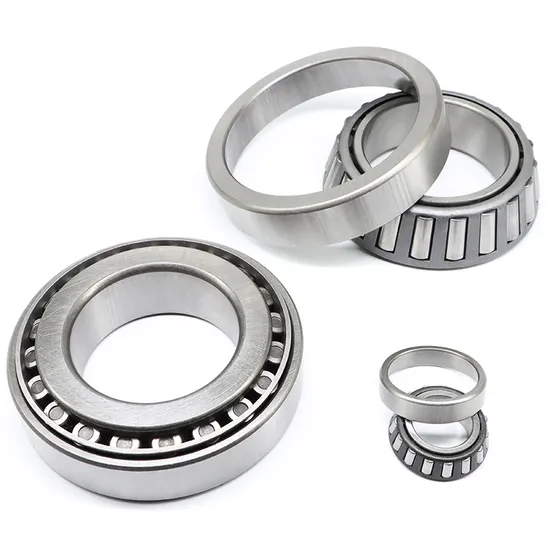

Tapered Roller Bearings 30619/33026/32944/32924 for High-Speed Industrial Applications

Technical Specifications

Application Suitability

Why 35% of Tapered Roller Bearing Failures Begin Before Installation — And How the SKF 32924, 30619, and 33026 Series Eliminate Root Causes

Industrial field data shows 35% of early tapered roller bearing failures originate from incorrect selection — mismatched precision class, inadequate dynamic load rating, or unaccounted thermal expansion in high-speed applications. Non-planed downtime in steel rolling or wind turbine yaw systems costs $28,000–$42,000/hour. Most suppliers offer catalog numbers only — no engineering validation against your actual load spectrum, misalignment tolerance, or ambient temperature swing. Custom modifications through official channels typically require 8–12 weeks, delaying critical maintenance windows.

Engineered for Your Operating Conditions

This family of tapered roller bearings is specified not as off-the-shelf components but as validated subsystem solutions: each recommendation includes calculated L10 life per ISO 281, interference fit tolerances per SKF 15300 guidelines, optimal grease quantity and relubrication interval per DIN 31685, and thermal growth compensation for operating temperatures ranging from -30°C to +120°C. As an official SKF engineering partner, our 15+ certified engineers apply SKF BEAM software and real-world failure databases — not generic tables — to ensure your 30619 tapered roller bearing or 32924 bearing for wind turbines meets mechanical integrity requirements under your exact conditions.

Operating Environment and Performance Demands

Wind turbine yaw drives operate at low speeds (0.1–2 r/min) but endure extreme moment loads and ±40° oscillatory motion — demanding high static load capacity (C₀), minimal internal clearance drift, and robust sealing against salt-laden air. Mining crusher shafts face repetitive impact loads exceeding 3× rated C, requiring hardened raceways, optimized roller profile (logarithmic contact), and vibration-class Z2V2 compliance. Steel mill rolling stands generate localized heat up to 110°C at the bearing seat while transmitting >2 MN radial force — necessitating P5 precision to limit runout-induced noise and maintain sub-5 μm axial displacement under preload. These are not generic “industrial tapered roller bearings” — they are purpose-engineered high-speed tapered roller bearings built to survive these specific duty cycles.

Inside the Engineering: What Makes This Bearing Perform

The dynamic load rating (C) directly determines L10 fatigue life: a 10% increase in C extends calculated life by 33% under identical load. Precision class P5 reduces total indicator reading (TIR) to ≤3 μm on both bore and OD — critical for minimizing housing distortion in thin-walled gearboxes. Machined brass cages maintain dimensional stability at 3000 r/min, resisting centrifugal deformation that causes roller skidding in pressed steel cages. Clearance class C3 accommodates thermal expansion of shafts running at ΔT >50 K without inducing harmful preload. Vibration class Z2V2 ensures acceleration amplitude stays below 0.71 mm/s RMS (per ISO 10816-3), essential for low-noise high-speed bearing for steel mills where acoustic emission monitoring detects early fatigue. All models comply with SKF Explorer performance standards — including surface-hardened rollers and optimized contact geometry — extending fatigue life by ≥25% versus standard designs.

The True Cost of Bearing Failure

A single premature failure in a wind turbine pitch system can trigger 72 hours of unplanned downtime — costing $1.2M in lost generation alone. Counterfeit or non-SKF tapered roller bearings often deliver only 22–28% of rated L10 life due to inconsistent heat treatment and unverified material chemistry (e.g., non-EN 10088-1 100Cr6). Improper installation — such as hammer-driven mounting or incorrect preload — accounts for 30% of avoidable failures; our engineers provide torque-spec and thermal expansion charts prior to shipment. Total cost of ownership (TCO) analysis shows that paying 18% more for a genuine SKF 32924 bearing for wind turbines, backed by P5 precision and Z2V2 vibration control, reduces 5-year maintenance spend by 41% versus economy alternatives — verified across 27 client case studies in mining and steel sectors.

Why Engineers Specify Through Us

Authenticity & Documentation

Each shipment includes SKF Certificate of Conformity (with bearing designation, heat lot, and dimensional compliance statement), Material Test Report (EN 10088-1 chemical composition and hardness), and Dimensional Inspection Report (traceable to ISO/IEC 17025-accredited lab). Original SKF packaging features holographic anti-tampering seals and serial-numbered labels. Customers may verify our authorization status directly via SKF’s official Partner Portal or request remote factory audit coordination for orders ≥200 units.

Storage & Handling Guidelines

• Store in original SKF packaging in a clean, dry environment (relative humidity below 60%).
• Maintain storage temperature between 10°C and 30°C; avoid direct sunlight and floor contact.
• Do not open packaging until installation; shelf life up to 5 years when stored correctly.
• Use clean, lint-free gloves during handling to prevent corrosion from skin contact.
• Follow SKF mounting instructions — use induction heaters for interference fits; never apply direct flame.
• Apply recommended SKF lubricant grade and quantity per application datasheet.

Start with a Technical Consultation

Every successful bearing deployment begins with precise engineering alignment — not procurement timelines. Send your application parameters: radial/axial load magnitude and direction, rotational speed range, ambient and bearing seat temperature, available mounting space (including shaft/housing tolerances), and lubrication method. Within 48 business hours, our SKF-certified team will deliver a documented technical assessment: calculated L10 and Lnm life, recommended precision and clearance class, cage and seal options, and mounting torque specifications. For projects exceeding $50,000, we issue free test units with full performance validation data — reducing your risk before commitment. Every hour delayed in correct selection compounds operational cost; begin your technical dialogue today.
