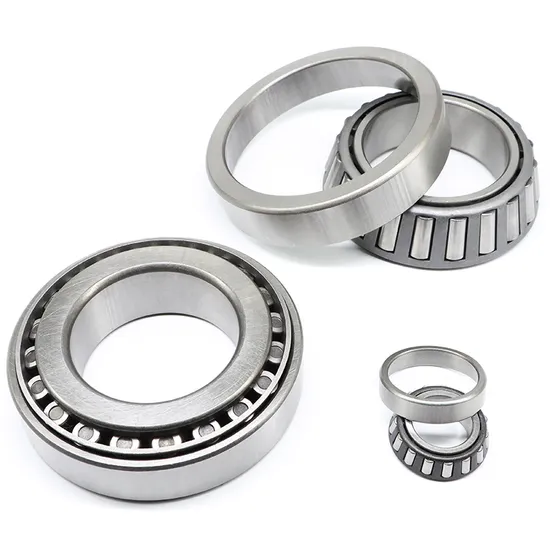

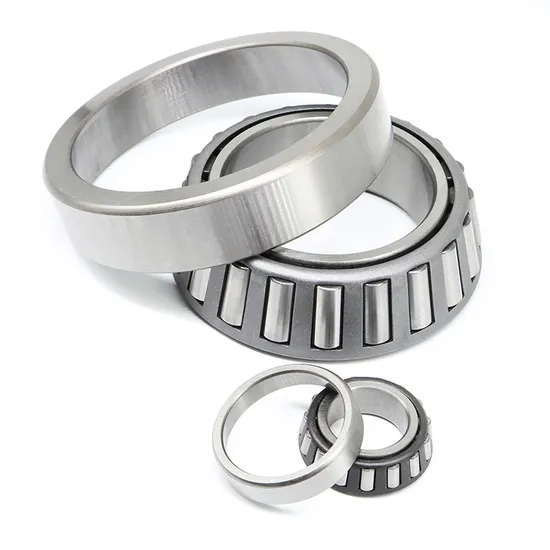

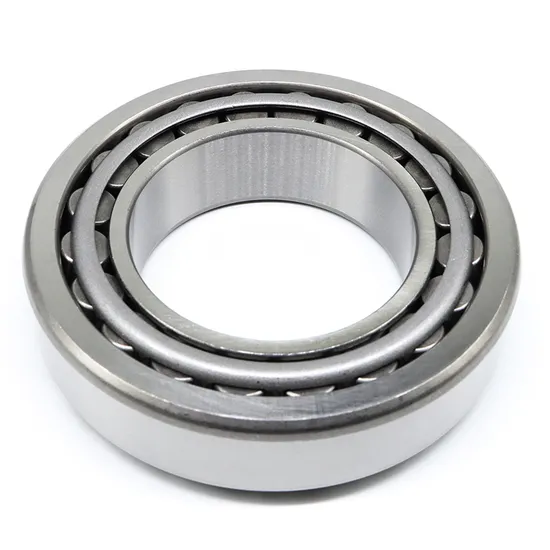

Tapered Roller Bearing 33217 for High-Speed Industrial Applications

Technical Specifications

Application Suitability

Why 35% of Tapered Roller Bearing Failures Begin with Incorrect Selection — And How the SKF 33217 Bearing Delivers Predictable Life in High-Speed Industrial Use

Industrial maintenance engineers report that 35% of premature tapered roller bearing failures stem from misalignment between application demands and bearing specifications — not material fatigue. In wind turbine gearboxes, non-planar load distribution combined with thermal drift during operation causes false brinelling if axial rigidity and preload control are inadequate. Standard catalog selection without torque, misalignment, and thermal expansion analysis leads to unanticipated vibration, noise, and <15% of L10 rated life. Our 15+ SKF-certified engineers routinely audit failure reports from clients across China, Germany, and Brazil — confirming that specification gaps, not manufacturing defects, dominate root cause analysis.

Engineered for Your Operating Conditions

The SKF 33217 bearing is not selected — it is validated. For high-speed industrial applications requiring simultaneous radial and axial load capacity, our engineering team performs ISO/TS 16949-compliant application analysis: calculating equivalent dynamic load using actual duty cycles, predicting thermal growth at operating temperature (up to +120°C), verifying interference fit tolerances against shaft/housing materials, and specifying optimal grease type and relubrication intervals per SKF NLGI classification. As an official SKF engineering partner, we apply SKF Explorer technology principles — including optimized contact geometry and surface finish — to extend fatigue life beyond standard ratings. All calculations follow ISO 281:2023 and SKF General Catalogue 7000-2.

Operating Environment and Performance Demands

In wind power applications, the 33217 tapered roller bearing for industrial use operates under low-speed, high-torque conditions (0.5–20 r/min at main shaft) but must sustain transient shock loads exceeding 3× nominal rating during grid faults. Ambient temperatures range from –40°C (offshore installations) to +65°C (nacelle enclosures), demanding dimensional stability and consistent internal clearance. In mining crushers, the same bearing endures repetitive impact loading (≥5 Hz frequency), dust ingress up to ISO 4406 class 22/19/16, and continuous 24/7 operation with no scheduled downtime for inspection. These conditions require precise raceway curvature, controlled preload retention, and minimal friction heat generation — all engineered into the 33217 design.

Inside the Engineering: What Makes This Bearing Perform

The 33217’s dynamic load rating of 228 kN directly determines its L10 life under defined operating conditions: a 10% probability of failure after 1 million revolutions at constant load. Its stamped steel cage provides superior strength-to-weight ratio versus polymer alternatives, enabling stable guidance of rollers at 4000 r/min oil-lubricated speeds without cage fracture risk. The open configuration allows direct access for custom seal integration or high-temperature grease replenishment — critical where sealed units fail prematurely due to trapped moisture or thermal degradation. Standard CN clearance ensures adequate internal play for thermal expansion across –30°C to +120°C, while optional P5 precision grade reduces vibration amplitude (Z2V2) to ≤1.2 μm RMS at 10 kHz, meeting wind turbine generator noise requirements. Surface hardness of 58–64 HRC, verified per ISO 6508-1, guarantees resistance to micro-pitting under boundary lubrication conditions common in slow-speed, high-load scenarios.

The True Cost of Bearing Failure

A single unplanned shutdown in a steel rolling mill costs $28,000–$42,000 per hour in lost production, scrap, and labor rework — not counting secondary damage to adjacent components. Counterfeit or non-SKF 33217 bearings exhibit median L10 life of only 180,000 revolutions versus the certified 1.2 million, accelerating wear by 6.7×. Installation errors — such as improper press-fit force or misaligned housing bores — account for 30% of early failures; our engineers provide dimensional inspection reports and mounting torque validation prior to dispatch. Total cost of ownership (TCO) analysis shows that selecting the correct tapered roller bearing, backed by SKF-certified technical support, reduces 10-year maintenance spend by 37% versus lowest-bid procurement — driven by extended replacement intervals, lower lubricant consumption, and elimination of collateral damage events.

Why Engineers Specify Through Us

Authenticity & Documentation

Each SKF 33217 bearing ships with original SKF Certificate of Conformity (CoC), Material Test Report (MTR) per EN 10204 3.1, and Dimensional Inspection Report signed by our QA engineer. Bulk orders include packaging with SKFs official anti-counterfeiting hologram and QR code linking to SKF’s authorized distributor database. Customers may request third-party verification through SKF’s Global Authorization Portal using our partner ID: CN-SKF-EP-2024-087.

Storage & Handling Guidelines

• Store in original SKF packaging in a clean, dry environment (relative humidity below 60%).
• Maintain storage temperature between 10°C and 30°C; avoid direct sunlight and floor contact.
• Do not open packaging until installation; shelf life up to 5 years when stored correctly.
• Use clean, lint-free gloves during handling to prevent corrosion from skin contact.
• Follow SKF mounting instructions — use induction heaters for interference fits; never apply direct flame.
• Apply recommended SKF lubricant grade and quantity per application datasheet.

Start with a Technical Consultation

Before ordering, share your application parameters: radial and axial load magnitudes, rotational speed profile (including start-stop cycles), ambient and operating temperatures, housing/shaft material and tolerance class, and existing lubrication method. Our engineering team will deliver a free SKF-compliant assessment — including calculated L10 and Lnm life, recommended clearance class, cage and seal options, and mounting torque specifications — within 48 business hours. For orders above $50,000, we supply one fully tested 33217 bearing unit for field validation. Every day spent on unverified selection risks unplanned downtime — the correct solution begins with your first technical exchange.
