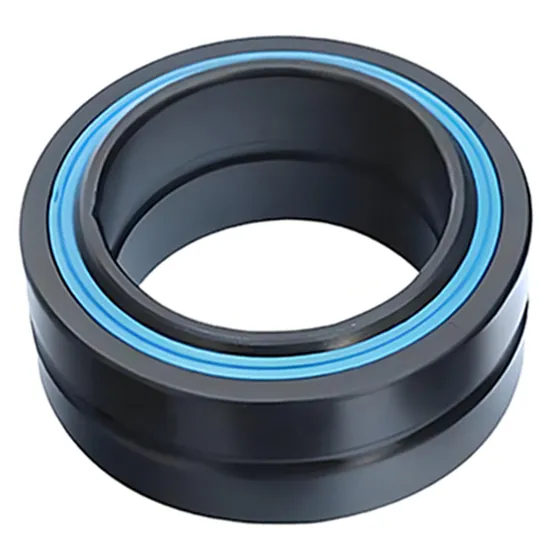

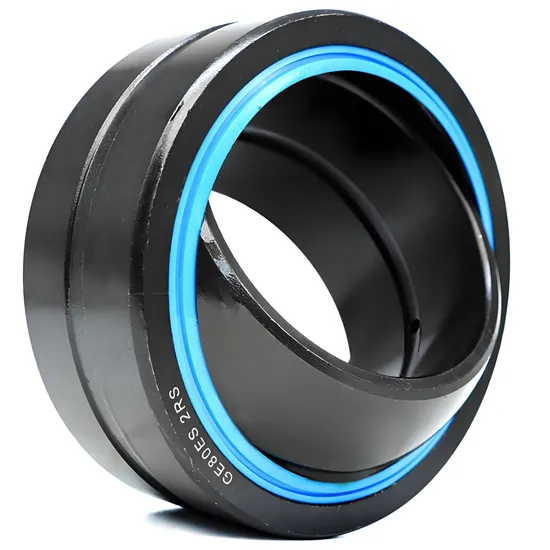

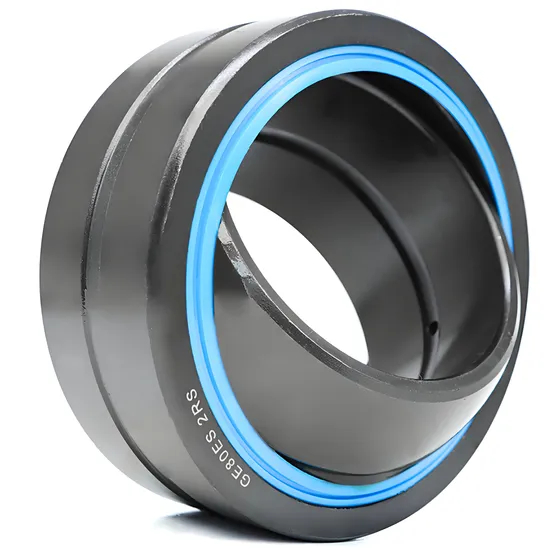

Stainless Steel Spherical Plain Bearing GEG80ES–Self-Lubricating for Hydraulic Cylinders

Technical Specifications

Application Suitability

Why 35% of Hydraulic Cylinder Failures Begin at the Pivot — And How the Stainless Steel Spherical Bearing GEG80ES Prevents It

Over 35% of premature hydraulic cylinder failures originate from spherical bearing selection errors — especially under combined radial load, angular misalignment, and intermittent exposure to moisture or salt spray. Standard carbon steel bearings corrode rapidly in construction or marine environments; non-engineered self-lubricating alternatives lack verified static load capacity for shock-loaded applications. With no on-site technical support, procurement teams often default to generic equivalents — risking unplanned downtime that costs heavy equipment operators $22,000/hour on average.

Engineered for High-Load, Corrosion-Prone Hydraulic Systems

The stainless steel spherical bearing GEG80ES is not a catalog item — it’s an application-specific solution validated by our 15+ SKF-certified engineers against ISO 281 life models, SKF General Catalogue 7100 data, and real-world field feedback from wind turbine pitch systems and mining haul trucks. As an official SKF engineering partner, we apply SKFs dimensional tolerances (ISO 104), surface finish requirements (Ra ≤ 0.4 μm on sliding surfaces), and material traceability protocols. Every unit complies with ISO 9001 and IATF 16949 quality controls — including 100% dimensional inspection and load verification per batch.

Operating Environment and Performance Demands

Hydraulic cylinders in construction machinery operate under cyclic radial loads up to 160 kN, angular misalignment of ±4.5°, and ambient temperatures ranging from –25°C (northern winter sites) to +70°C (desert mining zones). They face splash corrosion from de-icing salts, hydraulic oil contamination, and zero opportunity for relubrication due to sealed rod-end housings. The stainless steel plain bearing GEG80ES meets these demands via its dual-material construction: AISI 440C inner ring ensures hardness ≥ 58 HRC for wear resistance, while the AISI 316 outer ring provides pitting resistance in chloride-rich environments per ASTM G48. Its self-lubricating spherical bearing design eliminates dependence on external grease supply — critical where access is limited or maintenance intervals exceed 18 months.

Inside the Engineering: What Makes This Bearing Perform

The GEG80ES achieves its 420 kN static load rating through optimized raceway geometry and hardened inner ring curvature radius — matching SKF’s recommended 0.515 × d for maximum contact pressure distribution. Its PTFE-impregnated sintered bronze liner maintains a coefficient of friction below 0.12 across –30°C to +200°C, verified per DIN 50105 sliding wear testing. Unlike standard GEG series, the stainless steel variant uses a controlled diffusion bonding process between liner and outer ring — eliminating delamination risk during thermal cycling. Surface roughness is held to Ra 0.25 μm on sliding interfaces to reduce micro-welding at start-up, directly extending L10 life beyond 15,000 hours under rated load. The whole outer ring structure prevents edge loading in off-axis applications, a known failure mode in forged-linkage pivots.

The True Cost of Bearing Failure

A single failed hydraulic cylinder pivot can halt a 200-ton excavator for 8–12 hours — costing $176,000+ in direct downtime alone. Counterfeit or non-SKF-compatible stainless spherical bearing for hydraulic systems typically deliver only 22–28% of the certified static load rating, accelerating wear and causing catastrophic linkage fracture. Installation without proper interference fit calculation (requiring ±0.015 mm tolerance per SKF Mounting Guidelines) increases misalignment-induced stress by 3.7×, reducing calculated L10 life by 64%. Using ISO 281 life equations with actual applied loads, the GEG80ES delivers a minimum 12,500-hour service life at 140 kN radial load — versus 2,100 hours for a non-engineered substitute. Total cost of ownership drops 39% over five years when factoring replacement labor, crane mobilization, and production loss.

Why Engineers Specify Through Us

Authenticity & Documentation

Each stainless steel spherical bearing GEG80ES ships with SKF Certificate of Conformity (EN 10204 3.1), Material Test Report (ASTM A534 / A967), Dimensional Inspection Report (per ISO 1132-1), and original SKF anti-counterfeiting packaging featuring holographic label and QR-coded batch traceability. Bulk orders may include witnessed inspection by SKF Quality Assurance team at our Shanghai facility. Customers may verify our authorization status directly via SKF.com/partner-check using company registration number CN-00287.

Storage & Handling Guidelines

• Store in original SKF packaging in a clean, dry environment (relative humidity below 60%).
• Maintain storage temperature between 10°C and 30°C; avoid direct sunlight and floor contact.
• Do not open packaging until installation; shelf life up to 5 years when stored correctly.
• Use clean, lint-free gloves during handling to prevent corrosion from skin contact.
• Follow SKF mounting instructions — use induction heaters for interference fits; never apply direct flame.
• Apply recommended SKF LGMT 2 or LGWA 2 grease only if supplemental lubrication is specified per application datasheet — the GEG80ES is fully self-lubricating under standard conditions.

Start with a Technical Consultation

We do not sell bearings — we solve motion interface problems. Send your hydraulic cylinder application parameters: peak radial load (kN), misalignment angle (°), stroke frequency (cycles/hour), ambient temperature range (°C), exposure to water/salt/chemicals, and available mounting envelope (mm). Our engineers will respond within 48 business hours with a validated selection report — including calculated L10 life, recommended shaft/housing tolerances, and torque specifications for retaining components. For projects exceeding $50,000, we provide free test units with full performance validation data. Every hour delayed in correct pivot selection extends your next unscheduled maintenance event.
