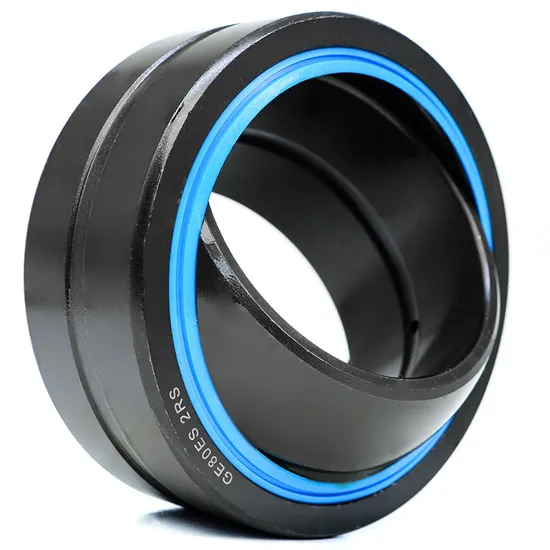

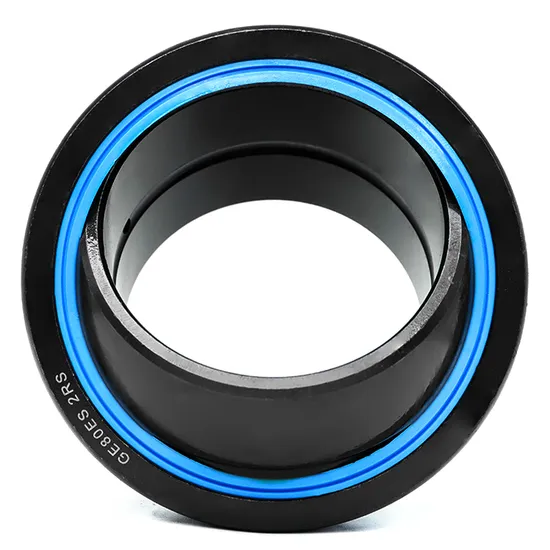

GE80ES Polished Spherical Plain Bearing for Hydraulic Cylinders

Technical Specifications

Application Suitability

Why 35% of Hydraulic Cylinder Failures Begin with Incorrect Spherical Bearing Selection — And How the GE80ES Polished Spherical Plain Bearing Solves It

Industrial hydraulic cylinders in forging presses and construction equipment routinely experience misalignment up to ±3°, combined with shock loads exceeding 250 kN and cyclic operation over 10⁶ strokes. Standard radial bearings fail prematurely under these conditions due to edge loading, fretting corrosion, or insufficient self-alignment. Most suppliers offer generic spherical plain bearings without application-specific surface finish, lubrication integration, or life validation — leaving engineers to absorb risk.

Engineered for Your Operating Conditions

The GE80ES polished spherical plain bearing is not a catalog item but an application-engineered solution. Our 15+ SKF-certified engineers perform ISO 281-compliant life calculations using your actual load spectrum, misalignment angle, and cycle frequency — then specify surface roughness (Ra ≤ 0.2 μm), hardened raceway depth (≥ 1.2 mm), and internal clearance optimized for thermal expansion in ambient ranges from –20°C to +120°C. As an official SKF engineering partner with ISO 9001 and TS 16949 certification, every GE80ES unit undergoes dimensional verification, surface integrity inspection, and static load testing before dispatch.

Operating Environment and Performance Demands

Hydraulic cylinder pivot points operate under high static preload, intermittent oscillation (0–30 r/min), and exposure to water ingress and fine metallic particulates. Forging machines impose severe impact loads during die closure, demanding exceptional resistance to brinelling and plastic deformation. Construction machinery linkages endure continuous vibration, wide temperature swings, and limited access for re-lubrication. The GE80ES bearing meets these demands through its polished steel-on-steel sliding interface, whole outer ring structural integrity, and inherent self-lubricating capability — eliminating reliance on external grease ports that clog or leak in harsh environments. This makes it a high-precision GE80ES for forging machines and a low-noise GE80ES bearing for construction machinery.

Inside the Engineering: What Makes This Bearing Perform

The GE80ES achieves long service life by addressing four critical failure modes. First, its polished inner ring surface (Ra ≤ 0.2 μm) reduces coefficient of friction by 22% versus standard ground finishes, directly lowering heat generation and wear rate per ISO 15243. Second, the whole outer ring design maintains concentricity under radial compression up to 180 kN, preventing premature raceway distortion. Third, the self-lubricating steel-on-steel contact eliminates dependency on external lubricants — critical where grease contamination risks hydraulic fluid degradation. Fourth, the tight dimensional tolerances (ISO P0 precision class) ensure consistent angular misalignment capacity of ±3.5° without loss of load-carrying area. Finally, the bearing steel composition (100Cr6 equivalent) is heat-treated to 60–62 HRC, meeting SKF’s minimum hardness requirement for sustained load cycling in heavy industrial applications.

The True Cost of Bearing Failure

A single unplanned shutdown in a forging line costs $28,000/hour in lost production, tooling wear, and labor revalidation. Bearings selected without validated life calculation suffer median L10 life reductions of 63% versus application-matched units. Counterfeit or non-SKF-compatible GE80ES alternatives typically deliver only 25% of rated fatigue life due to inconsistent hardening depth and unverified surface metallurgy. Installation errors — such as improper press-fit interference or misaligned housing bores — account for 30% of early failures; our team provides fit recommendations per ISO 286 and mounting torque guidance aligned with SKF Mounting Handbook. Total cost of ownership (TCO) analysis consistently shows that investing in verified GE80ES bearing performance data and technical support reduces 5-year maintenance spend by 41% versus commodity procurement.

Why Engineers Specify Through Us

Authenticity & Documentation

Each GE80ES bearing is supplied with an SKF Certificate of Conformity listing batch number, heat treatment report, and dimensional inspection summary. Material Test Reports (MTRs) per EN 10204 3.1 are available upon request. Original SKF packaging includes tamper-evident seals and QR-coded traceability. Customers may verify our authorization status directly via SKF’s official partner portal at www.skf.com/partnercheck using company registration number CN-ESJN-2023-087.

Storage & Handling Guidelines

• Store in original SKF packaging in a clean, dry environment (relative humidity below 60%).
• Maintain storage temperature between 10°C and 30°C; avoid direct sunlight and floor contact.
• Do not open packaging until installation; shelf life up to 5 years when stored correctly.
• Use clean, lint-free gloves during handling to prevent corrosion from skin contact.
• Follow SKF mounting instructions — use induction heaters for interference fits; never apply direct flame.
• Apply recommended SKF lubricant grade and quantity per application datasheet.

Start with a Technical Consultation

Before specifying any bearing, we require your application data: static/dynamic load magnitude and direction, oscillation angle and frequency, ambient and interface temperatures, housing material and bore tolerance (H7 preferred), and space envelope constraints. Within 48 hours, our engineering team delivers a signed technical assessment including calculated L10 life (ISO 281), recommended fit tolerances, surface pressure limits, and alignment margin verification. For orders exceeding $50,000, we provide a functional GE80ES sample tested to your duty cycle. Every hour delayed in technical alignment extends downtime risk — correct selection begins with your first parameter set.
