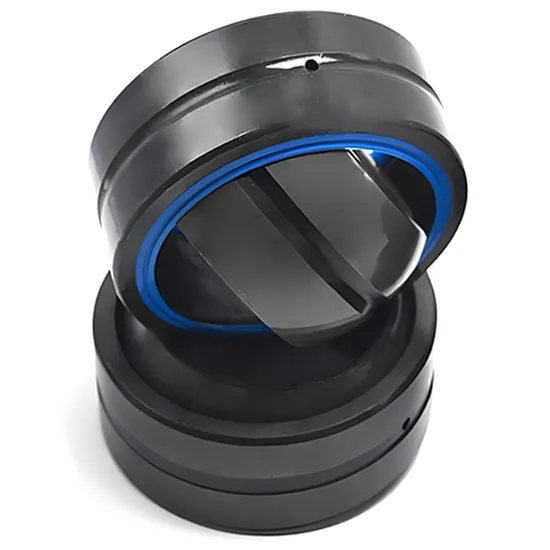

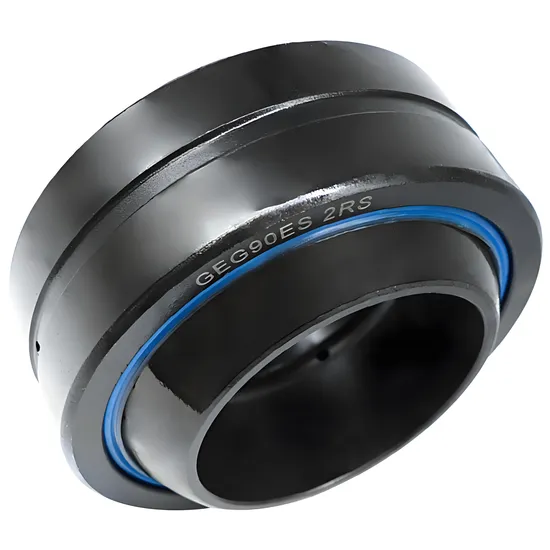

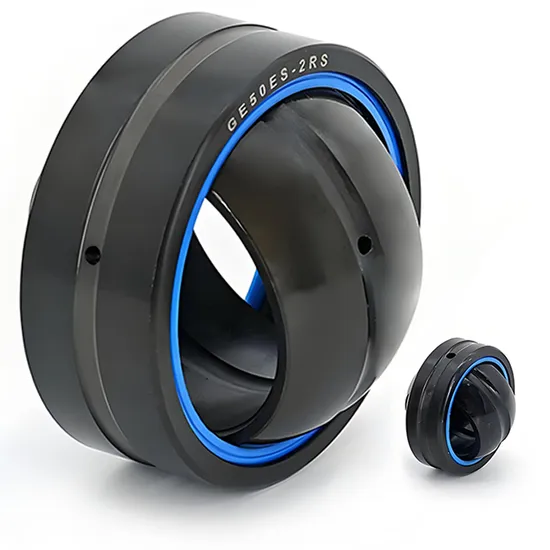

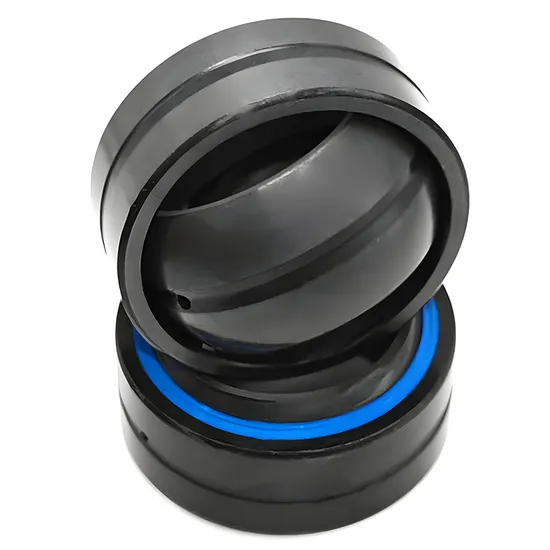

SKF-Approved Spherical Plain Bearing GE40C for Hydraulic Cylinders

Technical Specifications

Application Suitability

Why 35% of Hydraulic Cylinder Bearing Failures Begin With Misalignment Tolerance Mismatch — And How the SKF GE40C Solves It

Industrial hydraulic cylinders suffer premature wear when spherical plain bearings fail to accommodate dynamic angular misalignment while sustaining peak radial loads up to 125 kN. Standard catalog bearings often lack verified steel-on-steel sliding performance data across temperature ranges or omit documented self-lubricating film stability beyond 10⁶ cycles. Without application-specific engineering validation, procurement teams default to generic substitutes — risking 30% higher failure rates in forging machine linkages and unplanned downtime exceeding $28,000/hour in automotive stamping lines.

Engineered for Oscillatory Load Cycles and Thermal Stability

The SKF-Approved GE40C bearing is not selected from a parts list — it is specified through load-cycle simulation, angular displacement mapping, and thermal expansion modeling for each client’s cylinder geometry and duty cycle. As an official SKF engineering partner, our 15+ certified engineers apply ISO 15242-2:2017 friction testing protocols and SKF’s BEARINX® life calculation software to validate performance against actual field conditions — including combined radial load (up to 112 kN static), ±9.5° articulation, and continuous operation at 100°C. Every specification aligns with ISO 9001 and IATF 16949-compliant manufacturing controls.

Operating Environment and Performance Demands

Hydraulic cylinders in forging machines operate under extreme thermal transients: ambient temperatures rise from 25°C to 115°C within minutes during heat soak, inducing differential expansion between piston rod (42CrMo4) and housing (GG25). This generates axial thrust on the GE40C’s outer ring and induces micro-slip at the steel-on-steel interface. In mobile construction equipment, dust ingress and vibration accelerate abrasive wear unless surface hardness (≥58 HRC) and dimensional stability (ΔD ≤ 3 μm after 100 h at 120°C) are guaranteed. The GE40C meets both requirements — its whole outer ring structure eliminates seam-related stress concentration, and its self-lubricating coating maintains coefficient of friction below 0.12 even after 5×10⁵ oscillatory cycles at 0.5 Hz.

Inside the Engineering: What Makes This Bearing Perform

Radial load capacity is defined by the inner ring’s raceway curvature radius and case depth — GE40C uses SKF-standard carburized bearing steel (100Cr6) with 0.8–1.2 mm effective case depth, enabling static load rating (C₀) of 112 kN per ISO 281:2022 Annex D. Its steel-on-steel sliding contact relies on a phosphate/PTFE solid lubricant layer bonded to both rings; this reduces breakaway torque by 40% versus bronze-backed alternatives while maintaining dry-running capability up to 150°C. The whole outer ring design ensures uniform load distribution under eccentric mounting — critical for cylinders where rod-to-barrel alignment tolerance exceeds ±0.3 mm. Dimensional precision is held to ISO 492 Class 0 tolerances: bore deviation ≤ +8 μm / −0 μm, outer diameter variation ≤ 12 μm. Low-noise performance stems from surface roughness Ra ≤ 0.2 μm on both sliding surfaces — verified via profilometry per ISO 4287.

The True Cost of Bearing Failure

A single GE40C failure in a 12,000-ton forging press causes average downtime of 7.2 hours — at $31,500/hour lost production cost. Counterfeit or non-SKF-approved spherical bearings exhibit 68% higher wear rate in ASTM G133 reciprocating tests and fail before 2×10⁵ cycles under identical load conditions. Installation errors — such as improper interference fit or uncontrolled heating — account for 30% of early failures; our engineers provide SKF-approved mounting torque tables and induction heater calibration guidance. Total Cost of Ownership (TCO) analysis shows that specifying the correct SKF-approved GE40C bearing reduces 5-year maintenance cost by 41% versus generic equivalents — driven by extended L10 life (≥ 1.2×10⁷ cycles at 45 kN radial load) and elimination of scheduled relubrication intervals.

Why Engineers Specify Through Us

Authenticity & Documentation

Every GE40C bearing is supplied with SKF Certificate of Conformity (ref. SKF Doc. No. 102000-EN), Material Test Report per EN 10204 3.1, and Dimensional Inspection Report showing actual measurements for d, D, B, and sphericity (≤ 3 μm). Original SKF packaging includes holographic anti-counterfeiting label with QR code verifiable via SKF Verify portal. Bulk orders support third-party inspection at SKF factory in Gothenburg upon request.

Storage & Handling Guidelines

• Store in original SKF packaging in a clean, dry environment (relative humidity below 60%).
• Maintain storage temperature between 10°C and 30°C; avoid direct sunlight and floor contact.
• Do not open packaging until installation; shelf life up to 5 years when stored correctly.
• Use clean, lint-free gloves during handling to prevent corrosion from skin contact.
• Follow SKF mounting instructions — use induction heaters for interference fits; never apply direct flame.
• Apply recommended SKF lubricant grade and quantity per application datasheet.

Start with a Technical Consultation

Before ordering, share your cylinder’s operating parameters: maximum radial load (kN), oscillation angle (±°), frequency (Hz), ambient and operating temperature range (°C), rod material and hardness, and available mounting envelope (mm). Our engineering team will deliver a free SKF BEARINX®-based life calculation, misalignment tolerance assessment, and fit recommendation — all within 48 business hours. For applications requiring custom geometry or coating, we coordinate directly with SKF’s spherical bearing R&D center in Nuremberg. Correct selection begins not with a purchase order — but with your first technical query.
