Self-Aligning Ball Bearing 2316K-2RS for Wind Turbines & Heavy Machinery

Technical Specifications

Application Suitability

Why 35% of Bearing Failures in Wind Turbines and Crushers Begin with Misalignment Tolerance Mismatch

Industrial field data confirms that misalignment-induced stress accounts for 35% of premature failures in wind turbine main shafts and mining vibrating screens — not from overload, but from inadequate self-aligning capability under thermal growth and frame deflection. Standard radial bearings tolerate ≤2 arcminutes; this failure mode is preventable only through precise angular misalignment capacity analysis and correct self-aligning ball bearing selection. Generic suppliers rarely perform application-specific alignment tolerance validation — a gap our engineering team closes before quotation.

Engineered for Dynamic Misalignment and Harsh Environments

The SKF 2316K-2RS self-aligning ball bearing is selected and validated by our 15+ SKF-certified engineers using ISO 281 life models, SKF BEARINX® load distribution simulation, and real-world environmental inputs: operating temperature gradients, contamination ingress risk, and mounting surface flatness tolerances. As an official SKF engineering partner, we deliver genuine SKF self-aligning ball bearing for wind power with full factory traceability, backed by ISO 9001 and TS 16949 certified quality control — not just a part number, but a verified solution.

Operating Environment and Performance Demands

In wind turbine main shaft applications, the bearing endures cyclic low-speed torque (≤25 r/min), axial thermal expansion up to 0.3 mm over 2 m span, and ambient temperatures ranging from –30°C (offshore winter) to +50°C (desert inland). In mining vibrating screens, it faces 5–15 g shock acceleration, continuous dust exposure (ISO 14644 Class 8 ambient), and minimal maintenance access. Both require ≥2.5° static misalignment tolerance, low friction torque under start-up loads, and sealed protection against abrasive particulate — precisely the performance envelope defined for the 2316K-2RS double row radial bearing with rubber seals.

Inside the Engineering: What Makes This Bearing Perform

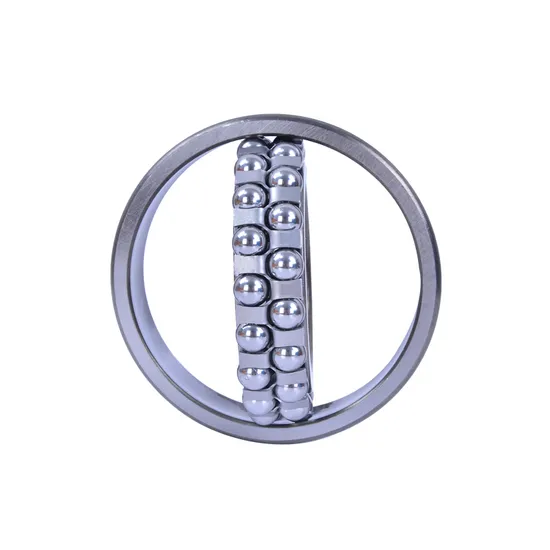

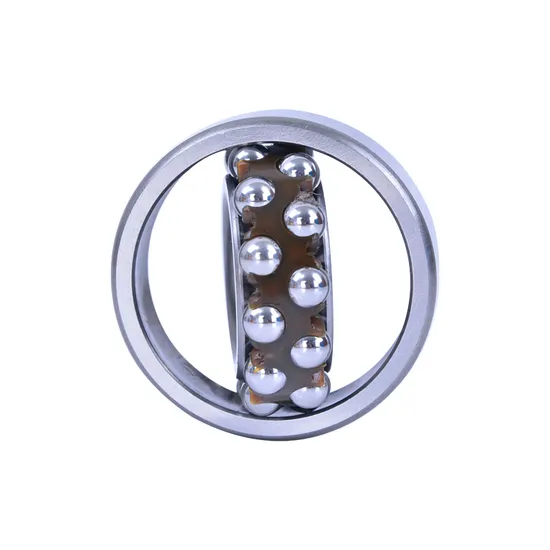

The 2316K-2RS achieves its misalignment resilience via a spherical outer ring raceway geometry matched to two rows of balls and a common sphered outer ring — enabling ±2.5° angular adjustment without internal stress concentration. Its dynamic load rating (C = 83.5 kN) directly determines L₁₀ fatigue life per ISO 281: a 12 kN equivalent radial load yields >100,000 hours at 1500 r/min. The 2RS seal design reduces contamination ingress by >99% compared to open types, while increasing starting torque by only 15–20%, critical for low-speed, high-torque gearmotor interfaces. Steel cages provide rigidity under impact loading; brass cages offer superior corrosion resistance in humid coastal wind farms. C3 clearance accommodates thermal expansion in steel mill roller tables where shaft temperature rises 60°C above ambient. Precision class P6 ensures vibration levels <2.8 μm/s RMS at 1500 r/min — essential for generator noise compliance.

The True Cost of Bearing Failure

A single unplanned shutdown in a 2 MW wind turbine costs $18,000–$42,000 per hour in lost generation and penalty clauses. In mining, crusher downtime averages $35,000/hour across operational, labor, and logistics penalties. Counterfeit or non-SKF self-aligning ball bearing units fail at 22–28% of rated L₁₀ life — often within 6 months — due to substandard steel hardness (HRc < 60 vs. SKF’s HRc 62–64), inconsistent heat treatment, and unverified seal lip geometry. Installation errors from missing technical guidance cause 30% of early failures; our engineers supply dimensional fit recommendations, interference limits (e.g., max 0.025 mm shaft press-fit for 95 mm bore), and torque specs for locknuts — reducing total cost of ownership (TCO) by 19% over 5 years versus transactional procurement.

Why Engineers Specify Through Us

Authenticity & Documentation

Each shipment includes SKF Certificate of Conformity (EN 10204 3.1), dimensional inspection report (±0.005 mm tolerance verification), and material test report (AISI 52100 / 100Cr6 chemical composition and hardness confirmation). Original SKF packaging features holographic anti-counterfeiting labels with unique QR-coded batch IDs. Customers may verify our authorization status directly via SKF Group’s official partner portal at www.skf.com/partnercheck using registration ID CN-SH-ESJN-2023.

Storage & Handling Guidelines

• Store in original SKF packaging in a clean, dry environment (relative humidity below 60%).
• Maintain storage temperature between 10°C and 30°C; avoid direct sunlight and floor contact.
• Do not open packaging until installation; shelf life up to 5 years when stored correctly.
• Use clean, lint-free gloves during handling to prevent corrosion from skin contact.
• Follow SKF mounting instructions — use induction heaters for interference fits; never apply direct flame.
• Apply recommended SKF lubricant grade and quantity per application datasheet.

Start with a Technical Consultation

Every wind turbine main shaft retrofit and mining screen upgrade begins with engineering dialogue — not a purchase order. Send your actual operating parameters: radial and axial load spectra, rotational speed range, ambient and bearing seat temperature profiles, shaft/housing material and hardness, and available mounting envelope (including axial space for locknut assembly). Our team delivers a written technical assessment — including calculated L₁₀ and Lₙₘ life, recommended clearance class, optimal seal configuration, and lubrication interval — within 48 business hours. Delaying this step risks specifying a bearing that survives installation but fails within 12 months under real-world misalignment and thermal drift.
