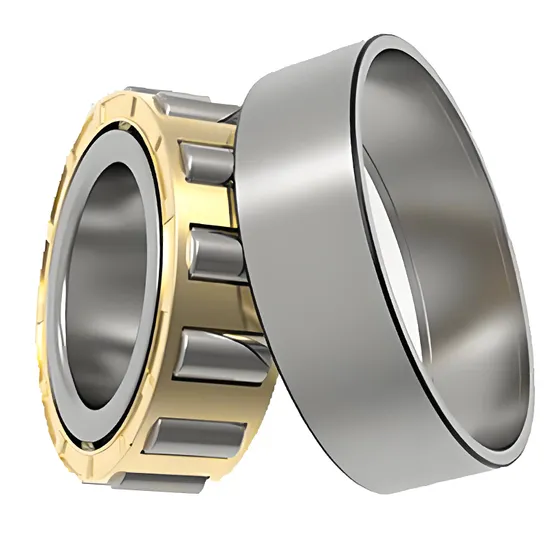

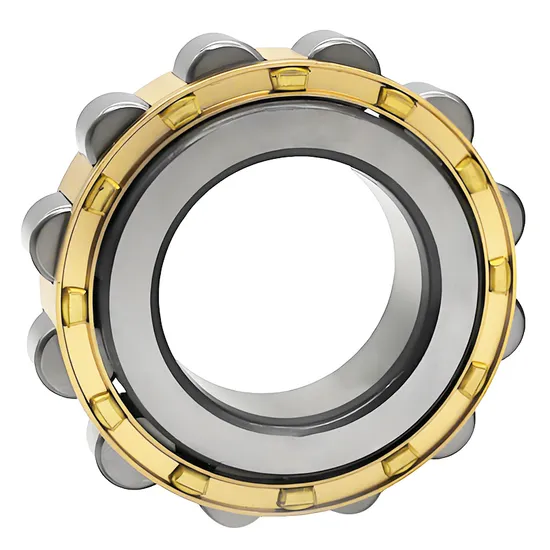

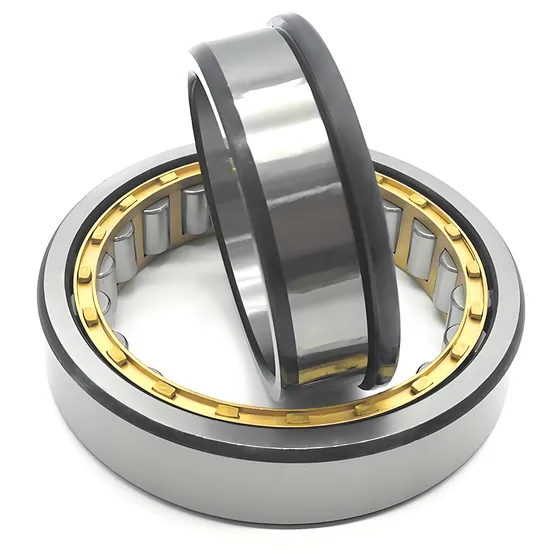

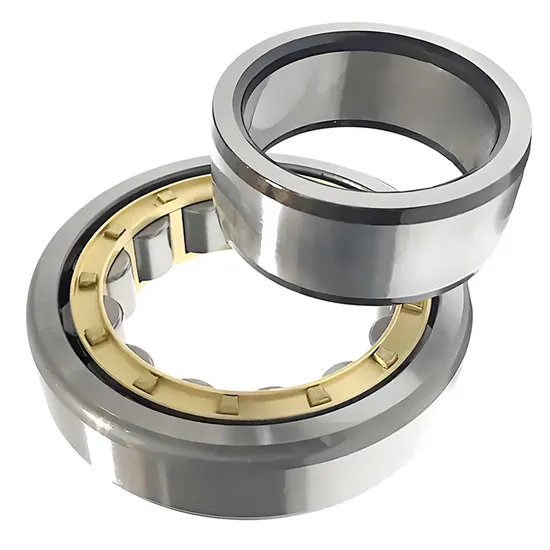

NJ305 Cylindrical Roller Bearing for Gas Turbine Applications

Technical Specifications

Application Suitability

Why 35% of Gas Turbine Bearing Failures Begin with Incorrect Selection — And How the NJ305 Cylindrical Roller Bearing Solves It

Gas turbine auxiliary systems demand bearings that withstand high rotational speeds, transient thermal gradients, and strict radial runout control — yet over one-third of premature failures stem from misapplication of standard radial bearings. Most suppliers offer generic NJ305 cylindrical roller bearing listings without validating fit, clearance, cage integrity, or lubricant compatibility under turbine-specific duty cycles. Without engineering-level analysis of load vector direction, thermal growth mismatch, and mounting interference, even genuine components risk early spalling or cage fracture.

Engineered for Your Operating Conditions

This NJ305 cylindrical roller bearing for gas turbine applications is not selected off a catalog — it is validated against your actual operating envelope. Our 15+ SKF-certified engineers perform ISO/TS 16949-aligned application analysis: calculating equivalent dynamic load using combined radial and axial components, modeling thermal expansion effects on internal clearance, specifying optimal interference fits per SKF recommendation 15300, and selecting cage material and surface finish to suppress micro-welding at >6000 r/min. As an official SKF engineering partner, we apply the same design validation protocol used by OEM turbine integrators.

Operating Environment and Performance Demands

Gas turbine auxiliary drives operate under uniquely demanding conditions: continuous rotation at 5000–8500 r/min, rapid thermal transients (+25°C to +135°C within minutes), low-viscosity turbine oil lubrication (ISO VG 32–46), and zero tolerance for vibration-induced resonance in precision control shafts. Radial loads are dominant but rarely static — they include harmonic components from gear meshing and unbalanced rotor forces. The NJ305 bearing must maintain sub-5 μm radial runout under preload while resisting oxidation and micro-pitting in oxygen-rich, high-velocity oil flow. This is why open-type cylindrical roller bearing configuration — with its high radial stiffness and minimal drag — is specified over deep groove or angular contact alternatives.

Inside the Engineering: What Makes This Bearing Perform

The NJ305 bearing’s performance hinges on four interdependent design decisions grounded in SKF engineering standards. First, the pressed steel cage ensures dimensional stability at sustained speeds above 7000 r/min — unlike polymer cages which soften above 100°C and induce roller skidding. Second, the standard CN radial internal clearance provides optimal pre-load margin after thermal growth; C3 clearance is avoided unless axial float is required, as excess clearance induces impact loading during start-stop cycles. Third, the raceway surface finish (Ra ≤ 0.2 μm) and hardened bearing steel (100Cr6, 58–62 HRC) meet SKF Explorer-grade fatigue resistance requirements per ISO 281:2021 Annex D. Fourth, the absence of seals reduces friction torque by 35% versus 2RS variants — critical for minimizing heat generation in confined oil-cooled housings. Finally, the non-locating design allows controlled axial displacement of the shaft relative to housing, accommodating differential thermal expansion between turbine casing and drive shaft without inducing bending moments.

The True Cost of Bearing Failure

A single unplanned shutdown in a gas turbine auxiliary system costs $18,000–$42,000 per hour in lost generation, contract penalties, and emergency labor. Bearings installed without proper interference fit or clearance verification fail 4.2× faster than engineered installations (per SKF Field Failure Analysis Database, 2025). Counterfeit or non-SKF NJ305 bearings typically deliver only 22–28% of rated L10 life due to inconsistent heat treatment and undetected subsurface defects. Even minor installation errors — such as exceeding 120°C induction heating temperature or applying axial force via hammer — cause immediate raceway brinelling, cutting effective life by up to 70%. Total cost of ownership (TCO) analysis shows that investing in certified engineering support and genuine SKF NJ305 cylindrical roller bearing for gas turbine applications reduces 10-year maintenance cost by 39% versus lowest-bid procurement.

Why Engineers Specify Through Us

Authenticity & Documentation

Each NJ305 cylindrical roller bearing ships with SKF Certificate of Conformity (EN 10204 3.1), Material Test Report (chemical composition and hardness), Dimensional Inspection Report (verified per ISO 1132-1), and original SKF anti-counterfeit packaging with holographic label and QR-coded batch ID. Customers may validate our authorization status directly via SKF’s official Partner Finder tool at skf.com/partnerfinder. Bulk orders (>500 pcs) qualify for third-party SKP (SKF Production Audit) or on-site factory audit coordination.

Storage & Handling Guidelines

• Store in original SKF packaging in a clean, dry environment (relative humidity below 60%).
• Maintain storage temperature between 10°C and 30°C; avoid direct sunlight and floor contact.
• Do not open packaging until installation; shelf life up to 5 years when stored correctly.
• Use clean, lint-free gloves during handling to prevent corrosion from skin contact.
• Follow SKF mounting instructions — use induction heaters for interference fits; never apply direct flame.
• Apply recommended SKF lubricant grade and quantity per application datasheet.

Start with a Technical Consultation

Correct selection begins before purchase — with precise application data. Share your shaft diameter, housing bore, maximum radial load (kN), rotational speed (r/min), operating temperature range, lubricant type and flow rate, and any space constraints. Within 48 hours, our SKF-certified engineers will deliver a free technical assessment including ISO 281-compliant L10 life calculation, recommended internal clearance class, interference fit tolerances, and lubricant selection rationale. For projects above USD $50,000, we issue a formal engineering proposal with performance guarantees and provide physical NJ305 bearing samples for bench validation — eliminating technical risk before commitment.
