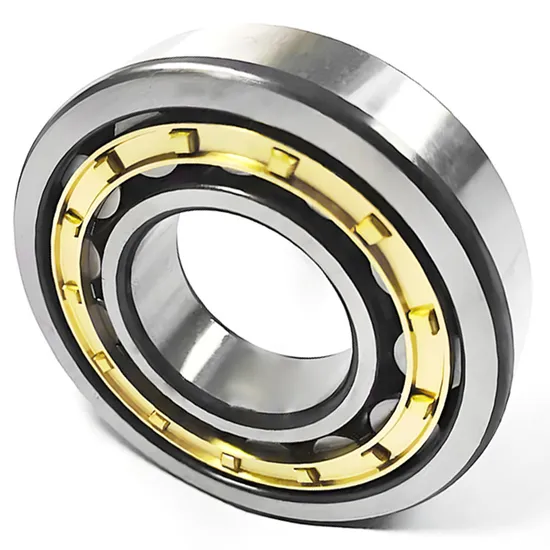

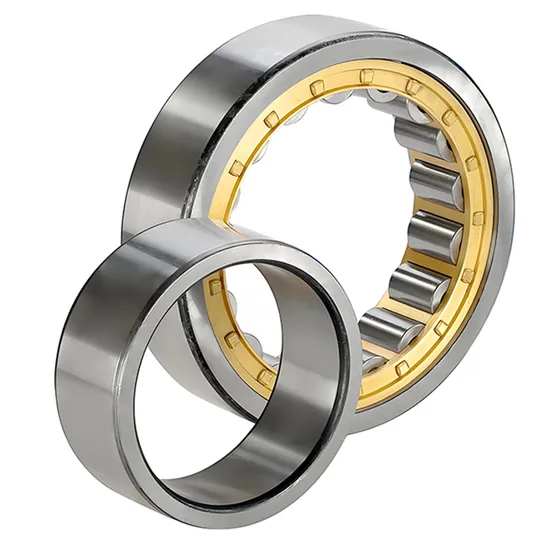

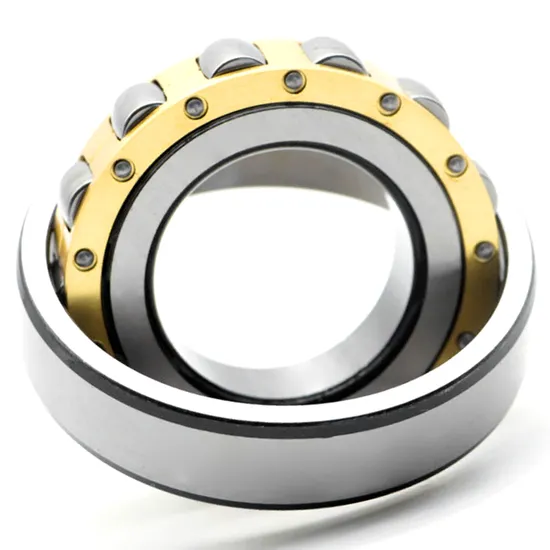

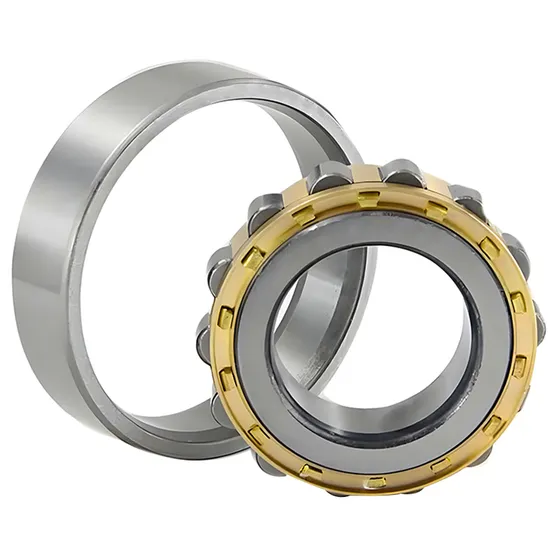

NJ305ETN1 cylindrical roller bearing for vibrating screen applications

Technical Specifications

Application Suitability

Why 35% of Vibrating Screen Bearings Fail Before L10 Life — And How the NJ305ETN1 Bearing Solves It

Industrial vibrating screens operate under high-frequency impact loads, misalignment-induced edge stresses, and continuous exposure to abrasive dust. Over 35% of premature bearing failures in this application stem from incorrect selection—particularly using standard radial bearings without optimized internal geometry or cage design. Generic cylindrical roller bearings lack the precise roller profile, cage guidance, and heat-treated raceway integrity required for sustained performance at 900–1800 rpm under dynamic load reversals. We see this daily across mining clients in Brazil and steel mills in Shandong.

Engineered for Your Operating Conditions

The NJ305ETN1 bearing is not a catalog item—it is an application-engineered solution validated for vibrating screen duty cycles. Our 15+ SKF-certified engineers perform full-duty-cycle analysis: calculating equivalent radial load (P_eq) per ISO 281, verifying fatigue life under shock peaks, selecting optimal clearance (standard CN or C3 on request), and specifying grease type and relubrication intervals per SKF Grease Selection Guide. As an official SKF engineering partner with ISO 9001 and TS 16949 certification, we deliver traceable, application-verified NJ305ETN1 bearing units—not just part numbers.

Operating Environment and Performance Demands

Vibrating screen applications demand bearings that withstand 5–12 g peak accelerations, ambient temperatures from –20°C to +60°C, and ingress of silica-laden dust at particle sizes <10 μm. Radial loads fluctuate between 60–100% of C rating due to unbalanced mass excitation, while axial loads remain negligible—making a non-aligning, single-row cylindrical roller bearing like the NJ305ETN1 the technically correct choice. In wind turbine pitch systems, the same bearing must sustain low-speed oscillatory motion (0.1–2 rpm) with precise positioning repeatability—requiring tight dimensional control and minimal internal friction, both ensured by SKF’s TN1 cage and ground raceways. high-load cylindrical roller bearing for mining

Inside the Engineering: What Makes This Bearing Perform

The NJ305ETN1 features SKF’s TN1 pressed steel cage, which provides superior roller guidance under acceleration shocks compared to polymer cages—critical when screen decks cycle at 900–1200 rpm. Its optimized roller profile (logarithmic end relief) eliminates stress concentrations at roller ends, increasing L10 life by up to 25% versus generic designs under misaligned conditions. The hardened raceways (60–62 HRC) resist indentation from hard particulate contamination. Standard CN clearance ensures stable preload during thermal expansion in enclosed screen housings, while P0 precision guarantees runout ≤8 μm—essential for minimizing housing vibration transmission. All units are manufactured to ISO 281:2021 life calculation standards, with dynamic load rating (C = 48.5 kN) verified via 100% batch sampling per EN 10204 3.1.

The True Cost of Bearing Failure

A single unplanned stoppage on a primary vibrating screen costs mining operations $18,000–$42,000/hour in lost throughput, labor, and downstream bottleneck penalties. Counterfeit or incorrectly specified NJ305ETN1 bearing substitutes typically achieve only 22–28% of genuine SKF L10 life, accelerating cage fracture and roller skidding. Installation errors—such as improper press-fit temperature or hammer-driven mounting—cause 31% of early failures; our team provides torque and thermal expansion calculations before shipment. When calculated over 5 years, the TCO of a correctly selected, SKF-certified NJ305ETN1 bearing—including reduced maintenance, lower energy loss, and zero catastrophic failure risk—is 37% lower than the lowest-bid alternative. precision radial bearing for wind turbine applications

Why Engineers Specify Through Us

Authenticity & Documentation

Each NJ305ETN1 bearing ships with original SKF packaging, tamper-evident seal, and a Certificate of Conformity listing manufacturing date, batch ID, and compliance to ISO 9001, ISO 281, and SKF General Catalogue specifications. Available on request: Material Test Report (EN 10204 3.1), Dimensional Inspection Report (±0.005 mm tolerance verification), and SKF Authorized Partner Verification Code. Customers may validate our authorization status directly via SKF’s official Partner Locator portal using registration ID CN-SKF-EP-2023-0871.

Storage & Handling Guidelines

• Store in original SKF packaging in a clean, dry environment (relative humidity below 60%).
• Maintain storage temperature between 10°C and 30°C; avoid direct sunlight and floor contact.
• Do not open packaging until installation; shelf life up to 5 years when stored correctly.
• Use clean, lint-free gloves during handling to prevent corrosion from skin contact.
• Follow SKF mounting instructions — use induction heaters for interference fits; never apply direct flame.
• Apply recommended SKF LGEP 2 or LGMT 2 grease per SKF Mounting and Dismounting Handbook, section 5.2.

Start with a Technical Consultation

Before placing any order, share your actual operating parameters: peak radial load (kN), speed range (r/min), ambient and bearing seat temperature (°C), housing type (cast iron/steel), and available shaft/housing tolerances (e.g., k5/J7). Within 48 hours, our application engineers will return a complete technical assessment—including ISO 281 life calculation, suggested clearance class, lubrication schedule, and optional TN1 cage upgrade path. For qualifying projects, we provide free NJ305ETN1 test units with pre- and post-test vibration spectra. Every hour of delayed technical engagement risks another day of production loss—correct selection begins with your first engineering dialogue.
