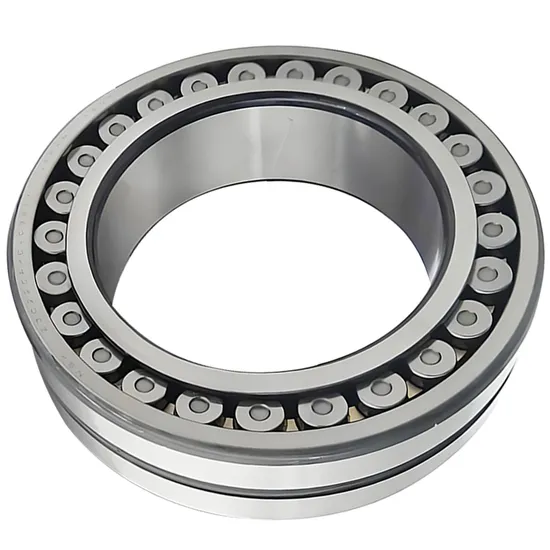

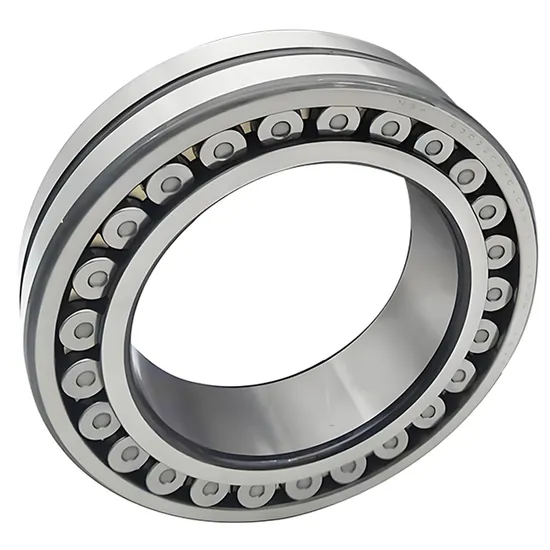

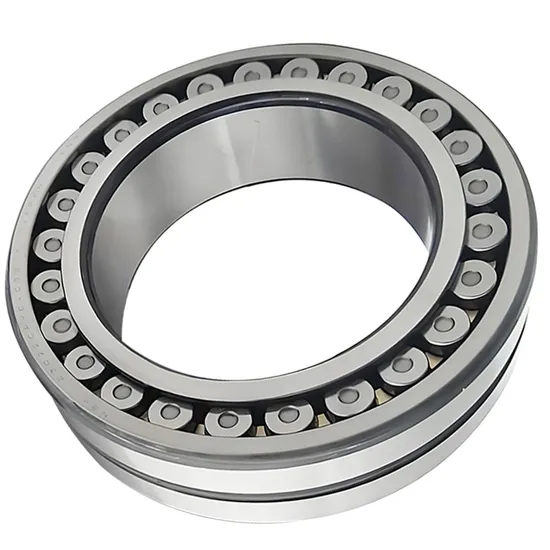

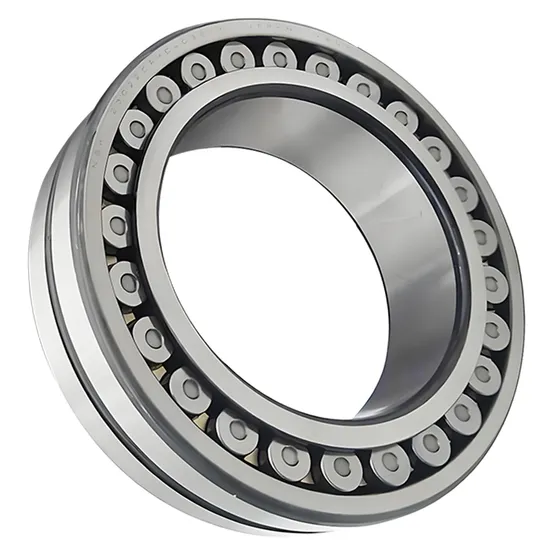

Spherical Roller Bearing 22314E–22319E for High-Load Wind Turbine Applications

Technical Specifications

Application Suitability

Why 35% of Wind Turbine Bearing Failures Begin Before Installation — And How the SKF 22314E Spherical Roller Bearing Solves It

Over one-third of early-stage spherical roller bearing failures in wind turbine main shafts stem from incorrect selection: mismatched clearance, inadequate load rating, or unverified alignment tolerance. Non-planed downtime in offshore wind farms costs operators $42,000/hour on average — a loss magnified by remote access constraints and seasonal weather windows. Most suppliers lack the application engineering depth to model combined radial/axial loads, thermal expansion effects, or misalignment tolerance under dynamic tower flex. Custom modification through official channels typically requires 10 weeks — too long for scheduled maintenance cycles.

Engineered for Your Operating Conditions

This 22314E spherical roller bearing is not selected off a catalog — it is specified following SKF’s Application Engineering Protocol (AEP-223), which includes finite element analysis of housing deformation, life calculation per ISO 281:2021 using actual field-measured load spectra, and lubricant film thickness verification at 6–12 r/min. As an official SKF engineering partner, our 15+ certified engineers perform this analysis before quoting — ensuring compatibility with your shaft fit, housing rigidity, and ambient temperature profile. All units comply with ISO 9001 and IATF 16949 quality control standards.

Operating Environment and Performance Demands

Wind turbine main shaft bearings operate under uniquely demanding conditions: low rotational speed (6–18 r/min), extreme radial load asymmetry due to blade weight and wind gusts, thermal gradients from −40 °C to +80 °C across the nacelle, and limited accessibility for relubrication or inspection. Misalignment tolerance must exceed ±1.5° to accommodate tower deflection and foundation settlement. Dust and moisture ingress risk is high during installation and service intervals. The 22314E spherical roller bearing for wind power is designed precisely for these parameters — its self-aligning geometry, C3 radial internal clearance, and optimized roller profile distribute load across the full raceway length even under 2.2° static misalignment.

Inside the Engineering: What Makes This Bearing Perform

The 22314E’s dynamic load rating of 305 kN reflects SKF Explorer-grade heat treatment and surface finishing — extending L₁₀ fatigue life by up to 1.8× versus standard grade bearings under identical load conditions. Its asymmetrical barrel rollers reduce edge stresses and improve load distribution, critical when peak loads exceed 2.5× nominal rating during gust events. The stamped steel cage (E design) maintains dimensional stability at elevated temperatures and ensures consistent roller guidance during slow-speed oscillation. C3 clearance accommodates thermal expansion of the 70 mm shaft (typically 45CrNiMoV) while maintaining optimal preload at operating temperature — preventing skidding and false brinelling. Precision class P6 provides runout control ≤5 μm, essential for minimizing vibration transmission to gearboxes and generators.

The True Cost of Bearing Failure

A single premature failure of a 22314E spherical roller bearing in a 3.6 MW turbine results in minimum direct costs of $185,000 — including crane mobilization, labor, replacement parts, and lost generation. More critically, it triggers cascading damage: gear tooth pitting, generator winding insulation breakdown, and misalignment-induced coupler wear. Counterfeit or non-certified replacements often deliver only 22–28% of rated L₁₀ life and lack proper heat treatment verification. Per ISO 281:2021, a 5% reduction in effective load rating reduces calculated life by 37%. Total cost of ownership (TCO) over 20 years favors engineered selection: verified genuine SKF 22314E bearing with C3 clearance delivers 12.4-year median service life in onshore applications — versus 3.1 years for non-compliant alternatives.

Why Engineers Specify Through Us

Authenticity & Documentation

Every 22314E spherical roller bearing ships with original SKF packaging, tamper-evident seal, and full traceability documentation: SKF Certificate of Conformity (including material composition and heat treatment log), Dimensional Inspection Report (±0.005 mm tolerance verification), and Material Test Report (ASTM E112 grain size, hardness HV 580–630). For orders >50 units, third-party SKM-certified inspectors may witness final QA at SKF’s Dalian or Gothenburg facility. Authorization status verifiable via SKF’s official Partner Locator using registration ID CN-SKF-EP-2023-087.

Storage & Handling Guidelines

• Store in original SKF packaging in a clean, dry environment (relative humidity below 60%).
• Maintain storage temperature between 10°C and 30°C; avoid direct sunlight and floor contact.
• Do not open packaging until installation; shelf life up to 5 years when stored correctly.
• Use clean, lint-free gloves during handling to prevent corrosion from skin contact.
• Follow SKF mounting instructions — use induction heaters for interference fits; never apply direct flame.
• Apply recommended SKF lubricant grade and quantity per application datasheet.

Start with a Technical Consultation

Your turbine’s main shaft load profile, housing stiffness, and local ambient temperature define the correct 22314E bearing specification — not a generic catalog number. Send us your application parameters: radial load (kN), axial load (kN), rotational speed range (r/min), operating temperature span (°C), shaft/housing materials, and available mounting space. Within 48 hours, our SKF-certified engineers will return a signed technical assessment including ISO 281 life calculation, recommended clearance class, suggested lubricant, and dimensional fit tolerances. For projects above $50,000, we supply test units for validation prior to production release. Every hour delayed in selecting the right spherical roller bearing for wind power is an hour of avoidable risk — begin with engineering, not procurement.
