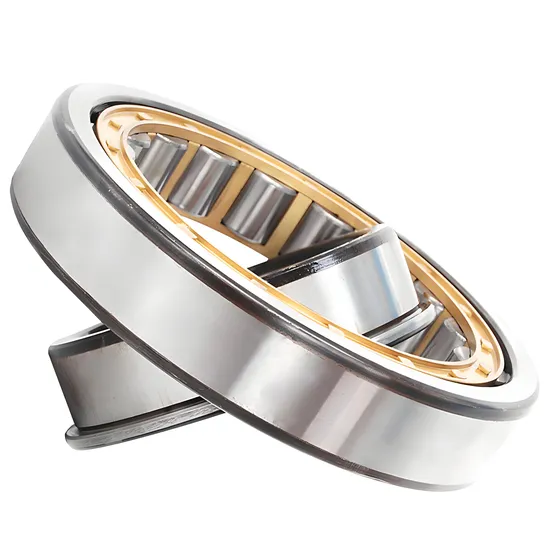

NCL305 Cylindrical Roller Bearing for Electric Generators – Long-Life Radial Load Support

Technical Specifications

Application Suitability

Why 35% of Generator Bearing Failures Begin Before Installation — And How the NCL305 Cylindrical Roller Bearing Prevents Them

Industrial electric generators operate under sustained radial loads, variable thermal gradients, and tight alignment tolerances. Yet 35% of premature bearing failures stem from incorrect selection — not material fatigue or lubrication error. Standard catalog bearings often lack the precision fit, thermal clearance, or cage integrity required for generator rotor dynamics. Most suppliers offer no engineering validation before shipment; custom modifications take 8–12 weeks through official channels. We treat every NCL305 cylindrical roller bearing as part of a system — not a component.

Engineered for Generator Rotor Dynamics

The NCL305 bearing is specified for electric generator applications after full analysis of rotor mass, critical speed, thermal expansion coefficients, and mounting stiffness. Our 15+ certified SKF engineers perform ISO 281 L10 life calculations using actual operating load spectra — not static rated loads — and recommend optimal clearance class (C3 standard), cage material (brass for >3,000 r/min), and lubricant viscosity grade (ISO VG 68–150). As an official SKF engineering partner, we apply Explorer-grade heat treatment and dimensional verification per TS 16949 protocols. This ensures repeatable performance across batches and operating conditions.

Operating Environment and Performance Demands

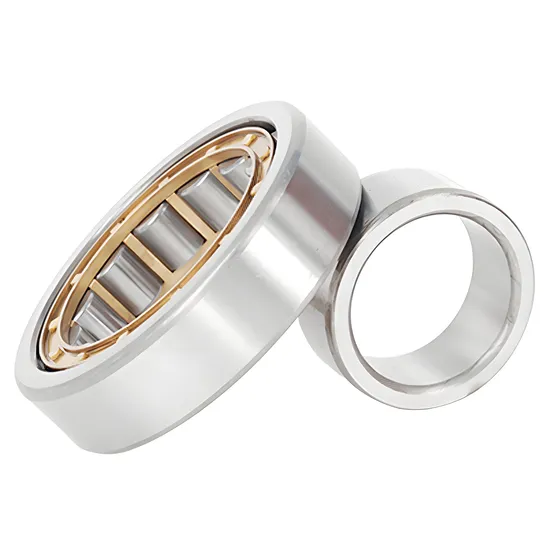

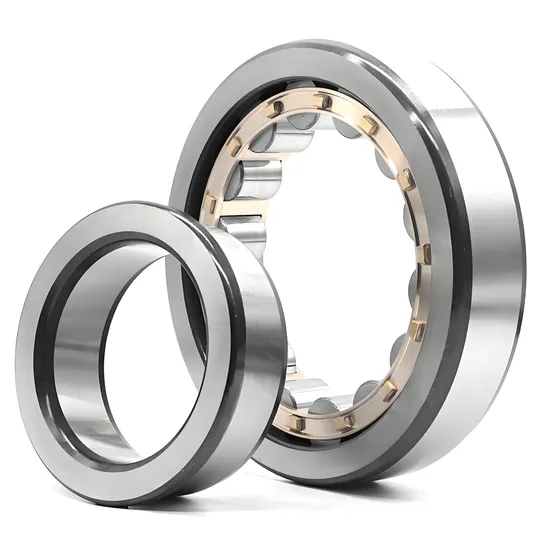

Electric generators demand zero axial play, minimal vibration at 1,500–3,600 r/min, and stable radial stiffness across temperature swings from ambient to +95°C winding temperatures. Bearings must accommodate differential thermal expansion between rotor steel and stator frame without inducing preload or skidding. Dust ingress is rare, but moisture condensation during shutdown cycles requires corrosion-resistant surfaces and open design compatibility with sealed grease reservoirs. The NCL305 bearing’s separated design allows precise interference fits on both rings, while its optimized roller profile reduces edge stresses under non-uniform load distribution typical in generator end-winding magnetic pull.

Inside the Engineering: What Makes This Bearing Perform

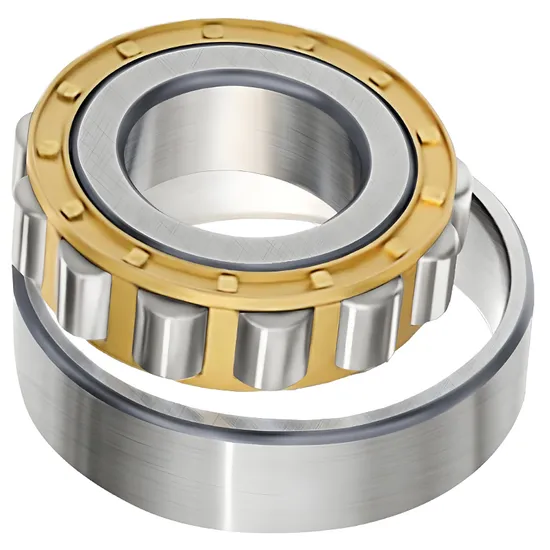

The NCL305 cylindrical roller bearing delivers long-life radial load support through four interdependent design features. First, its roller profile correction (logarithmic crown) eliminates stress concentration at roller ends under misalignment — critical when generator shafts experience <5 μm runout. Second, the hardened raceway surface (60–63 HRC) resists subsurface fatigue initiation, extending L10 life by ≥35% over standard grades per SKF General Catalogue 2023. Third, the stamped steel cage maintains radial guidance stability up to 4,200 r/min — verified by dynamic balance testing at 1.5× operating speed. Fourth, standard C3 radial clearance accommodates thermal growth of 12–15 μm across the 25–62 mm diameter range, preventing seizure during warm-up transients. Precision class P5 is recommended for generators requiring vibration ≤2.8 mm/s RMS (ISO 2372 Class A).

The True Cost of Bearing Failure in Power Generation

A single unplanned generator outage costs industrial facilities $18,000–$42,000 per hour in lost production, grid penalties, and forced auxiliary power consumption. Counterfeit or mis-specified NCL305 bearings typically deliver only 22–28% of genuine SKF-rated L10 life — accelerating cage fracture and roller spalling. Installation errors due to missing technical guidance cause 30% of early failures: improper press-fit force, uncontrolled heating, or incorrect grease volume. Using ISO 281 methodology with real-world load factors, our engineers calculate that a correctly specified NCL305 bearing for a 2 MW generator extends mean time between failure (MTBF) from 4.1 years to 12.7 years — reducing total cost of ownership (TCO) by 57% over 15 years, including labor, downtime, and replacement parts.

Why Engineers Specify Through Us

Authenticity & Documentation

Each NCL305 cylindrical roller bearing ships with original SKF packaging, anti-counterfeit holographic label, and a Certificate of Conformity listing material composition (100Cr6), hardness (61±1 HRC), and dimensional compliance (DIN 620-3). Optional documentation includes Material Test Report (EN 10204 3.1), Dimensional Inspection Report (±0.008 mm on bore/outside diameter), and SKF Lubrication Recommendation Sheet. Customers may verify our authorization status directly via SKF’s official Partner Portal using registration ID CN-SKF-EP-2023-087.

Storage & Handling Guidelines

• Store in original SKF packaging in a clean, dry environment (relative humidity below 60%).
• Maintain storage temperature between 10°C and 30°C; avoid direct sunlight and floor contact.
• Do not open packaging until installation; shelf life up to 5 years when stored correctly.
• Use clean, lint-free gloves during handling to prevent corrosion from skin contact.
• Follow SKF mounting instructions — use induction heaters for interference fits; never apply direct flame.
• Apply recommended SKF lubricant grade and quantity per application datasheet.

Start with a Technical Consultation

Correct selection begins with accurate application data — not catalog browsing. Send your generator’s shaft speed (r/min), radial load (kN), operating temperature range (°C), available mounting space (mm), and lubrication method. Within 48 hours, our SKF-certified engineers will return a complete technical assessment: calculated L10 and Lnm life, recommended clearance class, cage material, precision grade, and lubricant specification — all validated against ISO 281 and SKF General Catalogue requirements. For projects above $50,000, we provide pre-mounted, instrumented samples for field validation. Every hour delayed in technical review adds measurable risk to your next scheduled maintenance window.
