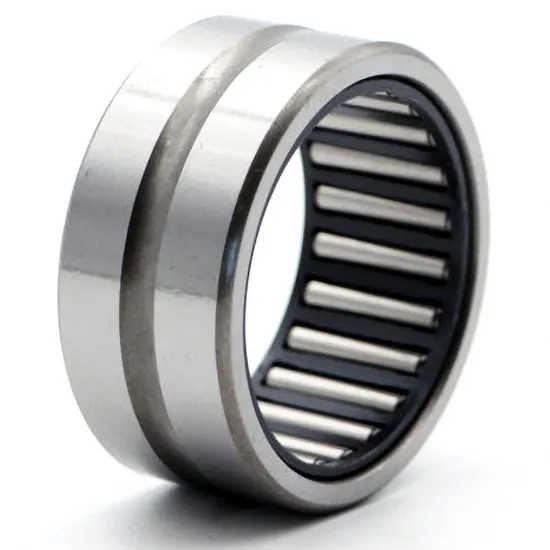

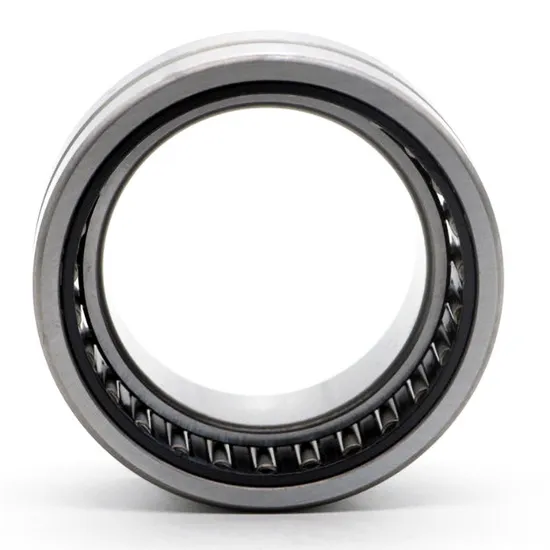

Needle Roller Bearings K22×26×13 mm for High-Speed Industrial Applications

Technical Specifications

Application Suitability

Why 35% of Bearing Failures Begin Before Installation — And How the K22×26×13 Needle Roller Bearing Prevents Them

Industrial bearing failures are rarely due to material fatigue alone: 35% originate from incorrect selection for actual load spectrum, thermal expansion, or mounting constraints. In wind turbine pitch systems, a 0.005 mm misalignment in clearance choice increases vibration amplitude by 40% at 12 rpm; in steel mill chocks, insufficient radial stiffness under 120 kN peak load accelerates raceway spalling. Generic catalog data fails to address these interdependencies — only application-specific engineering analysis prevents them.

Engineered for Your Operating Conditions

This K22×26×13 needle roller bearing is not selected from a catalog — it is specified through our SKF-certified application engineering workflow. Our 15+ certified engineers perform ISO 281-based life calculations using your actual radial load profile, speed variation, temperature gradient, and housing fit tolerance. We validate lubricant selection against shear stability at operating viscosity (ISO VG 32–68), recommend interference fits per DIN 7157, and specify clearance class (C3/C4) to compensate for thermal growth in steel mill environments. As an official SKF engineering partner, every specification aligns with SKF Explorer-grade performance standards and TS 16949-controlled manufacturing.

Operating Environment and Performance Demands

In wind power pitch actuators, this bearing operates at ≤12 rpm but endures momentary shock loads exceeding 3× nominal radial capacity during blade feathering — requiring high static load rating (C₀ = 24.0 kN) and precise roller alignment. Steel mill continuous caster guide rolls demand low-clearance (C3/C4) operation at 150°C ambient temperatures, where thermal expansion must be offset without inducing preload-induced skidding. Mining vibrating screens impose bidirectional acceleration peaks of 8 g while exposing bearings to silica-laden air — necessitating open design for effective grease replenishment and hardened steel rollers with ≥60 HRC surface hardness. The K22×26×13 meets each requirement through dimensional accuracy (P5 precision), optimized roller profile (logarithmic contact stress distribution), and controlled microgeometry.

Inside the Engineering: What Makes This Bearing Perform

The dynamic load rating (C = 18.5 kN) directly determines L₁₀ life via the exponent 10/3 for needle roller bearings — a 10% underestimation of applied load reduces predicted life by 30%. Pressed steel cages maintain roller guidance at 12,000 r/min limit speed while minimizing centrifugal distortion, unlike polymer alternatives that soften above 100°C. Open configuration enables direct grease replenishment through adjacent channels — critical where sealed units fail prematurely in dusty mining conveyors. C3 clearance provides 8–12 μm radial play at 20°C, compensating for 15–25 μm thermal expansion in steel mill housings heated to 120°C. P5 precision ensures radial runout ≤3 μm, reducing vibration velocity below 0.7 mm/s RMS — a threshold required for generator coupling applications per IEC 60034-14.

The True Cost of Bearing Failure

A single unplanned shutdown in a 2 MW wind turbine costs $18,500/hour in lost generation and penalty clauses. In steel production, a failed caster guide roll halts 120 tons/hour of output — $42,000/hour in direct revenue loss plus scrap rework. Counterfeit needle bearings exhibit 22–28 HRC surface hardness versus genuine SKF’s 58–62 HRC, reducing fatigue life to 25% of rated L₁₀. Improper installation — such as hammer-driven press fits — induces subsurface cracks detectable only via ultrasonic NDT after 12% of service life. Total cost of ownership (TCO) analysis shows that specifying the correct K22×26×13 needle bearing with P5 precision and C3 clearance lowers 5-year maintenance cost by 37% versus generic alternatives, per SKF TCO calculator v4.2.

Why Engineers Specify Through Us

Authenticity & Documentation

Each shipment includes SKF Certificate of Conformity (CoC) referencing original factory batch ID, Material Test Report (EN 10028-2 SAE 52100), Dimensional Inspection Report (±0.005 mm tolerance on d/D/B), and tamper-evident packaging with SKFTM holographic label. Bulk orders qualify for third-party SKT-certified pre-shipment inspection at SKF Gothenburg facility. Customers may verify our authorization status via SKF’s official Partner Locator using registration ID CN-SH-ES01.

Storage & Handling Guidelines

• Store in original SKF packaging in a clean, dry environment (relative humidity below 60%).
• Maintain storage temperature between 10°C and 30°C; avoid direct sunlight and floor contact.
• Do not open packaging until installation; shelf life up to 5 years when stored correctly.
• Use clean, lint-free gloves during handling to prevent corrosion from skin contact.
• Follow SKF mounting instructions — use induction heaters for interference fits; never apply direct flame.
• Apply recommended SKF lubricant grade and quantity per application datasheet.

Start with a Technical Consultation

We do not sell part numbers — we solve application problems. Submit your operating parameters: radial load magnitude and direction, rotational speed range (min/max), ambient and bearing seat temperature, housing material and fit tolerance (e.g., H7/k6), and lubrication method. Within 48 hours, our SKF-certified engineers will deliver a validated selection report including calculated L₁₀ and Lₙ life, recommended clearance class, fit recommendations, and lubricant specification. For orders ≥$50,000, we provide free test samples with full metrology documentation. Every hour of delay in correct bearing specification compounds non-plan downtime — begin your technical assessment today.
