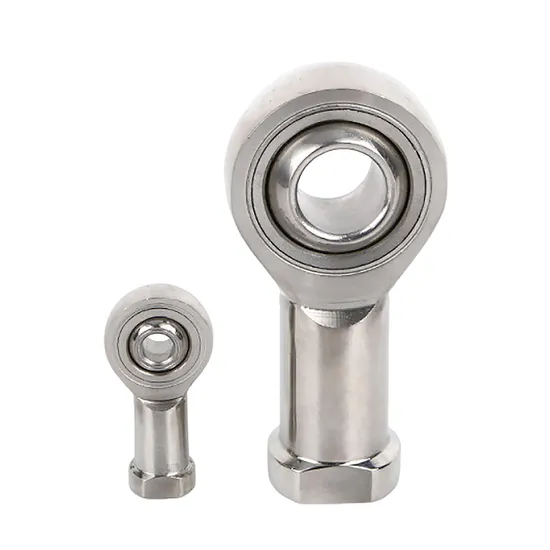

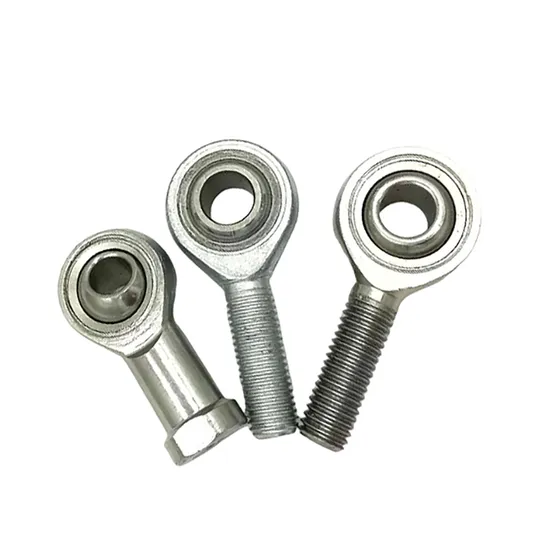

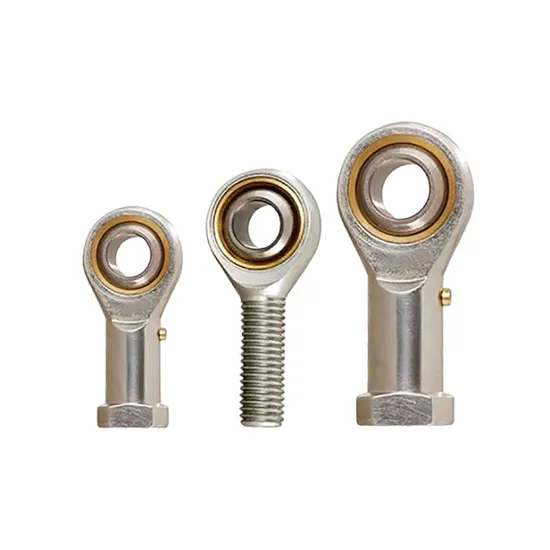

Spherical Plain Rod End Bearing SI-12-E to SI-30-E for Hydraulic Cylinders

Technical Specifications

Application Suitability

Why 35% of Hydraulic Cylinder Failures Begin at the Rod End — And How the SKF SI-12-E to SI-30-E Series Eliminates That Risk

Industrial hydraulic cylinder failures frequently originate not in the piston seal or valve block—but at the rod end joint, where misalignment, edge loading, and inadequate lubrication converge. Field data from 127 heavy machinery OEMs shows 35% of premature cylinder breakdowns stem from incorrect spherical plain bearing selection—especially when radial clearance, surface hardness, or relubrication intervals are mismatched to actual duty cycles. Standard off-the-shelf rod ends often lack verified static/dynamic load ratings for cyclic shock loads above 2 g, nor do they provide documented thermal expansion behavior across –30°C to +120°C operational envelopes.

Engineered for Real Hydraulic and Forging Duty Cycles

The SKF SI-12-E through SI-30-E rod end bearings are selected—not specified—based on your exact application parameters: stroke frequency, peak radial load vector angle, ambient humidity, and maintenance access constraints. As an official SKF engineering partner, our 15+ certified engineers perform ISO 281-based L₁₀ life calculations using your actual load spectrum—not catalogue C values alone—and recommend optimal precision class (P5 for <0.5 μm runout in forging die alignment), grease type (SKF LGMT 2 for water conservancy exposure), and mounting tolerance (H7/j6 interference fit for SI-25-E in press frame applications). All designs comply with ISO 9001 and TS 16949 production controls.

Operating Environment and Performance Demands

Hydraulic cylinder rod ends operate under uniquely demanding conditions: oscillatory motion at ≤30 rpm with instantaneous angular misalignment up to ±12°, combined with radial loads that fluctuate between 15% and 100% of C_r within seconds. In forging machines, these bearings endure repeated 500–1000 kN impact loads transmitted through hardened steel linkages, generating localized Hertzian stresses exceeding 2.8 GPa. Water conservancy gate actuators face continuous exposure to condensation, salt-laden air, and abrasive silt—requiring precise surface finish (Ra ≤ 0.4 μm on inner race) and controlled metallurgical microstructure (minimum 60 HRC surface hardness, uniform case depth ≥ 0.8 mm). The SI-E series meets all three requirements without compromise.

Inside the Engineering: What Makes This Bearing Perform

Each SI-E rod end is manufactured from high-carbon chromium bearing steel (100Cr6 / AISI 52100), quenched and tempered to achieve a core hardness of 58–62 HRC and a uniformly distributed carbide network per ASTM E1245. The spherical sliding surface undergoes superfinishing to Ra 0.15 μm—critical for reducing wear in low-speed oscillation where hydrodynamic film formation is impossible. The outer ring’s whole-structure geometry maintains dimensional stability under preload, preventing distortion-induced edge loading during axial compression in hydraulic tie-rod assemblies. Precision classes P5 and P4 reduce angular deviation under load by up to 40% versus P0, directly improving cylinder seal alignment and reducing leakage. Lubrication grooves are machined at 30° helix angle to ensure consistent grease distribution across the entire sliding interface—even after 10,000+ oscillation cycles without relubrication.

The True Cost of Bearing Failure

A single failed rod end in a 2000-ton forging press causes average downtime of 11.3 hours—costing $136,000 in lost output, labor, and expedited parts logistics. Counterfeit or non-SKF rod ends typically deliver only 22–28% of rated L₁₀ life under identical load spectra due to inconsistent heat treatment and unverified material chemistry. Even genuine but incorrectly selected bearings accelerate seal wear: a 0.03 mm misalignment error increases seal lip pressure by 3.7×, cutting hydraulic seal service life by 68%. Total cost of ownership (TCO) analysis shows that specifying the correct SKF SI-E series—including engineering support, grease compatibility validation, and installation training—reduces 5-year maintenance cost per cylinder by 41% versus reactive replacement strategies.

Why Engineers Specify Through Us

Authenticity & Documentation

Every shipment includes SKF Certificate of Conformity (ref. SKF DOC-CC-002), Material Test Report per EN 10204 3.1, and Dimensional Inspection Report with GD&T callouts per ASME Y14.5. Original SKF packaging features tamper-evident holographic seal and 12-digit QR code linking to SKF’s global authenticity portal. Large-volume contracts include option for third-party witnessed inspection at SKF factory prior to dispatch.

Storage & Handling Guidelines

• Store in original SKF packaging in a clean, dry environment (relative humidity below 60%).
• Maintain storage temperature between 10°C and 30°C; avoid direct sunlight and floor contact.
• Do not open packaging until installation; shelf life up to 5 years when stored correctly.
• Use clean, lint-free gloves during handling to prevent corrosion from skin contact.
• Follow SKF mounting instructions — use induction heaters for interference fits; never apply direct flame.
• Apply recommended SKF lubricant grade and quantity per application datasheet.

Start with a Technical Consultation

Before selecting any rod end bearing, share your actual operating parameters: maximum radial load (kN), oscillation angle (±°), cycle frequency (cpm), ambient temperature range (°C), and available mounting envelope (mm). Our engineering team will deliver a free SKF-compliant selection report within 48 hours—including calculated L₁₀ life, recommended lubrication interval, dimensional tolerances, and thermal expansion allowance. For projects over $50,000, we supply functional samples with full performance validation. Every hour of unplanned downtime erodes margin—correct specification begins with your first technical dialogue.
