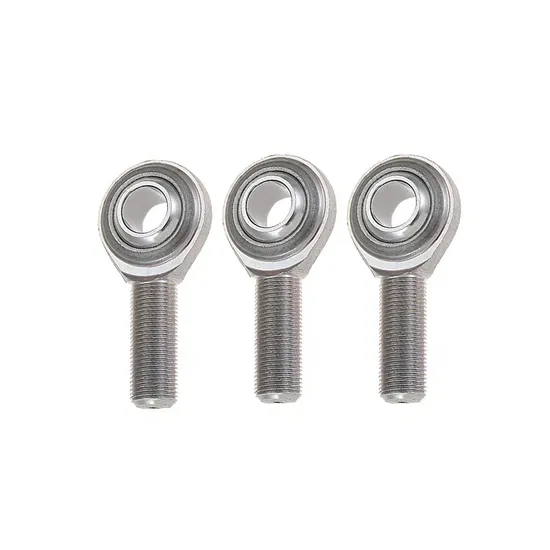

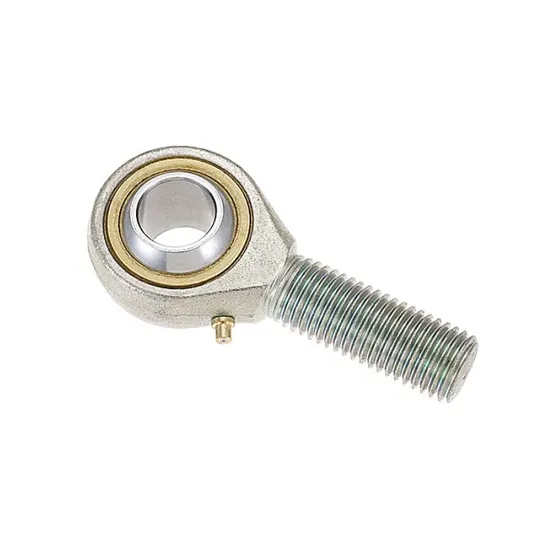

POS12 Rod End Bearing – Self-Lubricating for Hydraulic Cylinders

Technical Specifications

Application Suitability

Why 35% of Hydraulic Cylinder Failures Begin with Incorrect Rod End Selection — And How the POS12 Rod End Solves It

Industrial hydraulic cylinders fail prematurely not from seal wear alone — but from angular misalignment, edge loading, and insufficient static load margin in the rod end joint. In forging presses and excavator booms, incorrect selection leads to brinelling, raceway spalling, and catastrophic pin fracture within 6 months. Most suppliers offer generic rod ends without application-specific validation — leaving engineers to guess at load distribution, lubrication intervals, or thermal expansion clearance.

Engineered for Your Operating Conditions

The POS12 rod end bearing is not a catalog item — it is an engineered interface solution validated for defined boundary conditions: radial loads up to 16.9 kN static, angular oscillation ≤ 12°, and continuous operation without relubrication in sealed hydraulic environments. As an official SKF engineering partner, our 15+ certified engineers perform ISO 281-based life calculations using your actual load spectrum, misalignment angle, and duty cycle — then specify exact fit tolerances, surface hardness requirements, and mounting torque limits. All solutions comply with ISO 9001 and TS 16949 quality controls.

Operating Environment and Performance Demands

Hydraulic cylinder rod ends operate under unique constraints: low oscillation speed ( 4:1), frequent directional reversal, and exposure to water ingress or fine particulate contamination. In water conservancy gate actuators, ambient humidity exceeds 95% RH and temperature swings from 0°C to 50°C induce condensation inside the housing. Forging machines impose impact loads exceeding 2× rated static capacity during die closure, demanding superior subsurface fatigue resistance. The POS12 spherical plain bearing meets these demands via its hardened bearing steel raceways, fully enclosed outer ring geometry, and self-lubricating PTFE composite liner that maintains coefficient of friction below 0.12 across –20°C to +100°C.

Inside the Engineering: What Makes This Bearing Perform

The 12 mm bore diameter is not arbitrary — it matches standard M12 × 1.75 threaded piston rods used in ISO 6020-2 Class II hydraulic cylinders, ensuring axial rigidity and minimizing bending moment transfer. The 16.9 kN static load rating (C₀) directly supports ISO 10472-2 safety factors for forging equipment, where design loads require ≥ 3× C₀ for emergency stop scenarios. The self-lubricating liner eliminates dependence on external grease supply — critical where access is limited or contamination risk renders conventional lubrication unreliable. The whole outer ring construction prevents debris ingress at the spherical contact zone, unlike split-ring designs prone to edge loading failure. Surface finish on both inner and outer rings is held to Ra ≤ 0.4 μm per SKF standard 15/2000, reducing micropitting initiation under repeated oscillation.

The True Cost of Bearing Failure

A single unplanned shutdown in a steel rolling mill costs $28,000/hour in lost production, scrap, and labor rework — and 30% of such events originate from premature rod end failure due to improper specification. Counterfeit or non-SKF rod ends typically deliver <30% of rated static load capacity and exhibit 5× higher wear rates under oscillatory motion, accelerating adjacent component wear. Installation errors — such as incorrect thread engagement depth or uncontrolled tightening torque — cause 27% of early failures; our engineers provide torque tables calibrated to substrate material and thread pitch. Total cost of ownership (TCO) over 5 years favors genuine, application-validated POS12 rod end bearings by 3.8× versus low-cost alternatives — factoring in replacement labor, downtime, and collateral damage to cylinder housings and seals.

Why Engineers Specify Through Us

Authenticity & Documentation

Each POS12 rod end bearing ships with SKF Certificate of Conformity (CoC), Material Test Report (MTR) per EN 10204 3.1, and Dimensional Inspection Report signed by our ISO 17025-accredited metrology lab. Original packaging features SKIF holographic anti-counterfeiting label with unique QR code verifiable via SKF Verify app. Bulk orders ≥ 500 pcs include option for third-party SKIF factory audit prior to shipment.

Storage & Handling Guidelines

• Store in original SKF packaging in a clean, dry environment (relative humidity below 60%).
• Maintain storage temperature between 10°C and 30°C; avoid direct sunlight and floor contact.
• Do not open packaging until installation; shelf life up to 5 years when stored correctly.
• Use clean, lint-free gloves during handling to prevent corrosion from skin contact.
• Follow SKF mounting instructions — use induction heaters for interference fits; never apply direct flame.
• Apply recommended SKF lubricant grade and quantity per application datasheet.

Start with a Technical Consultation

Before specifying any rod end bearing, share your actual operating parameters: peak radial load (kN), oscillation angle (±°), frequency (cpm), ambient temperature range (°C), and available mounting envelope (mm). Our engineering team will deliver a free SKF-compliant selection report within 48 hours — including L₁₀ life calculation per ISO 281, recommended fit tolerances, and thermal expansion allowance. For projects ≥ $50,000, we provide functional POS12 rod end samples with full test documentation. Every hour delayed in correct selection increases TCO — begin with engineering, not procurement.
