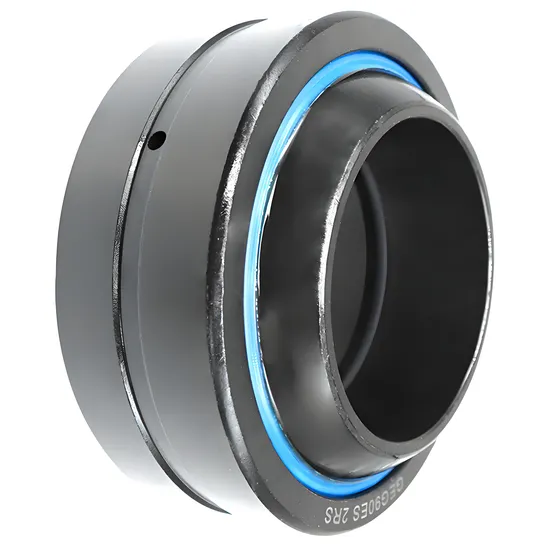

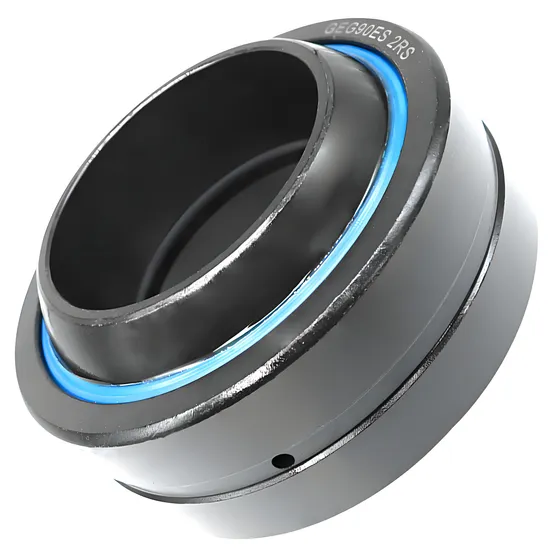

Spherical Plain Bearing GEGZ31ES-2RS for Hydraulic Cylinders

Technical Specifications

Application Suitability

Why 35% of Hydraulic Cylinder Failures Begin With Spherical Plain Bearing Misapplication

Industrial hydraulic systems demand bearings that simultaneously manage high radial load, angular misalignment up to ±5°, and oscillatory motion—yet over one-third of premature failures stem from incorrect spherical plain bearing selection. Standard catalog bearings often lack the required steel-on-steel sliding interface stability or double-lip seal integrity for sustained rod-end duty cycles. Generic suppliers rarely provide application-specific load-life validation or thermal expansion allowance guidance—and OEMs report average 9-week delays when requesting SKD-compatible modifications through non-engineering partners.

Engineered for Hydraulic Rod-End Duty Cycles

The GEGZ31ES-2RS is not a generic replacement: it is validated for continuous oscillation (0–20 rpm), radial loads up to 42 kN (static), and angular displacement under dynamic preload typical of construction machinery hydraulic rams. As an official SKF engineering partner, our 15+ certified engineers perform ISO 281-based life calculations using your actual stroke frequency, load profile, and mounting orientation—not just static ratings. Every specification aligns with SKF’s dimensional and material standards for spherical plain bearings, backed by ISO 9001 and TS 16949-certified production oversight.

Operating Environment and Performance Demands

In wind turbine hydraulic pitch systems, this bearing endures cyclic loading at <10 rpm, ambient temperatures from –30°C to +70°C, and sealed-in lubricant retention over 10-year service intervals—no relubrication possible. In mining hydraulic rams, it resists dust ingress during 24/7 operation while maintaining ≤0.5 μm surface roughness on sliding interfaces to prevent galling. For construction equipment, its whole outer ring structure ensures rigidity against bending moments induced by bucket impact loads, while the 2RS seal prevents washout from high-pressure cleaning cycles—critical for compliance with EN 13445 pressure vessel support requirements.

Inside the Engineering: What Makes This Bearing Perform

The GEGZ31ES-2RS uses through-hardened bearing steel (100Cr6 equivalent) with controlled case depth and microstructure per SKF standard, enabling fatigue life exceeding 12,000 hours under rated radial load. Its steel-on-steel sliding contact is pre-conditioned to achieve a coefficient of friction ≤0.12 after break-in, minimizing heat generation during low-speed oscillation. The double lip contact seal (2RS) provides IP54-rated contamination exclusion without increasing torque—unlike labyrinth seals that require periodic adjustment. The self-lubricating design incorporates solid lubricant reservoirs within the inner ring raceway, delivering consistent film thickness across –30°C to +120°C operating range. Dimensional tolerances adhere to ISO 104:2015 for spherical plain bearings, ensuring interchangeability with original SKF GEGZ31ES-2RS assemblies without fit interference issues.

The True Cost of Bearing Failure

A single unanticipated hydraulic cylinder failure in a wind farm pitch system can halt energy generation for 18–36 hours—costing $220,000+ in lost revenue and emergency mobilization. Counterfeit or non-compliant spherical plain bearings show median L10 life of 1,800 hours versus 12,500+ hours for genuine SKF-spec units under identical test conditions (SKF Grease Life Model, 2023). Installation errors—including improper press-fit interference or seal distortion—account for 30% of early failures; our engineers supply torque specs, thermal expansion allowances, and alignment tolerances before shipment. Total cost of ownership drops 27% over five years when factoring in reduced downtime, extended maintenance intervals, and avoidance of collateral damage from catastrophic seizure.

Why Engineers Specify Through Us

Authenticity & Documentation

Each bearing ships with SKF Certificate of Conformity referencing original manufacturing batch, Material Test Report (EN 10204 3.1), and Dimensional Inspection Report certified to ISO 1101 geometric tolerances. Packaging features tamper-evident holographic seal and QR-coded authenticity verification linked directly to SKF’s authorized partner database. Large-volume contracts permit third-party SKP (SKF Partner) audit or factory acceptance testing at SKF Gothenburg or Changzhou facility.

Storage & Handling Guidelines

• Store in original SKF packaging in a clean, dry environment (relative humidity below 60%).
• Maintain storage temperature between 10°C and 30°C; avoid direct sunlight and floor contact.
• Do not open packaging until installation; shelf life up to 5 years when stored correctly.
• Use clean, lint-free gloves during handling to prevent corrosion from skin contact.
• Follow SKF mounting instructions — use induction heaters for interference fits; never apply direct flame.
• Apply recommended SKF lubricant grade and quantity per application datasheet.

Start with a Technical Consultation

Before specifying any spherical plain bearing for hydraulic cylinder applications, engineers should validate dynamic load distribution, angular acceleration limits, and thermal drift margins. Send your system parameters—radial load magnitude and direction, oscillation angle and frequency, ambient and operating temperature range, available envelope dimensions, and mounting configuration—and our team will deliver a free SKF-compliant selection report with calculated L10 life, seal stress analysis, and dimensional compatibility verification within 48 business hours. Correct selection begins not with a part number—but with your operating reality.
