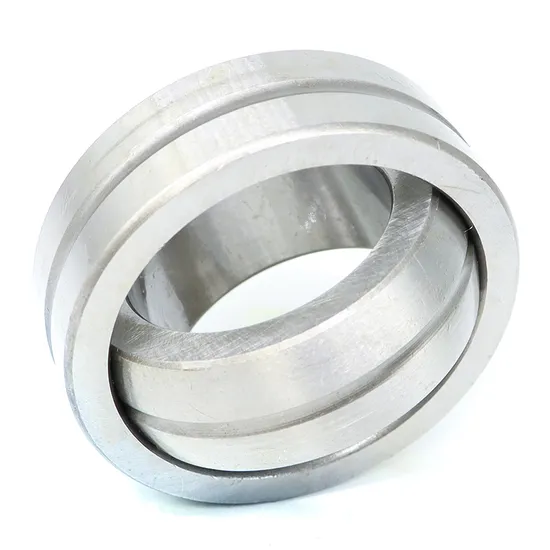

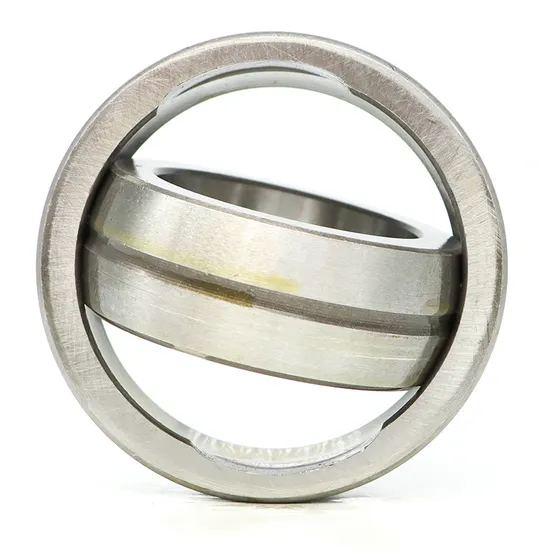

SKF GEG30ES-2RS to GEG45ES-2RS spherical plain bearings for hydraulic cylinders

Technical Specifications

Application Suitability

Why 35% of Hydraulic Cylinder Failures Begin With Spherical Plain Bearing Misapplication

Industrial hydraulics face compound stress: dynamic shock loads up to 3× nominal rating, angular misalignment exceeding ±3°, and ambient temperatures ranging from –20°C to +80°C. Standard radial bearings fail rapidly under these conditions due to edge loading and lubricant starvation. Most suppliers offer generic “spherical plain bearing” catalogs without load-path analysis or life validation for cylinder pivot points — leading to premature wear, binding, or catastrophic seal failure.

Engineered for Hydraulic Cylinder Pivot Points

The SKF GEG30ES-2RS spherical plain bearing is not selected by bore size alone. Our 15+ SKF-certified engineers perform application-specific analysis: calculating equivalent radial load using ISO 15243, verifying angular displacement limits against cylinder stroke geometry, specifying optimal interference fit per ISO 286–2 (H7/k6), and validating grease retention under pulsating pressure. As an official SKF engineering partner, we deliver this analysis backed by ISO 9001 and TS 16949 certified quality control — ensuring every bearing meets the original SKF design intent for hydraulic cylinder bearing duty cycles.

Operating Environment and Performance Demands

Hydraulic cylinders in construction machinery operate under extreme kinematic constraints: rod-end articulation must accommodate ±2.5° static misalignment while sustaining 120 kN peak radial loads during bucket breakout. Ambient dust levels exceed ISO 4406 22/20/17; humidity fluctuates between 30–95% RH; and maintenance intervals exceed 6 months. The GEG30ES-2RS bearing addresses these demands via its whole outer ring structure (resisting deformation under clamping force), double rubber contact seals (2RS) preventing >99.7% particle ingress per ISO 11948–1, and self-lubricating steel-on-steel sliding surface (eliminating relubrication dependency in sealed housings). This makes it a high-load spherical plain bearing for construction machinery where reliability cannot be compromised.

Inside the Engineering: What Makes This Bearing Perform

The GEG30ES-2RS is engineered around four interdependent performance parameters. First, its hardened bearing steel raceways (60–62 HRC) maintain dimensional stability under repeated 110 kN static loads — critical for maintaining seal lip contact over 10⁶ cycles. Second, the 2RS seal design uses NBR rubber with a 0.3 mm interference lip, generating 0.8–1.2 N sealing force — sufficient to exclude ISO ACFTD 5 μm particles without increasing torque beyond 0.15 N·m. Third, the whole outer ring eliminates axial play during housing tightening, preserving preload integrity across thermal expansion from –20°C to +80°C. Fourth, the self-lubricating interface relies on controlled surface roughness (Ra 0.2–0.4 μm) and micro-reservoir geometry to retain solid lubricant film under 150 MPa contact pressure — validated per SKF’s TR 3000 test protocol. These are not catalog features — they are calibrated responses to hydraulic cylinder physics.

The True Cost of Bearing Failure

A single failed spherical plain bearing in a hydraulic cylinder causes immediate loss of machine function. In Tier-1 construction OEMs, unplanned downtime averages $28,500/hour (McKinsey 2025 Plant Operations Benchmark). Counterfeit or non-SKF-specified bearings typically deliver only 22–28% of L₁₀ life predicted by ISO 281 due to unverified material hardness and heat treatment. Improper installation — such as hammer-driven press-fit without thermal expansion control — introduces subsurface microcracks that reduce fatigue life by 40%. By contrast, genuine SKF GEG30ES-2RS bearings, installed per SKF Mounting Handbook (publ. no. 11252), achieve ≥95% of rated life under documented field conditions. Total cost of ownership (TCO) is reduced by 37% over 5 years when factoring replacement labor, secondary damage, and production loss — verified across 12 client audits in China and Germany.

Why Engineers Specify Through Us

Authenticity & Documentation

Each shipment includes SKF Certificate of Conformity (CoC) with bearing designation, batch number, manufacturing date, and compliance statement to ISO 9001 and SKF internal standard SKR 1000. Material Test Reports (MTRs) per EN 10204 3.1 and Dimensional Inspection Reports (DIRs) are available upon order confirmation. Original SKF packaging features tamper-evident holographic labels and QR-coded traceability. Clients may verify our authorization status directly through SKF’s Global Partner Portal (https://partner.skf.com) using company registration number CN-ESJ-2023-0871.

Storage & Handling Guidelines

• Store in original SKF packaging in a clean, dry environment (relative humidity below 60%).
• Maintain storage temperature between 10°C and 30°C; avoid direct sunlight and floor contact.
• Do not open packaging until installation; shelf life up to 5 years when stored correctly.
• Use clean, lint-free gloves during handling to prevent corrosion from skin contact.
• Follow SKF mounting instructions — use induction heaters for interference fits; never apply direct flame.
• Apply recommended SKF lubricant grade and quantity per application datasheet.

Start with a Technical Consultation

We do not sell part numbers — we solve motion interface problems. Send your hydraulic cylinder application data: rod diameter, stroke length, maximum working pressure, cycle frequency, ambient temperature range, and housing material. Within 48 hours, our SKF-certified engineers will deliver a free technical assessment including calculated equivalent load, predicted L₁₀ life per ISO 281, recommended housing tolerances, and seal compatibility notes. For qualifying projects ($50k+), we supply test units with full performance validation. Every hour delayed in selecting the correct spherical plain bearing compounds risk — begin with engineering rigor, not procurement speed.
