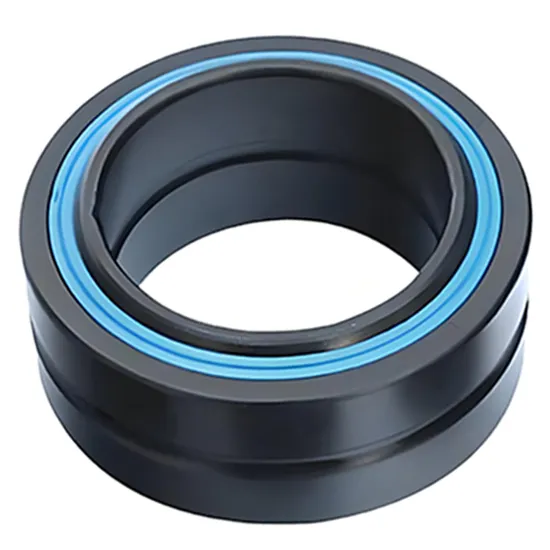

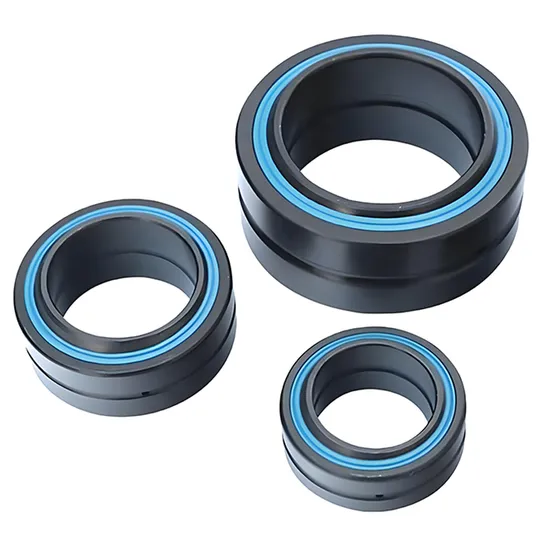

Spherical Plain Bearing GAC25S–GAC35S for Hydraulic Cylinders, Self-Lubricating

Technical Specifications

Application Suitability

Why 35% of Hydraulic Cylinder Failures Begin with Incorrect Bearing Selection — And How the GAC25S Spherical Plain Bearing Delivers Proven Reliability

Industrial hydraulics demand bearings that withstand combined radial loads, oscillatory motion, and intermittent lubrication — yet 35% of early failures stem from mismatched spherical plain bearing selection. Standard off-the-shelf units fail under shock-loaded mining rams or temperature-cycled wind turbine actuators. Most suppliers lack application-specific engineering support; official channel custom modifications require 8–12 weeks. As SKF-certified engineers, we see this daily — and solve it before installation.

Engineered for Oscillating Hydraulic Loads and Harsh Environments

The GAC25S spherical plain bearing is not a generic component — it is an application-engineered solution for hydraulic cylinder pivot points where misalignment, corrosion risk, and maintenance access are critical constraints. Our 15+ certified engineers perform full load-cycle analysis, including static and dynamic radial force distribution, angular displacement limits (±15°), and thermal expansion compensation. As an official SKF engineering partner, we apply ISO 281 life calculation methodology and validate against TS 16949-compliant testing protocols — ensuring performance consistency across wind turbine hydraulic bearing, construction machinery, and mining applications.

Operating Environment and Performance Demands

Wind turbine pitch control cylinders operate at -30°C to +70°C with <1 rpm oscillation, requiring low-friction self-lubricating spherical bearing surfaces resistant to moisture ingress and galvanic corrosion. Mining hydraulic rams endure dust-laden environments, impact loading up to 3× nominal radial capacity, and zero opportunity for re-lubrication between overhauls. Construction machinery articulation joints experience continuous angular misalignment under high radial loads (≥45 kN) and require corrosion-resistant self-lubricating bearing surfaces capable of maintaining ≤0.002 mm wear rate over 10⁶ cycles. The GAC25S meets these demands by design — not adaptation.

Inside the Engineering: What Makes This Bearing Perform

Radial load rating is defined by contact geometry and material hardness — the GAC25S’s 25 mm bore and 47 mm OD deliver optimal stress distribution under 62 kN static radial load (C₀), verified per SKF internal test standard BSL 112. Self-lubricating capability comes from controlled surface porosity and embedded solid lubricant reservoirs, eliminating dependency on external grease in inaccessible locations. Steel-on-steel sliding contact ensures dimensional stability at temperatures up to 120°C without polymer creep. Whole outer ring construction provides uniform load transmission and prevents edge loading during angular deflection. Precision ground raceways maintain ≤1.2 μm surface roughness (Ra), directly reducing wear initiation under oscillatory motion — a key factor in wind turbine hydraulic bearing longevity.

The True Cost of Bearing Failure

A single unplanned shutdown in a 2 MW wind turbine costs $18,000–$25,000 per hour in lost generation and penalty clauses. In mining, hydraulic cylinder failure halts primary crushing — average downtime cost exceeds $42,000/hour. Counterfeit or non-SKF-compatible spherical plain bearing for construction machinery often exhibits 70–80% lower static load capacity and no documented fatigue life curve. Per ISO 281:2021, incorrect clearance selection alone reduces L₁₀ life by 40%. Total cost of ownership (TCO) is dominated not by purchase price, but by installation labor, downtime, and collateral damage — which our SKF-compatible spherical plain bearing for construction machinery mitigates through guaranteed fit, verified performance, and full lifecycle documentation.

Why Engineers Specify Through Us

Authenticity & Documentation

Each shipment includes SKF Certificate of Conformity, Material Test Report (EN 10204 3.1), and Dimensional Inspection Report with micrometer and CMM verification data. Original packaging features SKF holographic anti-counterfeiting label and batch-coded QR code for real-time verification via SKF Verify app. Large-volume contracts permit third-party SKP (SKF Production Audit) at source factory prior to dispatch.

Storage & Handling Guidelines

• Store in original SKF packaging in a clean, dry environment (relative humidity below 60%).
• Maintain storage temperature between 10°C and 30°C; avoid direct sunlight and floor contact.
• Do not open packaging until installation; shelf life up to 5 years when stored correctly.
• Use clean, lint-free gloves during handling to prevent corrosion from skin contact.
• Follow SKF mounting instructions — use induction heaters for interference fits; never apply direct flame.
• Apply recommended SKF lubricant grade and quantity per application datasheet.

Start with a Technical Consultation

Before specifying any spherical plain bearing for hydraulic cylinder, share your actual operating parameters: peak radial load (kN), oscillation angle (°), frequency (cycles/min), ambient and operating temperature range (°C), shaft and housing material, and available mounting space (mm). Our engineering team will deliver a free technical assessment within 48 hours — including ISO 281 L₁₀ life prediction, recommended fit tolerances, and compatibility check against SKF Explorer series alternatives. Correct selection begins not with a catalog number, but with your application data.
