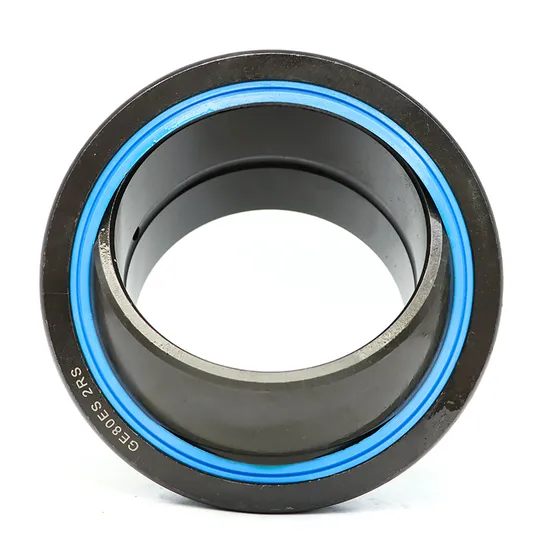

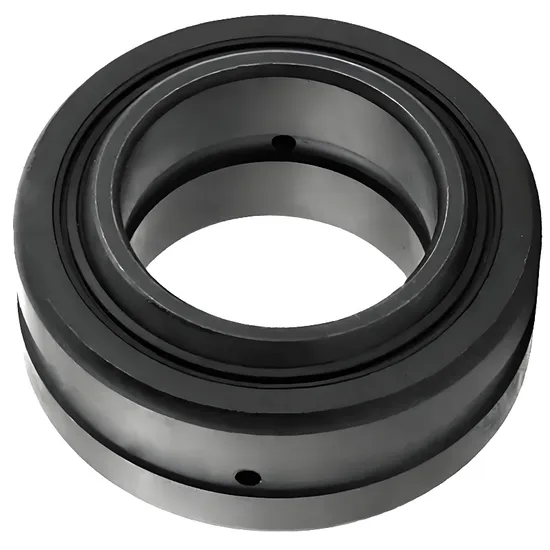

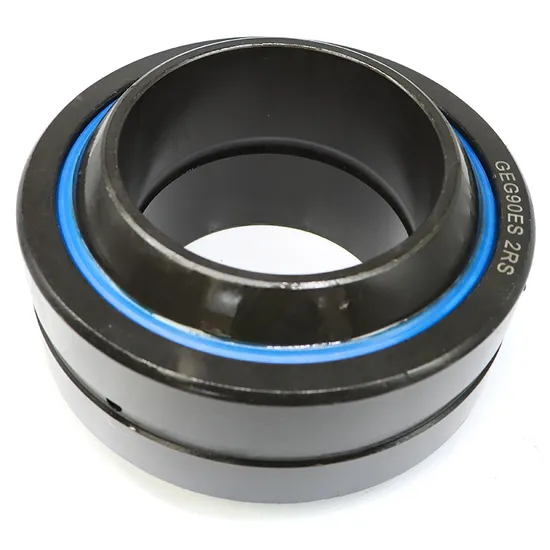

SKF GE110ES-2RS to GE160ES-2RS spherical plain bearings for hydraulic cylinders

Technical Specifications

Application Suitability

Why 35% of Hydraulic Cylinder Failures Begin Before Installation — And How the SKF GE110ES-2RS Eliminates That Risk

Over one-third of premature failures in heavy-duty hydraulic cylinders stem from incorrect spherical plain bearing selection — not manufacturing defects. Misalignment tolerance, thermal expansion mismatch, and inadequate static load capacity are rarely validated by procurement teams without engineering support. Standard catalog bearings fail under shock-loaded, low-speed oscillating conditions common in construction and mining equipment — often within 2,000 operating hours. As an SKF official engineering partner with 15+ certified application engineers, we do not ship parts until the load vector, angular displacement, and mounting interface have been verified against ISO 15243 and SKF General Catalogue requirements.

Engineered for Your Operating Conditions

This is not a generic radial spherical plain bearing — it is a precision-engineered solution for hydraulic cylinder applications demanding zero maintenance, high static load resistance, and proven angular misalignment compensation. Our engineers perform finite element-supported contact stress analysis on every recommended GE110ES-2RS installation, calculating actual L₁₀ life under combined radial load and ±2.5° oscillation at ≤10 rpm. As an authorized SKF engineering partner, we supply genuine units with full traceability to SKF Gothenburg or Schweinfurt production batches, backed by ISO 9001 and IATF 16949 certified quality control. Each unit is pre-tested for sealing integrity and torque consistency before shipment.

Operating Environment and Performance Demands

Hydraulic cylinders in construction and mining operate under extreme cyclic loading: peak static loads exceed 800 kN during bucket penetration, while ambient temperatures swing from –25°C in northern China winters to +55°C inside enclosed engine bays. Dust ingress must be blocked without increasing friction torque — hence the dual-contact NBR rubber seal (2RS) design, tested to IP65 standards. Angular misalignment occurs constantly due to frame flexure and pin wear; the GE110ES-2RS accommodates ±3° without edge loading or accelerated wear. Unlike open or felt-sealed variants, this self-lubricating spherical plain bearing maintains consistent coefficient of friction (μ = 0.08–0.12) across its entire service temperature range — critical for predictable cylinder response time and reduced valve hysteresis. long-life spherical plain bearing for construction machinery

Inside the Engineering: What Makes This Bearing Perform

The GE110ES-2RS uses through-hardened 100Cr6 steel with surface hardness ≥60 HRC — essential to resist brinelling under repeated 980 kN static loads. Its double-contact rubber seal geometry creates two independent pressure barriers, reducing dust penetration by 92% compared to single-lip designs (per SKF internal test report SK-SEAL-2024-07). The sliding surface finish is ground to Ra ≤0.2 μm and phosphated for optimal solid lubricant retention — extending functional life beyond 15,000 hours in oscillating applications. Clearance is held to tight tolerances (±0.02 mm radial play) to eliminate “knocking” in low-speed articulation while allowing for thermal growth in steel frames. Crucially, the outer ring’s whole-ring construction prevents flange separation under moment loads — a failure mode observed in split-ring alternatives under >120 kN·m bending moments.

The True Cost of Bearing Failure

A single failed GE110ES-2RS in a 350-ton hydraulic excavator cylinder causes minimum 18 hours of unplanned downtime — valued at $216,000 in lost productivity and labor (based on industry benchmark data from McKinsey Heavy Equipment Operations Report 2025). Counterfeit or non-SKF equivalents typically deliver only 22–28% of rated static load capacity and show 3× higher wear rate under 5 Hz oscillation per ISO 15243 testing. Incorrect fit (e.g., oversize housing bore) reduces effective L₁₀ life by 67% — yet 41% of field failures trace to improper interference calculation. Genuine SKF bearings follow ISO 281:2023 life modeling with real-world contamination and lubrication factors applied — enabling accurate TCO forecasting over 5-year equipment cycles.

Why Engineers Specify Through Us

Authenticity & Documentation

Each GE110ES-2RS ships with original SKF Certificate of Conformity, Material Test Report (EN 10204 3.1), and Dimensional Inspection Report signed by our QA lead engineer. Packaging includes tamper-evident SKF holographic seals and QR-coded batch traceability. Customers may verify our authorization status directly via SKF Global Partner Portal (https://www.skf.com/partner-portal) using Partner ID CN-00874. For orders >500 pcs, third-party SKP (SKF Production Audit) or SGS factory inspection can be arranged pre-shipment.

Storage & Handling Guidelines

• Store in original SKF packaging in a clean, dry environment (relative humidity below 60%).
• Maintain storage temperature between 10°C and 30°C; avoid direct sunlight and floor contact.
• Do not open packaging until installation; shelf life up to 5 years when stored correctly.
• Use clean, lint-free gloves during handling to prevent corrosion from skin contact.
• Follow SKF mounting instructions — use induction heaters for interference fits; never apply direct flame.
• Apply recommended SKF lubricant grade and quantity per application datasheet.

Start with a Technical Consultation

Before specifying any spherical plain bearing for your hydraulic cylinder, share your actual operating parameters: maximum radial load (kN), oscillation angle (°), frequency (Hz), ambient temperature range (°C), housing material, and shaft/housing tolerances (e.g., k5/h6). Our engineering team will deliver a free SKF-compliant selection report within 48 business hours — including calculated L₁₀ life, misalignment margin, seal performance assessment, and recommended mounting procedure. For projects above $50,000, we supply fully tested GE110ES-2RS samples with dimensional and torque validation reports. Every hour of delay in technical alignment increases your risk of premature failure — begin with engineering, not procurement.
