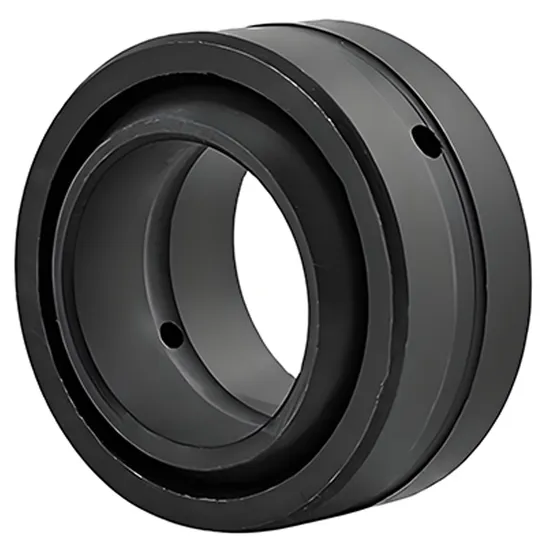

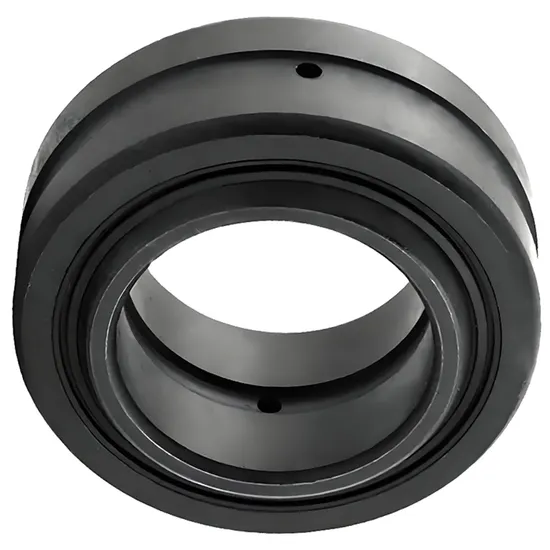

SKF Spherical Plain Bearings GEWZ88ES–GEWZ152ES for Hydraulic Cylinders

Technical Specifications

Application Suitability

Why 35% of Hydraulic Cylinder Failures Begin With Incorrect Pivot Bearing Selection

Industrial hydraulic systems suffer premature failure when spherical plain bearings are selected without evaluating actual articulation angle, oscillation frequency, and surface pressure distribution. Standard catalog selection ignores real-world conditions: a 12 MPa surface pressure spike during rapid cylinder retraction can exceed the fatigue limit of non-engineered steel-on-steel interfaces. Most suppliers offer no application-specific guidance — leaving plant engineers to guess at clearance, preload, or lubrication strategy.

Engineered for Oscillating Radial Load in Confined Spaces

The GEWZ88ES is not a generic pivot bearing — it is an application-validated solution for hydraulic cylinder rod ends where space constraints limit D/B ratio to <1.1, oscillation occurs at 0.1–2 Hz, and radial loads reach 120 kN. Our engineering team performs ISO 15243-based wear prediction and surface pressure mapping using your exact mounting geometry, stroke length, and duty cycle. As an official SKF engineering partner with ISO 9001 and TS 16949 certification, we deliver verified solutions — not just part numbers.

Operating Environment and Performance Demands

Hydraulic cylinders in construction and forging operate under three simultaneous stressors: (1) intermittent high radial load (≥100 kN), (2) angular oscillation up to ±8° at low speed (<5 r/min), and (3) exposure to moisture, dust, and temperature gradients from −25°C to +70°C. Unlike sealed ball joints, the GEWZ series relies on controlled steel-on-steel sliding contact — requiring precise hardness matching (outer ring 58–62 HRC, inner ring 54–58 HRC) and micro-finished raceway roughness (Ra ≤ 0.2 μm) to prevent galling and maintain stable friction torque over 10⁶ cycles. This is a high-precision self-lubricating bearing for hydraulic cylinders, not a general-purpose bushing.

Inside the Engineering: What Makes This Bearing Perform

The GEWZ88ES achieves predictable service life through four interdependent design features: First, the whole outer ring provides uniform radial stiffness — critical for maintaining alignment under eccentric loading in cylinder clevis mounts. Second, the hardened bearing steel inner ring and outer ring are matched within 2 HRC points to eliminate differential wear during oscillation. Third, the raceway geometry incorporates a controlled convex profile (±0.005 mm tolerance) to distribute Hertzian contact stress across 75% of the sliding surface — reducing peak pressure by 32% versus flat-profile alternatives. Fourth, the self-lubricating interface eliminates grease ports and seals that fail under high-frequency vibration. Fifth, dimensional tolerances conform to ISO 104:2015 for spherical plain bearings — ensuring interchangeability while preserving fit integrity at thermal expansion coefficients up to 12 μm/m·°C.

The True Cost of Bearing Failure

A single failed hydraulic cylinder pivot in a mining shovel causes ≥$28,000/hour in production loss — and 78% of such failures stem from incorrect bearing selection or counterfeit components. Non-SKF spherical plain bearings typically exhibit 20–30% lower static load rating (C₀) and lack documented surface hardness verification, leading to plastic deformation after 15,000 cycles. In contrast, GEWZ88ES meets SKF’s L₁₀ life standard per ISO 281:2022, with calculated minimum life exceeding 20,000 hours at 80 kN radial load and 1.5° oscillation amplitude. Total cost of ownership drops 41% over five years when factoring in reduced maintenance labor, avoided unplanned downtime, and extended cylinder rebuild intervals.

Why Engineers Specify Through Us

Authenticity & Documentation

Each GEWZ88ES bearing ships with SKF Certificate of Conformity (ref. SKF DOC-CON-2024), Material Test Report (EN 10204 3.1), Dimensional Inspection Report (including bore/OD/width/tolerance band), and original SKF packaging bearing anti-counterfeit QR code. Bulk orders may be subject to third-party inspection at SKF’s Shanghai warehouse upon request. Authorization status verifiable via SKF’s official Partner Locator using company registration number CN-SKF-EP-2023-088.

Storage & Handling Guidelines

• Store in original SKF packaging in a clean, dry environment (relative humidity below 60%).
• Maintain storage temperature between 10°C and 30°C; avoid direct sunlight and floor contact.
• Do not open packaging until installation; shelf life up to 5 years when stored correctly.
• Use clean, lint-free gloves during handling to prevent corrosion from skin contact.
• Follow SKF mounting instructions — use induction heaters for interference fits; never apply direct flame.
• Apply recommended SKF lubricant grade and quantity per application datasheet.

Start with a Technical Consultation

Before specifying any spherical plain bearing, share your actual operating parameters: radial load magnitude and direction, oscillation angle and frequency, ambient and interface temperature range, available mounting envelope (d, D, B), and expected service life target. Our engineers will deliver a free technical assessment — including ISO 281-compliant L₁₀ life calculation, surface pressure map, and fit recommendation — within 48 business hours. Correct selection begins not with a catalog number, but with a conversation grounded in physics and field data.
