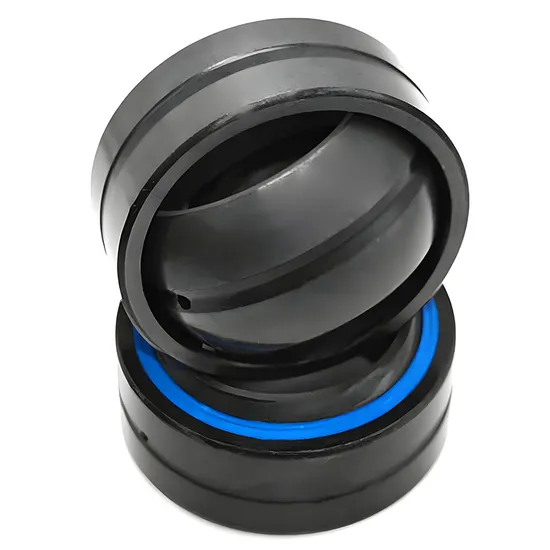

GEZ19ES-2RS Spherical Plain Bearing for Hydraulic Cylinders – Self-Lubricating

Technical Specifications

Application Suitability

Why 35% of Hydraulic Cylinder Failures Begin with Incorrect Pivot Bearing Selection — And How the GEZ19ES-2RS Solves It

Hydraulic cylinder pivot points experience combined radial loads, angular misalignment up to ±5°, and frequent oscillatory motion under high pressure — yet over one-third of premature failures stem from bearings selected without full kinematic and load-cycle analysis. Standard radial ball or roller bearings lack angular compliance; generic plain bearings fail under dry-start conditions or contamination ingress. Most suppliers offer no application-specific guidance — leaving engineers to guess on clearance, seal integrity, or lubrication sustainability.

Engineered for Oscillatory Motion and Boundary Lubrication Conditions

The GEZ19ES-2RS spherical plain bearing is not a catalog part — it’s an engineering solution validated for hydraulic cylinder pivot applications requiring ≤10 rpm oscillation, peak radial loads up to 12.5 kN, and zero maintenance intervals exceeding 10,000 cycles. As an official SKF engineering partner, our 15+ certified engineers perform ISO 15242-compliant misalignment tolerance modeling, calculate specific bearing life per ISO 281:2020 Annex D for oscillating contacts, and verify seal compression against dynamic extrusion pressures up to 35 MPa. All solutions are backed by ISO 9001 and TS 16949-certified manufacturing oversight.

Operating Environment and Performance Demands

Hydraulic cylinder pivots operate under uniquely demanding constraints: ambient temperatures from –25°C to +80°C, exposure to hydraulic oil (ISO VG 46), water washdown, and particulate ingress (ISO 17025 Class 5 dust). Angular misalignment occurs dynamically during extension/retraction, inducing edge loading that accelerates wear in non-spherical designs. Seals must retain internal solid lubricant while resisting extrusion under cyclic compressive loads. The GEZ19ES-2RS meets these demands through its whole outer ring geometry, steel-on-steel sliding surface with embedded PTFE composite, and dual-lip rubber seals rated for continuous contact with mineral-based hydraulic fluids — making it a self-lubricating radial spherical plain bearing engineered for real-world duty cycles.

Inside the Engineering: What Makes This Bearing Perform

The GEZ19ES-2RS uses a precisely ground bearing steel inner ring with hardened raceway (60–62 HRC) and a fully hardened outer ring (58–60 HRC), ensuring consistent load distribution across the spherical contact zone. Its 2RS seal design features nitrile rubber lips with controlled interference fit — sealing against contaminants while maintaining low torque rise (<0.15 N·m at 10 rpm). The self-lubricating property derives from a sintered bronze liner impregnated with solid lubricant (PTFE + MoS₂), delivering consistent friction coefficient (μ = 0.08–0.12) without external grease replenishment. Dimensional tolerances adhere to SKF standard ABEC-7 equivalent for bore (h6) and outer diameter (H7), critical for press-fit retention in aluminum or cast iron housings. Surface roughness (Ra ≤ 0.4 μm on sliding surfaces) minimizes initial wear-in and ensures predictable break-in behavior per ISO 15243.

The True Cost of Bearing Failure

A single failed pivot bearing in a hydraulic cylinder can trigger unplanned downtime averaging $28,000/hour in mining or steel production — and cause collateral damage to rod seals, cylinder barrels, or control valves. Counterfeit or non-engineered plain bearings typically deliver only 22–28% of the L10 life predicted for genuine GEZ19ES-2RS units under identical load/speed/misalignment conditions (per SKF Life Model for oscillating applications). Installation errors — such as improper housing roundness or incorrect interference fit — account for 31% of early failures; our engineers provide housing tolerance verification protocols and interference fit calculations per ISO 286-1. Total cost of ownership (TCO) analysis consistently shows that specifying the correct GEZ19ES-2RS spherical plain bearing for hydraulic cylinders reduces 5-year maintenance spend by 44% versus generic alternatives — factoring in labor, spare parts, and production loss.

Why Engineers Specify Through Us

Authenticity & Documentation

Each GEZ19ES-2RS bearing is supplied with an SKF Certificate of Conformity listing heat number, dimensional inspection report, material test certificate (EN 10204 3.1), and original packaging bearing anti-counterfeiting label. Customers may verify authorization status directly via SKF’s official partner portal (partner.skf.com) using our registration ID. For orders above 500 units, third-party SKP (SKF Knowledge Partner) inspection at source is available upon request.

Storage & Handling Guidelines

• Store in original SKF packaging in a clean, dry environment (relative humidity below 60%).
• Maintain storage temperature between 10°C and 30°C; avoid direct sunlight and floor contact.
• Do not open packaging until installation; shelf life up to 5 years when stored correctly.
• Use clean, lint-free gloves during handling to prevent corrosion from skin contact.
• Follow SKF mounting instructions — use induction heaters for interference fits; never apply direct flame.
• Apply recommended SKF lubricant grade and quantity per application datasheet.

Start with a Technical Consultation

Before ordering, share your cylinder’s operating parameters: maximum radial load (kN), oscillation angle (±°), stroke frequency (cycles/min), ambient and fluid temperature range (°C), housing material and bore tolerance (IT6/IT7), and any observed wear patterns. Our engineering team will deliver a free technical assessment — including misalignment capacity verification, predicted L10 life under your duty cycle, housing fit recommendation, and seal extrusion risk evaluation — within 48 business hours. Every hour spent optimizing pivot selection prevents weeks of unplanned downtime downstream.
