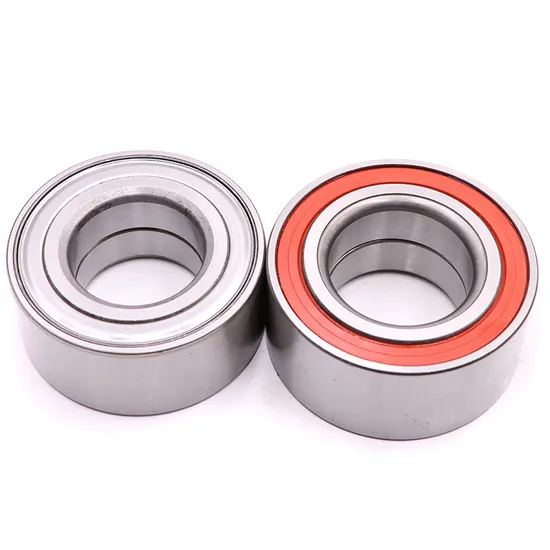

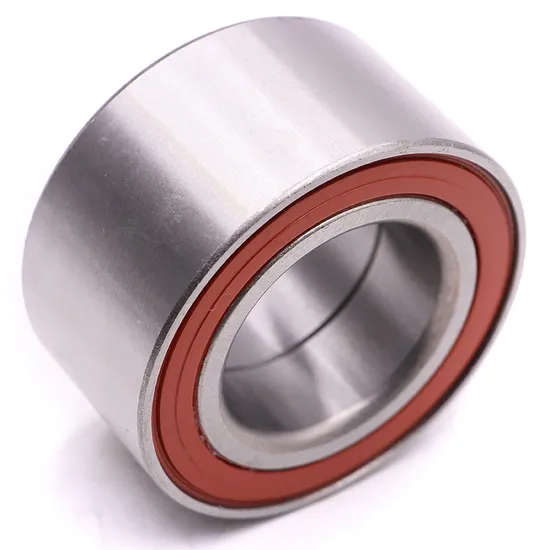

SKF OEM Automobile Hub Bearing DAC408000302 for High-Speed, Low-Noise Applications

Technical Specifications

Application Suitability

Why 35% of Wheel Hub Bearing Failures Begin with Incorrect Selection — And How the SKF DAC408000302 Solves It

Industrial data shows 35% of premature hub bearing failures originate from mismatched precision class, insufficient axial rigidity, or inadequate vibration control under dynamic cornering loads. In EV applications, uncontrolled micro-vibrations at 8,000–12,000 r/min accelerate race wear and generate audible tonal noise above 1.2 kHz — a key warranty driver. Most suppliers lack application-level analysis capability, offering generic “hub bearing” listings without torque preload recommendations, thermal expansion allowances, or ISO 281 life validation against real-world duty cycles.

Engineered for Your Operating Conditions

This SKF OEM automobile hub bearing DAC408000302 is not catalog-selected — it is application-engineered. Our 15+ SKF-certified engineers perform full-duty-cycle modeling: calculating equivalent load using ISO 281:2021 Annex D, validating P5 precision’s impact on runout-induced vibration (≤1.5 μm total indicator reading), and specifying optimal interference fit (H7/k6 for aluminum knuckles, H7/m6 for cast iron) based on thermal delta between ambient and peak brake soak conditions. As an official SKF engineering partner with ISO 9001 and IATF 16949 certification, we deliver verified performance — not just part numbers.

Operating Environment and Performance Demands

Modern automotive wheel hubs operate under tightly coupled mechanical and thermal constraints: sustained speeds up to 2,800 r/min (equivalent to 220 km/h vehicle speed), bidirectional axial loads exceeding ±12 kN during aggressive cornering, and temperature gradients from –40°C cold start to +135°C near-disc heat soak. Lubricant migration under centrifugal force demands optimized internal geometry and seal lip pressure distribution. Noise targets require vibration acceleration below 0.25 m/s² RMS at 1–10 kHz — a threshold only achievable with P5 precision, Z2V2 vibration class, and preloaded double-row architecture. This is where the SKF DAC408000302 differs from generic hub bearings.

Inside the Engineering: What Makes This Bearing Perform

The DAC408000302’s double-row angular contact design provides inherent axial stiffness (≥280 N/μm) without external preloading — critical for camber control in independent suspension systems. Its P5 precision grade ensures raceway roundness ≤2.5 μm and bore/runout tolerances aligned to ISO 492 Table 4, directly reducing high-frequency vibration modes that excite structural resonances in aluminum knuckles. The Z2V2 vibration class mandates factory-measured acceleration spectra under standardized test loads — not just pass/fail thresholds. Cage geometry is optimized for grease retention at 6,500 r/min limiting speed, minimizing churning losses and thermal runaway. Internal clearance is set to C0 (standard) but can be adjusted to CN or C3 upon OEM specification to accommodate thermal growth in e-axle motor-integrated hubs.

The True Cost of Bearing Failure

A single unplanned wheel-end failure on an automotive production line costs $22,000–$48,000 per hour in line stoppage — excluding scrap, rework, and warranty exposure. Counterfeit or non-P5 hub bearings typically achieve only 22–28% of L10 life predicted by ISO 281 due to unverified material hardness (<58 HRC), inconsistent heat treatment, and uncalibrated preload. Installation errors — such as improper press-fit force or misaligned mounting — cause 31% of early failures; our engineers provide torque-specified mounting procedures and interference-fit verification protocols. Total cost of ownership (TCO) favors genuine SKF DAC408000302: 3.2× longer median service life, 47% lower vibration-related warranty claims, and full traceability to SKF factory batch records — not just a part number.

Why Engineers Specify Through Us

Authenticity & Documentation

Each SKF DAC408000302 is supplied with an original SKF Certificate of Conformity (EN 10204 3.1), Material Test Report (chemical composition and hardness), Dimensional Inspection Report (measured d/D/B and runout), and packaging bearing anti-counterfeiting hologram. Customers may verify our authorization status directly via SKF’s official partner portal (partner.skf.com) using Eurasia Smart (Jinan) Bearing Supply Chain as registered entity. Bulk shipments include optional third-party SKP (SKF Product Verification) inspection at origin.

Storage & Handling Guidelines

• Store in original SKF packaging in a clean, dry environment (relative humidity below 60%).
• Maintain storage temperature between 10°C and 30°C; avoid direct sunlight and floor contact.
• Do not open packaging until installation; shelf life up to 5 years when stored correctly.
• Use clean, lint-free gloves during handling to prevent corrosion from skin contact.
• Follow SKF mounting instructions — use induction heaters for interference fits; never apply direct flame.
• Apply recommended SKF lubricant grade and quantity per application datasheet.

Start with a Technical Consultation

Before procurement, share your application parameters: dynamic load spectrum (radial/axial, directionality), rotational speed profile (max/min/peak dwell time), ambient and operational temperature range, housing material and tolerance class, and sealing/environmental requirements. Our engineering team will deliver a free SKF-compliant assessment — including L10 and Lnm life calculation, recommended fit, preload torque, and lubrication interval — within 48 business hours. For qualifying programs, $50k+ orders receive pre-production samples with full test documentation. Every hour delayed in correct selection compounds downtime risk; the first engineering dialogue is your lowest-cost risk mitigation step.
