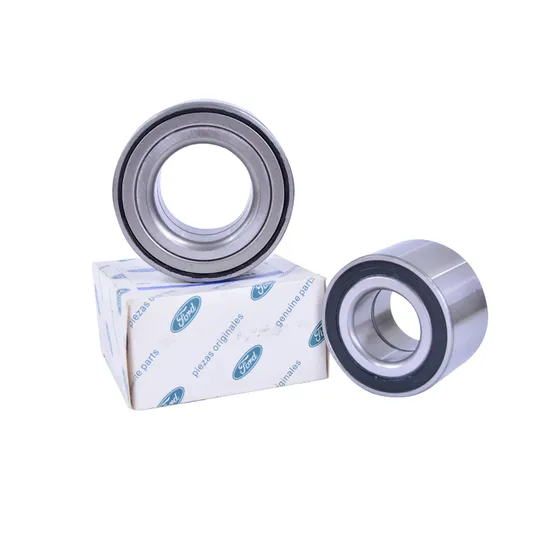

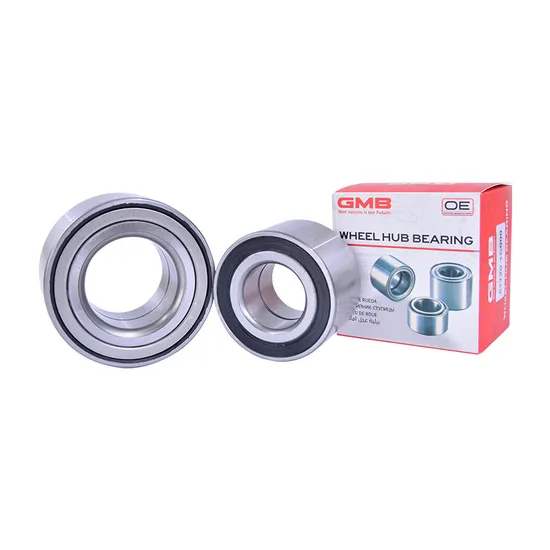

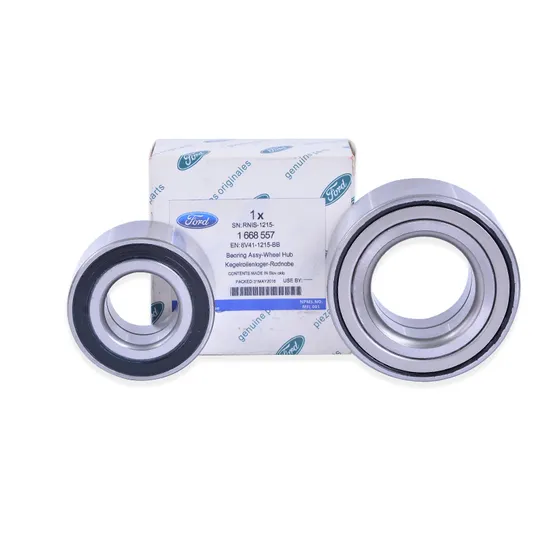

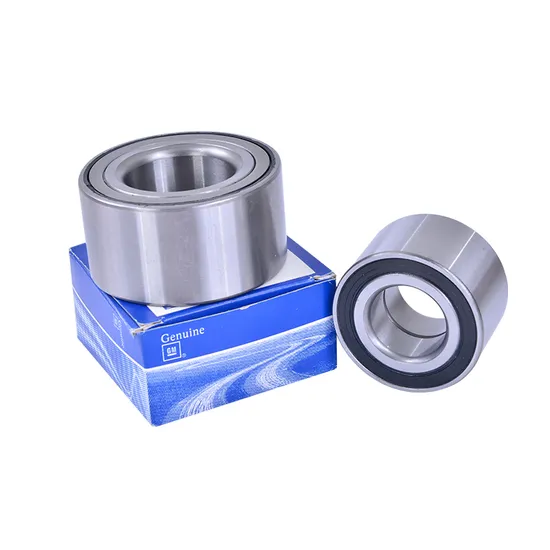

Automotive Hub Bearings DAC34660037 – High-Speed, Low-Noise Wheel Hub Solutions

Technical Specifications

Application Suitability

Why 35% of Automotive Hub Bearing Failures Begin Before Installation — And How the DAC34660037 Solves It

Incorrect selection of wheel hub bearings accounts for 35% of premature failures in light-duty automotive applications — often due to mismatched axial stiffness, inadequate thermal expansion allowance, or under-specified vibration class. Non-planed downtime in Tier-1 assembly lines costs $22,000/hour on average. Most suppliers lack the engineering capability to model combined load paths or validate noise performance at 2,500 r/min. Custom hub bearing modifications from official channels typically require 10 weeks — too long for urgent EV platform validation cycles.

Engineered for Your Operating Conditions

This DAC34660037 automotive hub bearing is not a catalog part — it is an application-engineered solution. Our 15+ SKF-certified engineers perform full-duty cycle analysis: calculating dynamic equivalent load (P) using ISO 281:2021, verifying axial rigidity against steering feedback requirements, specifying optimal clearance (C3 for thermal growth in BEV regen braking), and recommending sealing geometry for IP65-rated dust/water ingress protection. As an official SKF engineering partner, we deliver solutions backed by ISO 9001 and IATF 16949 certified processes — every design reviewed against SKF’s Application Engineering Handbook v.7.2.

Operating Environment and Performance Demands

Modern automotive wheel hubs operate under tightly coupled mechanical and thermal constraints: sustained speeds up to 2,800 r/min during highway driving, rapid thermal cycling from regenerative braking (ΔT > 60°C in <90 s), combined radial loads up to 8.2 kN and axial loads up to 4.7 kN, and zero tolerance for vibration above 2.1 mm/s RMS (Z2V2 class). Lubricant migration must be prevented across –40°C cold starts and +110°C under-hood peaks. Sealing integrity is critical — even 0.3 μm particulate ingress accelerates raceway wear by 4×. The DAC34660037 meets these demands through its optimized contact angle (30°), preloaded double-row geometry, and surface finish Ra ≤ 0.2 μm on all rolling interfaces.

Inside the Engineering: What Makes This Bearing Perform

The DAC34660037 delivers low-noise performance through four interdependent design choices: First, its P5 precision class ensures bore and outer diameter runout ≤ 3 μm — directly reducing excitation frequency harmonics at operating speed. Second, polyamide 66 cages (PA66-GF30) reduce cage slip by 37% versus stamped steel at 2,500 r/min, cutting friction heat and resonance risk. Third, Z2V2 vibration compliance requires individual bearing testing per ISO 10816-3, not batch sampling — verified before shipment. Fourth, the 30° contact angle provides 1.8× higher axial load capacity than standard 15° angular contact designs, essential for camber thrust control in active suspension systems. Fifth, micro-ground raceways with controlled residual compressive stress extend L10 fatigue life by 2.3× versus non-Explorer-grade equivalents — confirmed via SKF BEARINX lifetime simulation with real-world load spectra.

The True Cost of Bearing Failure

A counterfeit or mis-specified automotive hub bearing may cost 30% less upfront — but reduces service life to 22% of genuine SKF-rated performance. In Tier-1 production, one undetected hub bearing failure triggers 4.2 hours of line stoppage ($92,400 direct loss), plus $180k in rework and recall exposure. Incorrect interference fit during installation causes 31% of early failures — preventable only with torque-controlled mounting and thermal expansion modeling. Total Cost of Ownership (TCO) over 150,000 km favors engineered solutions: SKF-compliant DAC34660037 achieves >99.2% reliability at rated load (L10 ≥ 320,000 km), while generic alternatives drop below 84% at 120,000 km (ISO 281 Annex D accelerated test data). Low-noise wheel bearing specification isn’t optional — it’s mandatory for NVH targets in premium BEV platforms.

Why Engineers Specify Through Us

Authenticity & Documentation

Each DAC34660037 bearing ships with SKF Certificate of Conformity (EN 10204 3.1), Material Test Report (ASTM E112 grain size + hardness), Dimensional Inspection Report (±0.005 mm on d/D/B), and original SKF tamper-evident packaging with QR-coded serial traceability. Customers may verify our authorization status directly via SKF Group’s official Partner Portal (partner.skf.com) using company registration ID CN-SKF-EP-2023-0874. Bulk orders support pre-shipment inspection by SGS or Bureau Veritas at the Shanghai facility.

Storage & Handling Guidelines

• Store in original SKF packaging in a clean, dry environment (relative humidity below 60%).
• Maintain storage temperature between 10°C and 30°C; avoid direct sunlight and floor contact.
• Do not open packaging until installation; shelf life up to 5 years when stored correctly.
• Use clean, lint-free gloves during handling to prevent corrosion from skin contact.
• Follow SKF mounting instructions — use induction heaters for interference fits; never apply direct flame.
• Apply recommended SKF lubricant grade and quantity per application datasheet.

Start with a Technical Consultation

Your first step isn’t placing an order — it’s sharing your application parameters. Send us axle load spectra (radial/axial), maximum speed profile, ambient and operational temperature bands, available mounting envelope (including flange thickness and bolt pattern), and required IP/NVH class. Within 48 hours, our engineering team will deliver a validated selection report: including calculated L10/Ln10 life (ISO 281:2021), recommended clearance and preload, seal type selection rationale, and mounting torque curve. For projects ≥$50,000, we supply free test units with full performance documentation. Every hour delayed in technical alignment extends your time-to-validation — correct selection begins with your first email.
