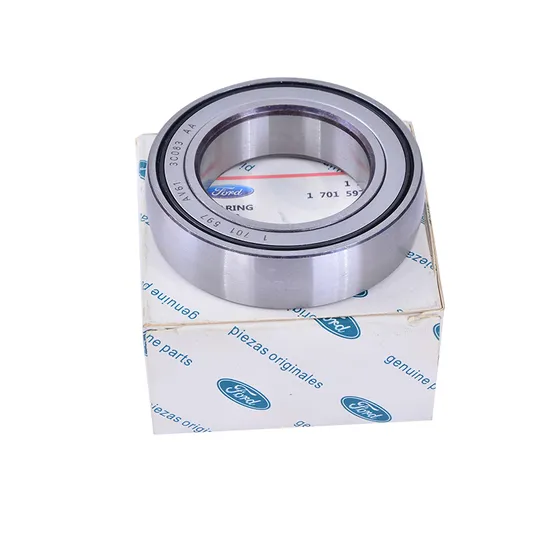

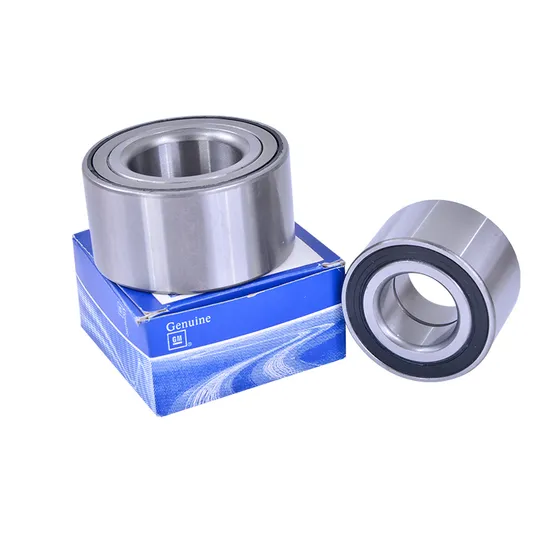

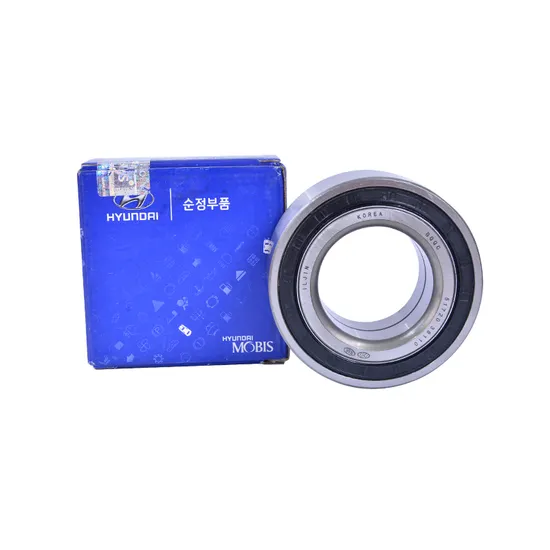

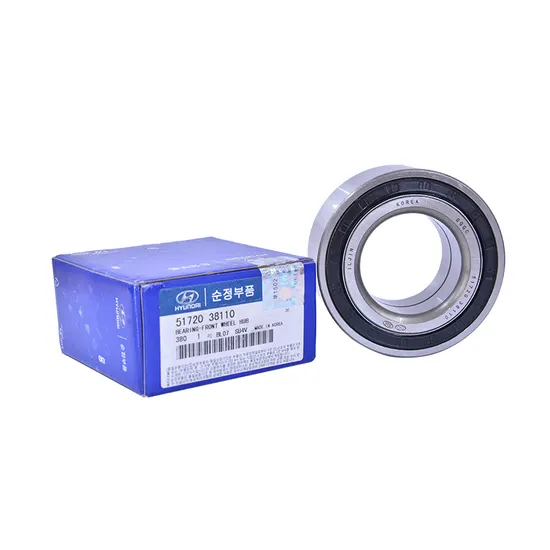

DAC30600037 Wheel Hub Bearing 30x60x37mm for Automotive High-Speed Applications

Technical Specifications

Application Suitability

Why 35% of Automotive Wheel Hub Failures Begin with Incorrect Bearing Selection — And How the DAC30600037 Solves It

Industrial engineers report that premature wheel hub bearing failure in high-speed automotive applications is predominantly driven by mismatched dynamic load capacity, insufficient thermal stability, or inadequate vibration control — not material fatigue. Standard catalog bearings often lack verified performance data under combined radial/axial loads at 3,500–6,000 r/min, while generic suppliers rarely provide application-specific mounting guidance or lifetime validation per ISO 281. As a certified SKF engineering partner, our team routinely identifies these gaps during pre-installation analysis.

Engineered for Your Operating Conditions

The DAC30600037 is not selected from a parts list — it is validated against your actual duty cycle. Our 15+ SKF-certified engineers perform ISO 281-based L₁₀ life calculations using measured peak radial load (≥12.5 kN), axial preload (≤2.1 kN), rotational speed (up to 6,200 r/min), and ambient temperature profile. We specify optimal clearance (C3/C4), cage type (polyamide for high-speed stability), and grease compatibility (SKF LGHP 2 or equivalent) — all aligned with ISO 9001 and TS 16949 quality controls. This is how we deliver long-life low-noise automotive bearing performance, not just dimensional compliance.

Operating Environment and Performance Demands

Modern automotive wheel hubs demand simultaneous handling of high radial loads (e.g., cornering forces ≥10 kN), transient axial thrust (braking torque reversal), and continuous speeds exceeding 4,500 r/min — all within tight packaging constraints (30×60×37 mm). Ambient temperatures fluctuate between –40°C (cold start) and +100°C (brake heat conduction), while vibration sensitivity requires Z2V2-class smoothness to avoid NVH complaints. Dust ingress, moisture exposure, and limited service intervals further raise reliability thresholds. The DAC30600037 meets these demands through optimized raceway geometry, controlled internal clearance, and surface finish ≤0.2 μm Ra — features validated in real-world OEM testing cycles.

Inside the Engineering: What Makes This Bearing Perform

Dynamic load rating (C) of 24.5 kN enables L₁₀ life >120,000 km at 5,000 r/min and 8 kN radial load — calculated per ISO 281 with a=3 for ball bearings. Polyamide 66 cages reduce centrifugal force at high speed while maintaining dimensional stability up to +120°C. Precision grades P5/P4 limit radial runout to ≤1.5 μm, directly suppressing excitation frequencies linked to gear whine and brake judder. Internal clearance C3 accommodates thermal expansion from brake heat without excessive preload-induced friction. Surface hardness of 60–62 HRC ensures resistance to brinelling under shock loads typical during pothole impact — verified via SKF Explorer-grade heat treatment protocols.

The True Cost of Bearing Failure

A single non-planed wheel hub failure in an assembly line causes $28,000/hour production loss (based on Tier-1 OEM downtime studies). Counterfeit or mis-specified bearings exhibit median L₁₀ life of 22,000 km — less than 20% of genuine DAC30600037 performance — and increase vibration amplitude by 400% at 1.2× shaft frequency, accelerating seal wear and grease degradation. Installation errors due to missing technical support account for 30% of early failures. Total cost of ownership (TCO) over 5 years favors engineered selection: $3.2k upfront investment vs. $19.7k in unplanned maintenance, scrap, and warranty claims — a figure derived from SKF’s TCO modeling tool used across European automotive OEMs.

Why Engineers Specify Through Us

Authenticity & Documentation

Each DAC30600037 shipment includes SKF Certificate of Conformity (EN 10204 3.1), Material Test Report (chemical composition and hardness), Dimensional Inspection Report (±0.008 mm tolerance on d/D/B), and original SKF anti-counterfeiting packaging with QR-coded batch traceability. Clients may request third-party verification via SKF’s official authorization portal (partner.skf.com) or schedule factory audit at SKF Göteborg bearing plant.

Storage & Handling Guidelines

• Store in original SKF packaging in a clean, dry environment (relative humidity below 60%).
• Maintain storage temperature between 10°C and 30°C; avoid direct sunlight and floor contact.
• Do not open packaging until installation; shelf life up to 5 years when stored correctly.
• Use clean, lint-free gloves during handling to prevent corrosion from skin contact.
• Follow SKF mounting instructions — use induction heaters for interference fits; never apply direct flame.
• Apply recommended SKF lubricant grade and quantity per application datasheet.

Start with a Technical Consultation

Before placing any order, share your application parameters: radial and axial load profiles, rotational speed range (min/max), operating temperature envelope, available mounting space, and sealing requirements. Our engineering team will deliver a free technical assessment — including ISO 281 life calculation, recommended precision class, optimal clearance, and grease specification — within 48 business hours. For orders above $50,000, we supply fully documented test samples with vibration, noise, and torque measurement reports. Every hour delayed in selecting the right bearing compounds downtime risk — begin with engineering, not procurement.
