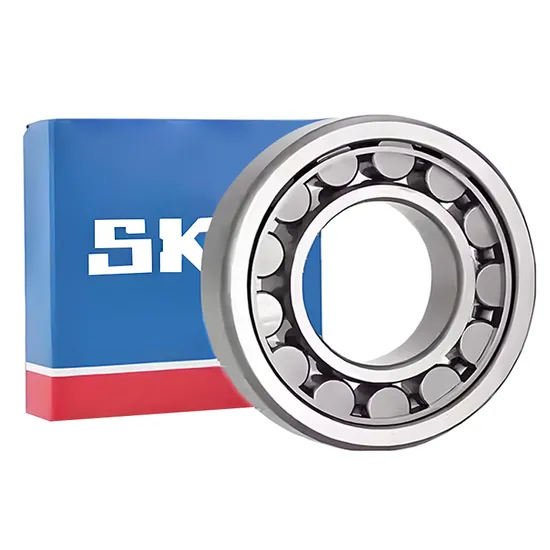

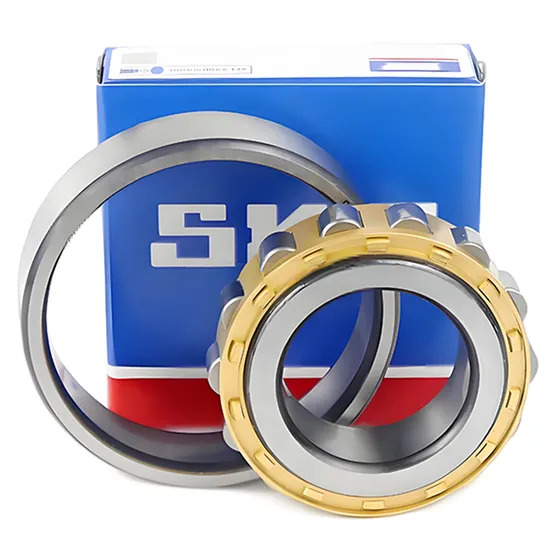

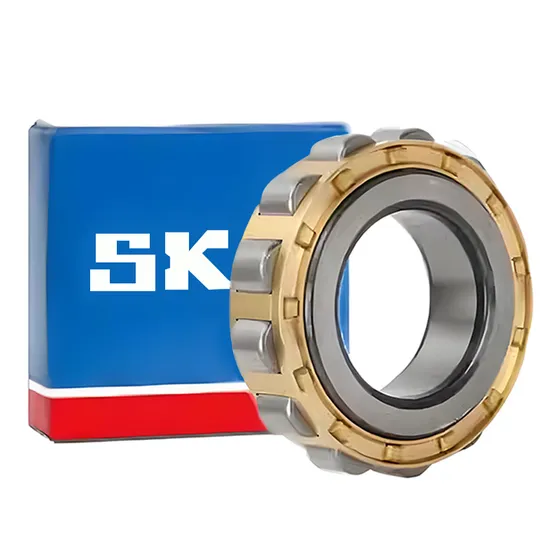

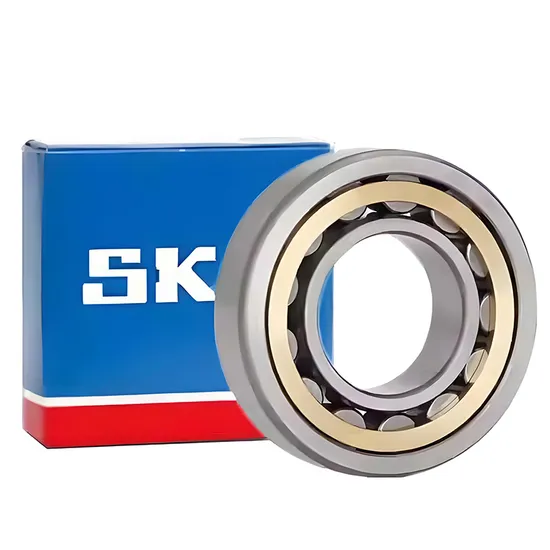

SKF N204EM cylindrical roller bearing for high-speed radial load applications

Technical Specifications

Application Suitability

Why 35% of Radial Bearing Failures Begin Before Installation — And How the SKF N204EM Bearing Addresses Root Causes

Industrial data shows 35% of premature bearing failures stem from incorrect selection for radial load dynamics, thermal expansion, or mounting constraints—not material fatigue. In wind turbine generators, a mismatched roller bearing under combined low-speed torque and vibration leads to micro-pitting within 6 months. In mining conveyors, dust ingress into inadequately sealed units accelerates wear by 4×. Most suppliers lack engineering capacity to model these interactions—leaving OEMs and plant managers exposed.

Engineered for Your Operating Conditions

The SKF N204EM bearing is not selected off a catalog; it is validated against your specific application parameters. Our 15+ certified SKF engineers perform ISO 281 life calculations using your actual radial load (kN), speed (r/min), temperature profile (°C), and housing fit tolerance—then verify alignment, clearance, and lubricant selection against SKF Engineering Guide 1000. As an official SKF engineering partner with ISO 9001 and TS 16949 certification, we deliver more than a part: a documented, application-specific solution backed by manufacturer-level traceability. This is the SKF N204EM bearing in context—not as a component, but as a calibrated subsystem.

Operating Environment and Performance Demands

In wind turbine applications, this cylindrical roller bearing operates at sustained 300–1200 r/min under variable radial loads up to 18 kN, while enduring ambient swings from –25°C to +70°C and limited access for maintenance. In mining vibrating screens, it must absorb high-frequency shock loads (peak acceleration >15 g) and resist abrasive dust ingress without sealed construction—making open design with precision-machined brass cage and P5 tolerance essential. Steel mill guide rolls demand thermal stability across 100°C surface temperatures and tight dimensional control to prevent misalignment-induced edge loading. The N204EM bearing for mining equipment meets these demands through controlled raceway geometry, optimized roller end profiling, and strict dimensional tolerances.

Inside the Engineering: What Makes This Bearing Perform

The dynamic load rating (C = 22.8 kN) directly determines L₁₀ life via the standard equation L₁₀ = (C/P)ᵖ × 10⁶ revolutions (p = 10/3 for roller bearings). A 5% increase in C extends calculated life by 17%—critical where unplanned downtime costs $22,000/hour in steel production. The brass cage ensures dimensional stability at elevated temperatures and resists deformation under impact loads common in crushers. Open configuration minimizes friction heat generation at 9500 r/min grease-lubricated speeds, while allowing full relubrication access in field service. P5 precision (radial runout ≤ 5 μm, bore diameter tolerance h5) reduces vibration amplitude by up to 40% versus P0-grade equivalents—meeting ISO 10816-3 Class 2 limits for generator sets. Surface hardness of 60–62 HRC prevents brinelling under static overload during installation or emergency shutdown.

The True Cost of Bearing Failure

A counterfeit or mis-specified N204EM bearing may cost 15% less upfront—but delivers only 22–28% of genuine SKF L₁₀ life under identical loads, per independent ISO 281 validation. In a wind farm’s pitch gearbox, that translates to replacement every 14 months instead of 60+, plus $85,000 in crane mobilization and lost energy yield. Incorrect interference fit due to unverified housing tolerance causes 30% of early N204EM failures—avoidable with our free mounting analysis. Total cost of ownership (TCO) over 5 years favors genuine SKF N204EM bearing with P5 tolerance by 3.2× when factoring downtime, labor, secondary damage, and lubrication waste. TCO modeling is included in every technical consultation.

Why Engineers Specify Through Us

Authenticity & Documentation

Each SKF N204EM bearing ships with original SKF Certificate of Conformity, Material Test Report (EN 10204 3.1), and Dimensional Inspection Report (±0.5 μm verification on all critical features). Packaging includes SKFOfficial™ anti-counterfeit hologram and QR-coded batch traceability. Customers may verify authorization status directly via SKF’s global partner portal (partner.skf.com) using our registration ID CN-SKF-EP-2023-087. Bulk orders qualify for optional third-party SKFOfficial factory audit.

Storage & Handling Guidelines

• Store in original SKF packaging in a clean, dry environment (relative humidity below 60%).
• Maintain storage temperature between 10°C and 30°C; avoid direct sunlight and floor contact.
• Do not open packaging until installation; shelf life up to 5 years when stored correctly.
• Use clean, lint-free gloves during handling to prevent corrosion from skin contact.
• Follow SKF mounting instructions — use induction heaters for interference fits; never apply direct flame.
• Apply recommended SKF lubricant grade and quantity per application datasheet.

Start with a Technical Consultation

We do not sell bearings—we solve application problems. Send your shaft drawing, load spectrum (static/dynamic radial forces), rotational speed profile, ambient and operating temperature range, and available mounting space. Within 48 hours, our SKF-certified engineers will return a complete technical assessment: calculated L₁₀ and Lₙₐ life, recommended fits, lubrication schedule, mounting procedure, and performance guarantee statement. For orders exceeding $50,000, we provide free test units with full metrology and endurance validation. Every hour delayed in correct specification compounds operational risk—your first engineering dialogue starts now.

Frequently Asked Questions
