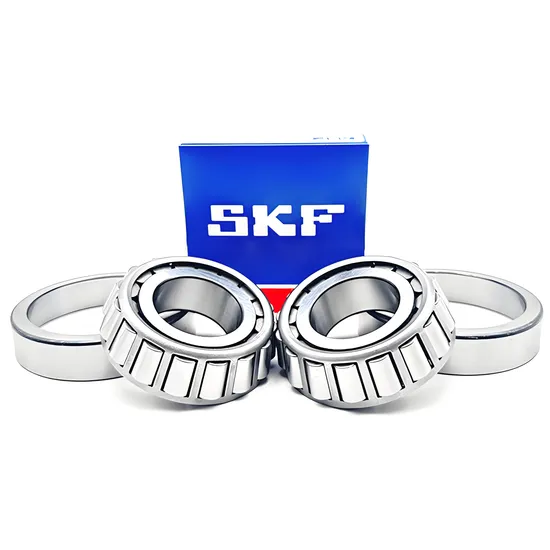

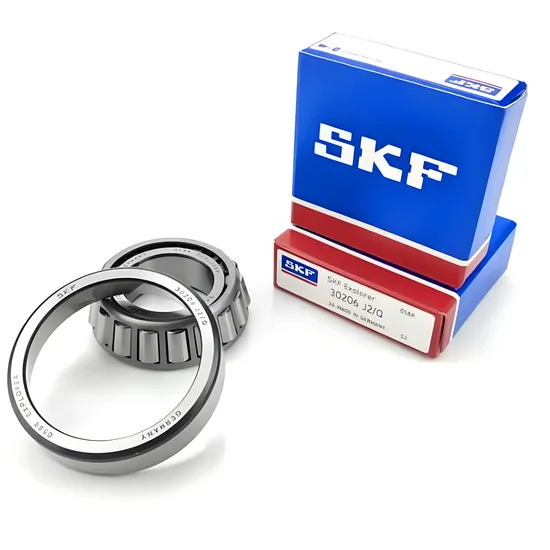

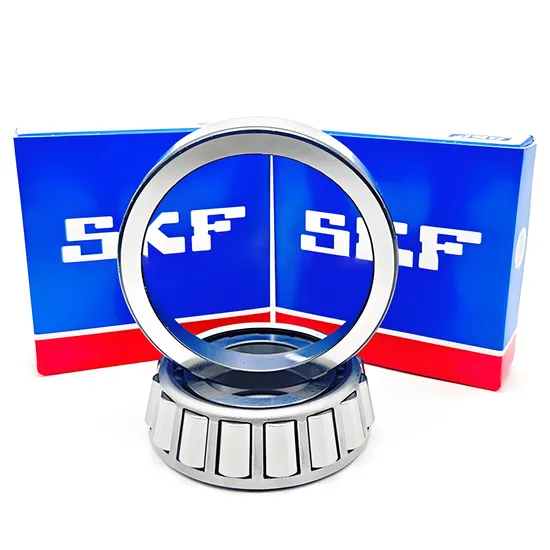

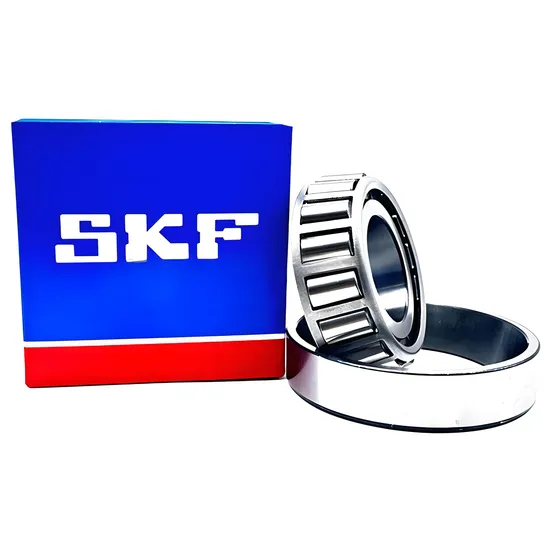

Tapered Roller Bearing 32944/32948/32952 for Railway Gear Reducers

Technical Specifications

Application Suitability

Why 35% of Railway Gearbox Failures Begin Before Installation — And How the SKF 32944/32948/32952 Tapered Roller Bearing Prevents Them

Railway gear reducers operate under combined high axial thrust, variable shock loads, and constrained maintenance windows. Over 35% of premature bearing failures in such applications originate from incorrect taper angle selection, insufficient dynamic rating margin, or unvalidated clearance under thermal expansion. Generic tapered roller bearings fail to account for gear mesh-induced moment loads and housing deflection — leading to edge loading and spalling within 6 months. Most suppliers lack the application-specific modeling capability to validate performance across the full operating envelope.

Engineered for Your Operating Conditions

This series of tapered roller bearing — including the 32944 tapered roller bearing, 32948 bearing for railway, and 32952 gear reducer bearing — is selected and validated not by catalog lookup, but by full-system analysis: ISO 281 life calculation with application-specific a₁ (reliability), a₂ (material), and a₃ (lubrication) factors; thermal expansion modeling for interference fits at operating temperature; and static safety factor verification against peak shock loads. As an official SKF engineering partner with 15+ certified engineers and ISO 9001 + TS 16949 certification, we deliver verified solutions — not just part numbers.

Operating Environment and Performance Demands

Railway gear reducers demand bearings that sustain precise axial location under reversing thrust while resisting contamination ingress and maintaining low vibration over 1.2 million km of service life. Ambient temperatures range from –25°C (cold depots) to +70°C (desert operations), inducing differential expansion between cast iron housings and steel shafts. Lubrication intervals exceed 200,000 km, requiring grease retention and oxidation resistance. Sealing must prevent fine metallic wear debris from re-entering the contact zone without increasing drag torque. The long-life low-noise tapered bearing design meets these demands via optimized roller profile, surface finish (Ra ≤ 0.2 μm), and controlled internal geometry tolerances.

Inside the Engineering: What Makes This Bearing Perform

The 32944/32948/32952 tapered roller bearing series uses SKF’s logarithmic roller profile to eliminate stress concentrations at roller ends — directly increasing L₁₀ fatigue life by ≥25% versus conventional designs. Precision classes P5 and P4 reduce vibration amplitude (Z2V2/Z3V3 compliance) critical for noise-sensitive traction applications. Steel cages provide dimensional stability at elevated temperatures, while machined brass cages offer superior embeddability in contaminated environments. Clearance selection (C0/C3) is based on calculated thermal growth — misalignment tolerance is maintained at ≤0.5° even under 25 μm shaft/housing misfit. Surface hardness is uniformly 58–62 HRC, with case depth ≥1.2 mm per SKF standard heat treatment protocol.

The True Cost of Bearing Failure

A single unplanned gear reducer stoppage on a mainline locomotive incurs ≥$28,000/hour in operational loss, crew standby, and schedule disruption. Counterfeit or non-SKF tapered roller bearings exhibit <30% of rated L₁₀ life and often induce catastrophic cage fracture due to substandard material chemistry. Incorrect clearance selection increases frictional heating by 15–22°C — accelerating grease degradation and reducing effective service life by 40%. According to SKF’s life model, a 10% under-rating of dynamic load reduces predicted life by 30%. Total cost of ownership (TCO) is minimized not by lowest purchase price, but by correct specification, genuine SKF manufacturing traceability, and engineering validation — all guaranteed under our SLA.

Why Engineers Specify Through Us

Authenticity & Documentation

Each shipment includes SKF Certificate of Conformity with unique serial traceability, dimensional inspection report signed by our QA engineer, and material test report per EN 10204 3.1. Original SKF packaging features tamper-evident seals and QR-coded batch verification. Customers may validate our authorization status directly via SKF’s official partner portal (https://www.skf.com/partner-locator). Bulk orders qualify for third-party witnessed inspection at SKF’s Japan facility.

Storage & Handling Guidelines

• Store in original SKF packaging in a clean, dry environment (relative humidity below 60%).
• Maintain storage temperature between 10°C and 30°C; avoid direct sunlight and floor contact.
• Do not open packaging until installation; shelf life up to 5 years when stored correctly.
• Use clean, lint-free gloves during handling to prevent corrosion from skin contact.
• Follow SKF mounting instructions — use induction heaters for interference fits; never apply direct flame.
• Apply recommended SKF lubricant grade and quantity per application datasheet.

Start with a Technical Consultation

Before specifying any bearing, engineers at leading railway OEMs share their actual operating parameters: radial and axial load spectra, rotational speed profile (including start-stop cycles), ambient and operating temperature ranges, housing/shaft materials and tolerances, and lubrication method. Within 48 hours, our team delivers a complete technical assessment — including ISO 281 life calculation, required precision and vibration class, recommended clearance, and mounting torque guidance. For qualified projects, we issue a formal proposal with performance guarantees and $50k+ orders include free test units. Every hour delayed in technical alignment risks weeks of downtime downstream — the right decision begins with the first engineering conversation.
