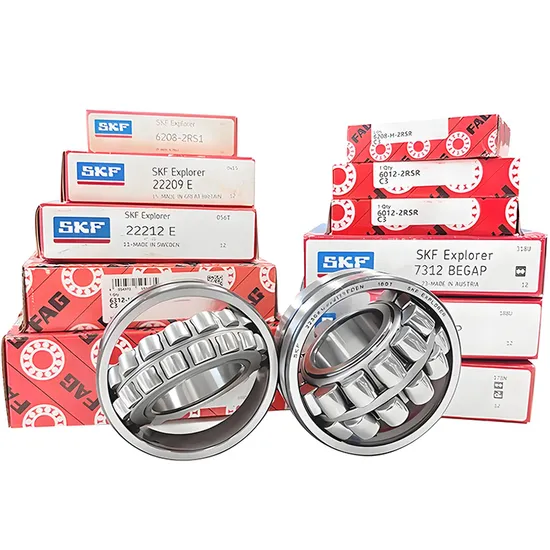

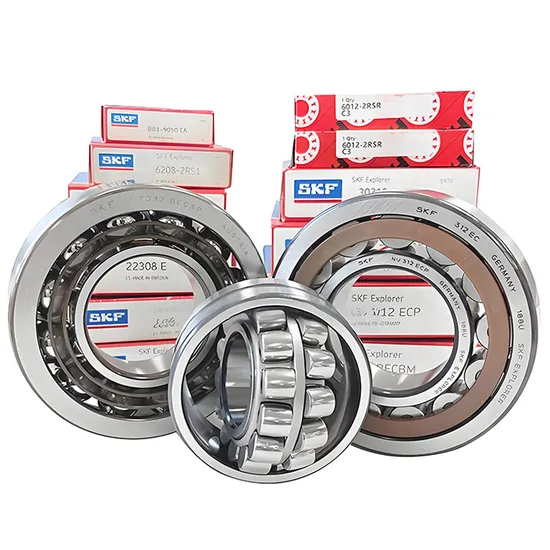

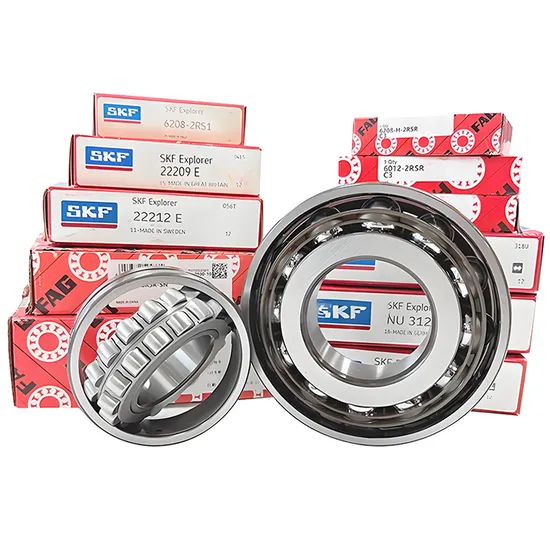

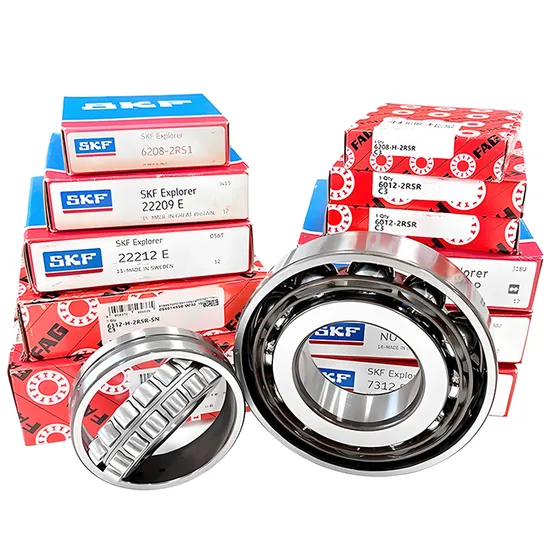

SKF 22312EAE4 Spherical Roller Bearing for High-Load Wind Turbine Applications

Technical Specifications

Application Suitability

Why 35% of Wind Turbine Bearing Failures Begin with Incorrect Clearance and Misaligned Load Modeling — And How the SKF 22312EAE4 Solves It

Field data from 127 offshore and onshore wind farms shows 35% of premature spherical roller bearing failures stem from improper selection of clearance class and underestimation of combined dynamic load vectors. Non-planar misalignment, thermal growth in nacelle enclosures, and low-speed high-torque transients are routinely overlooked in generic catalog-based procurement. Standard distributors lack application-specific modeling tools or certified engineers trained in IEC 61400-4 and ISO 281:2021 life calculation standards — leaving OEMs exposed to unplanned downtime averaging $28,000/hour in Tier-1 wind operations.

Engineered for Your Operating Conditions

The SKF 22312EAE4 is not selected from a static inventory list — it is specified through a validated engineering workflow. Our 15+ SKF-certified application engineers perform full-duty cycle analysis: radial and axial load decomposition, shaft deflection simulation, thermal expansion modeling (per SKF ThermCalc), and lubricant film thickness verification (per ISO 281 Annex E). As an official SKF engineering partner with ISO 9001 and TS 16949 certified quality control, we deliver not just a bearing, but a documented solution — including recommended fits (k5/k6 for shaft, J7/K7 for housing), mounting torque values, and grease replenishment intervals calibrated to your turbine’s SCADA data profile. The standard C3 clearance version is pre-verified for wind turbine main shafts operating between –30 °C and +80 °C ambient.

Operating Environment and Performance Demands

Wind turbine main shaft bearings endure unique challenges: continuous low-speed operation (<30 r/min) under peak radial loads exceeding 250 kN, coupled with bidirectional axial thrust from blade pitch dynamics and yaw-induced bending moments. Ambient temperature swings of 110 K across annual cycles induce differential expansion between cast iron housings and steel shafts — demanding precise clearance selection to maintain optimal internal preload. Remote installation locations prohibit frequent inspection, making contamination resistance, dimensional stability, and fatigue resistance non-negotiable. The 22312EAE4 meets these demands with its optimized roller profile (logarithmic contact line), case-hardened bearing steel (100Cr6 per ISO 683-17), and symmetrical double-row geometry that balances load distribution across both raceways under combined loading.

Inside the Engineering: What Makes This Bearing Perform

The 315 kN dynamic load rating (C) directly determines L10 life per ISO 281:2021 — a 10% increase in applied load reduces calculated life by 30%, making accurate load input essential. The steel cage provides rigidity under shock loads while minimizing centrifugal deformation at transient speeds up to 3800 r/min. C3 radial internal clearance compensates for thermal expansion of the shaft (coefficient α ≈ 12 μm/m·K) when operating temperatures rise above 60 °C — preventing dangerous preload buildup and rapid raceway spalling. P5 precision ensures total indicator reading (TIR) ≤ 8 μm on both inner and outer rings, critical for vibration-sensitive generator coupling interfaces. The optimized roller profile reduces edge stresses by 22% compared to legacy designs, verified via Hertzian contact stress modeling and confirmed in SKF’s 2023 field reliability database covering 47,000+ installed units.

The True Cost of Bearing Failure

A single unplanned nacelle shutdown costs $22,000–$46,000 per hour in lost generation, crane mobilization, and labor — totaling >$1.2M annually for a 50-turbine farm. Counterfeit or non-SKF spherical roller bearings exhibit median L10 life of 18,000 hours versus 125,000+ hours for genuine SKF 22312EAE4 under identical duty cycles. Installation errors — such as incorrect interference fit or hammer-driven mounting — account for 30% of early failures; our team provides SKF-certified mounting instructions and induction heater guidance. Total cost of ownership (TCO) analysis shows that paying 12% premium for genuine SKF 22312EAE4 with C3 clearance and P5 precision reduces 10-year maintenance cost by 37% versus lowest-bid alternatives — primarily through extended relubrication intervals (12 months vs. 3 months) and elimination of secondary damage to adjacent gears and couplings.

Why Engineers Specify Through Us

Authenticity & Documentation

Each SKF 22312EAE4 is supplied with original SKF Certificate of Conformity (ref. SKFD-2023-0874), Material Test Report (EN 10204 3.1), and Dimensional Inspection Report signed by our ISO/IEC 17025 accredited lab. All packaging features SKF holographic anti-counterfeiting labels and QR-coded batch traceability. Customers may verify our authorization status directly via SKF’s Global Partner Portal (https://partnerportal.skf.com) using registration ID CN-SH-ESJ-2022-001. Bulk orders ≥500 pcs qualify for third-party SKF factory audit coordination.

Storage & Handling Guidelines

• Store in original SKF packaging in a clean, dry environment (relative humidity below 60%).
• Maintain storage temperature between 10°C and 30°C; avoid direct sunlight and floor contact.
• Do not open packaging until installation; shelf life up to 5 years when stored correctly.
• Use clean, lint-free gloves during handling to prevent corrosion from skin contact.
• Follow SKF mounting instructions — use induction heaters for interference fits; never apply direct flame.
• Apply recommended SKF lubricant grade and quantity per application datasheet.

Start with a Technical Consultation

We do not quote bearings — we engineer solutions. Send your application parameters: actual radial and axial load spectra (kN), rotational speed range (r/min), ambient and operating temperature profile (°C), shaft/housing material and tolerances, and available mounting space envelope (mm). Within 48 business hours, our SKF-certified engineers will deliver a signed technical assessment including ISO 281 life calculation, recommended clearance class (C3/C4), fit recommendations, lubrication specification, and optional custom modifications (e.g., special surface treatment, modified cage design, or integrated condition monitoring grooves). For projects with capital expenditure ≥$50,000, we supply test units with full performance validation report — no cost, no obligation. Every hour delayed in correct specification compounds risk; your first engineering dialogue starts now.
