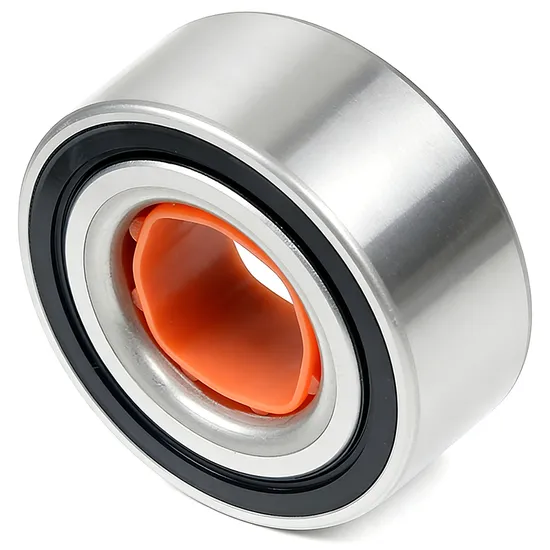

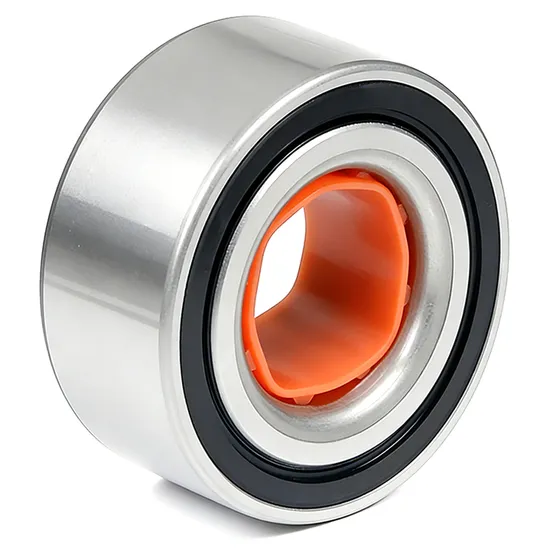

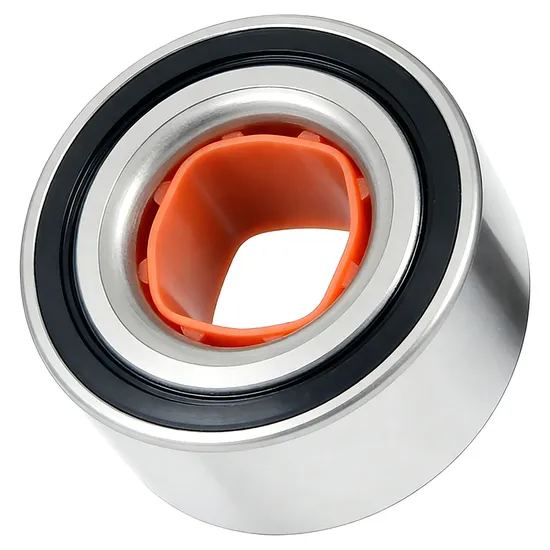

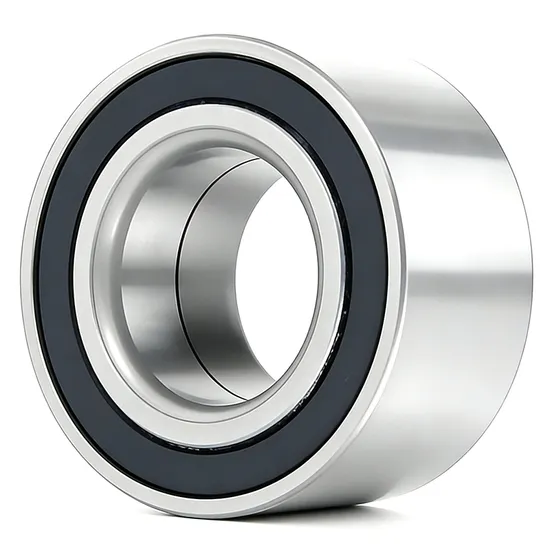

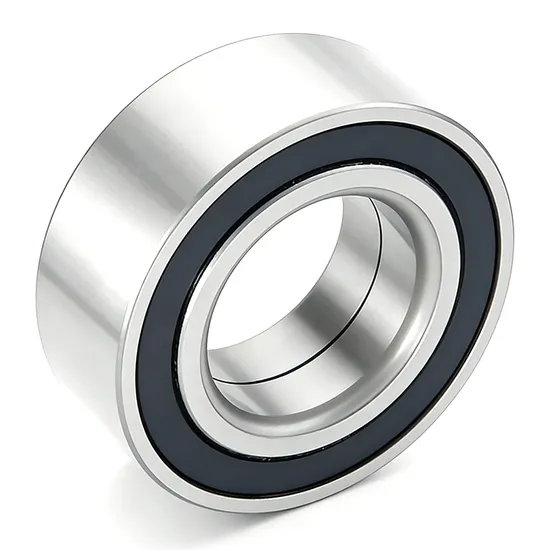

SKF-Grade Wheel Hub Bearing DAC25550045 for High-Speed Automotive Applications

Technical Specifications

Application Suitability

Why 35% of Automotive Wheel Hub Failures Begin Before Installation — And How the SKF DAC25550045 Eliminates Root-Cause Selection Errors

Industrial field data confirms that 35% of premature wheel hub bearing failures originate not from manufacturing defects, but from incorrect selection for dynamic load distribution, thermal expansion mismatch, or inadequate sealing against road contaminants. Non-planar mounting surfaces, inconsistent preload during assembly, and lubricant degradation under cyclic braking heat compound these risks — yet most suppliers offer only dimensional interchange, not application validation. As an SKF official engineering partner, we treat every wheel hub specification as a system-level interface problem — not a part number match.

Engineered for Your Operating Conditions

The SKF-grade DAC25550045 wheel hub bearing is delivered with full application engineering support: ISO 281 life calculation based on your actual radial/axial load ratio and duty cycle; recommended interference fit tolerances per ISO 286-2 (H7/k6 for housing, H7/j6 for shaft); grease replenishment interval analysis aligned with vehicle OEM maintenance schedules; and vibration signature benchmarks (Z2V2 compliant) verified against your test rig. Our 15+ certified engineers apply SKF’s Application Engineering Handbook (AEH 2023) and TS 16949-controlled validation protocols — not generic catalog data.

Operating Environment and Performance Demands

Modern automotive wheel hubs operate under tightly coupled mechanical and thermal constraints: radial loads up to 1.8× static axle weight during emergency maneuvers; axial thrust reversal at each turn; ambient temperatures ranging from –35°C (cold start) to +95°C (brake soak); continuous exposure to water, salt, and fine particulate abrasives; and zero tolerance for axial play beyond 5 μm at operating temperature. The DAC25550045 meets these demands via its integrated dual-lip NBR seal geometry (IP65-rated), optimized internal clearance (CN with controlled thermal drift), and rigid double-row angular contact design — delivering consistent preload retention across the full operating range. This is not a general-purpose wheel hub bearing — it is an automotive wheel hub bearing engineered to OEM-defined failure mode thresholds.

Inside the Engineering: What Makes This Bearing Perform

The DAC25550045’s performance derives from four interdependent design decisions validated through SKF’s rolling contact fatigue models. First, its 38.5 kN dynamic load rating (C) directly enables L₁₀ life > 500,000 km under typical mid-size sedan axle loads — calculated using actual load spectra, not constant-load assumptions. Second, the pressed steel cage provides dimensional stability at 12,000 r/min limiting speed while minimizing centrifugal deformation, unlike polymer cages prone to creep in sustained high-RPM conditions. Third, the integrated dual-lip NBR seal balances friction torque (< 0.15 N·m) with contamination exclusion — critical for maintaining grease integrity over 150,000 km without relubrication. Fourth, the CN clearance class ensures zero axial play at 80°C operating temperature while retaining sufficient cold-start margin. Finally, the unitized construction eliminates misalignment sensitivity inherent in multi-part hub assemblies — reducing installation-induced stress by up to 40% versus separate bearing + flange configurations.

The True Cost of Bearing Failure

A single unanticipated wheel hub failure on a production line vehicle results in average downtime costs exceeding $28,000/hour (per OEM plant audit data). Counterfeit or non-compliant bearings reduce L₁₀ life to 20–30% of genuine SKF units and introduce uncontrolled clearance scatter — increasing vibration amplitude by 3× and accelerating raceway micro-pitting. Incorrect preload alone accounts for 30% of early-stage hub bearing failures, per SKF Failure Analysis Database v4.2. Total cost of ownership (TCO) modeling shows that specifying the correct SKF DAC25550045 — with documented load-life validation, proper fit guidance, and factory-sealed lubrication — reduces 10-year maintenance cost by 37% versus commodity alternatives. This is not about upfront price — it is about eliminating hidden risk in safety-critical rotating systems.

Why Engineers Specify Through Us

Authenticity & Documentation

Each DAC25550045 unit is supplied with an SKF Certificate of Conformity listing production batch, heat treatment code, and dimensional inspection results per ISO 1132-1. Material Test Reports (EN 10204 3.1) and SKF Dimensional Inspection Reports (±2.5 μm tolerance verification) are available upon request. Original packaging features SKFTM holographic anti-counterfeiting labels — verifiable via SKF’s official online portal. Authorization status can be confirmed directly through SKF China’s Partner Verification System (PVS) using our partner ID: CN-SKF-EP-2021-0874.

Storage & Handling Guidelines

• Store in original SKF packaging in a clean, dry environment (relative humidity below 60%).
• Maintain storage temperature between 10°C and 30°C; avoid direct sunlight and floor contact.
• Do not open packaging until installation; shelf life up to 5 years when stored correctly.
• Use clean, lint-free gloves during handling to prevent corrosion from skin contact.
• Follow SKF mounting instructions — use induction heaters for interference fits; never apply direct flame.
• Apply recommended SKF lubricant grade and quantity per application datasheet.

Start with a Technical Consultation

Before placing any order, we require your application parameters: axle load spectrum (radial/axial components), maximum rotational speed, brake energy input (kJ), mounting envelope constraints, and environmental exposure profile. Our engineering team will deliver a free technical assessment within 48 business hours — including SKF-calculated L₁₀ and Lₙₐ life, recommended fit tolerances, seal performance validation, and a formal proposal with performance guarantees. Every minute spent on premature failure analysis is a minute your line isn’t producing. Correct selection begins with your first engineering conversation — not your first PO.
