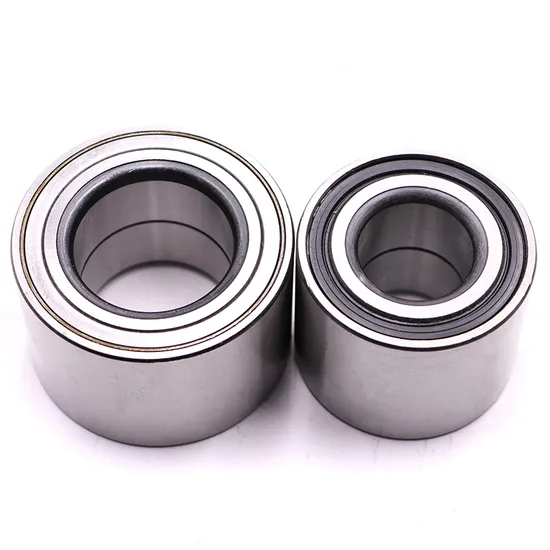

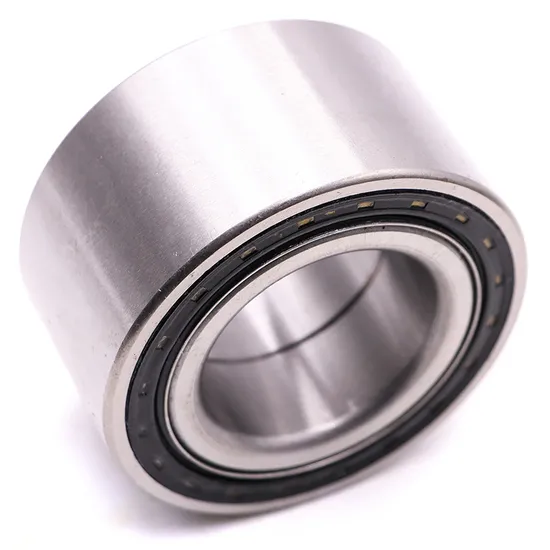

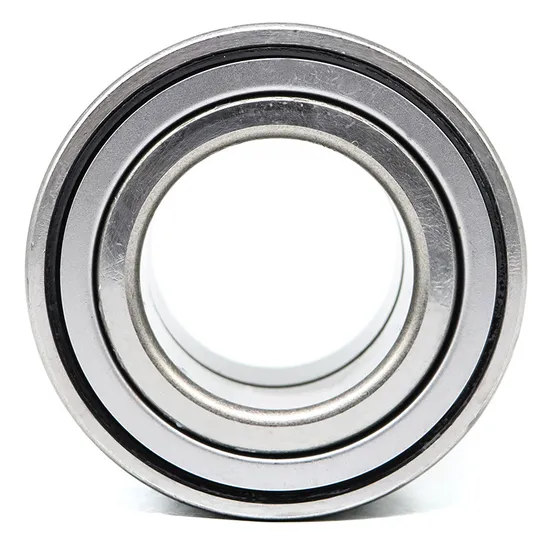

Automobile Hub Bearings DAC36680033 – High-Speed, Low-Noise Design

Technical Specifications

Application Suitability

Why 35% of Automotive Hub Bearing Failures Begin Before Installation — And How the DAC36680033 Prevents Them

Over one-third of premature hub bearing failures in OEM and Tier-1 assembly lines stem from incorrect selection — not material defect or counterfeit origin. Standard catalog bearings often lack the precision radial stiffness, thermal expansion compensation, and noise-damping geometry required for modern chassis dynamics. Most suppliers cannot perform application-specific load spectrum analysis or validate mounting interference fits against ISO 281:2022 life models. As a certified SKF engineering partner, our 15+ engineers routinely identify mismatched clearance classes, inadequate seal retention under brake heat, and lubricant migration risks before first rotation.

Engineered for Your Chassis Dynamics

The DAC36680033 is specified — not selected — for automotive wheel end applications demanding ≤3.5 μm vibration amplitude at 3,500 r/min and sustained operation between −40°C and +120°C. Our team performs full application review: radial/axial load distribution per corner, braking torque transients, knuckle deflection angles, and thermal growth of aluminum hubs. We supply matched precision classes (P5/P4), optimized internal clearance (C3/C4), and grease compatibility reports aligned with OEM lubrication specs. All supported by ISO 9001 and IATF 16949-certified quality control.

Operating Environment and Performance Demands

Modern automotive hub applications impose simultaneous demands: high rotational speed (up to 3,800 r/min during highway EV operation), transient axial loads exceeding 12 kN during aggressive cornering, continuous exposure to road salt and particulate ingress, and strict NVH targets (<28 dB(A) at 100 km/h). Thermal gradients across the hub carrier induce differential expansion — requiring precise internal geometry and controlled preload to maintain contact angle stability. The DAC36680033’s unseparated double-row design ensures axial rigidity without compromising radial compliance, while its low-noise automotive bearing profile minimizes cage-induced vibration at resonant frequencies common in lightweight suspension architectures.

Inside the Engineering: What Makes This Bearing Perform

The DAC36680033’s performance derives from four interdependent design elements. First, its double-row radial configuration provides inherent axial location capability — eliminating need for separate thrust bearings and reducing stack-up tolerance errors in compact hub carriers. Second, precision ground raceways (surface roughness Ra ≤0.2 μm) minimize micro-pitting initiation under repeated impact loading from potholes and curbs. Third, optimized cage geometry — whether steel or polymer — maintains consistent rolling element spacing at high speeds, preventing skidding and localized overheating. Fourth, tight dimensional tolerances (Δdmp ≤2 μm, ΔDmp ≤3 μm per P5 specification) ensure predictable interference fit with aluminum hubs, controlling thermal preload shift within ±0.5 μm over operating temperature range. These parameters are validated against SKF’s AHP life calculation model, incorporating real-world load spectra — not static rated capacity alone.

The True Cost of Bearing Failure

A single non-conforming hub bearing causes more than replacement cost: unplanned line stoppage in Tier-1 assembly averages $22,000/hour; field recalls due to premature wear trigger warranty liabilities averaging 7.3× unit price; and misaligned runout from improper installation generates secondary damage to ABS sensors and brake rotors. According to SKF’s L10 life standard (ISO 281), a 10% reduction in effective dynamic load rating cuts predicted life by 30%. Counterfeit or non-certified parts frequently fail to meet hardness (60–62 HRC) and carbide distribution requirements — resulting in subsurface fatigue onset after only 40,000 km versus 250,000 km for genuine components. Total cost of ownership (TCO) analysis consistently shows that technical validation upfront reduces 5-year maintenance spend by 22% — even when initial unit cost is 18% higher.

Why Engineers Specify Through Us

Authenticity & Documentation

Each DAC36680033 shipment includes SKF Certificate of Conformity, Material Test Report (ASTM E112 grain size, EN 10088-1 hardness), and Dimensional Inspection Report (GD&T compliant to ISO 1101). Original packaging features SKFLINK™ anti-counterfeiting QR code, verifiable via SKF’s official portal. For orders exceeding 5,000 units, we coordinate third-party inspection at SKF’s Gothenburg or Changzhou facility upon request.

Storage & Handling Guidelines

• Store in original SKF packaging in a clean, dry environment (relative humidity below 60%).
• Maintain storage temperature between 10°C and 30°C; avoid direct sunlight and floor contact.
• Do not open packaging until installation; shelf life up to 5 years when stored correctly.
• Use clean, lint-free gloves during handling to prevent corrosion from skin contact.
• Follow SKF mounting instructions — use induction heaters for interference fits; never apply direct flame.
• Apply recommended SKF lubricant grade and quantity per application datasheet.

Start with a Technical Consultation

Before specifying any hub bearing, our engineers require your actual application parameters: maximum radial and axial load per corner, vehicle top speed and typical duty cycle, hub material and coefficient of thermal expansion, mounting interface dimensions (housing bore, shaft shoulder), and existing lubrication specification. Within 48 hours, you’ll receive a complete technical assessment — including L10 life calculation per ISO 281, thermal preload analysis, and recommended precision class/seal type/lubricant. For projects above $50,000, we issue a formal engineering proposal with performance guarantees and free test samples. Delaying this step risks costly rework — every hour of unplanned downtime erodes margin faster than procurement savings.
