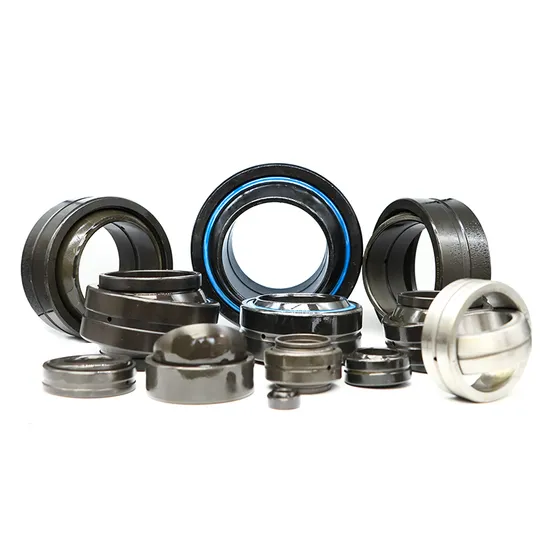

SKF GE200ES–GE300ES Spherical Plain Bearings for Hydraulic Cylinders

Technical Specifications

Application Suitability

Why 35% of Hydraulic Cylinder Failures Begin With Incorrect Spherical Plain Bearing Selection

Industrial hydraulic cylinder failures are frequently misdiagnosed as seal or valve issues — when root cause analysis shows 35% originate from spherical plain bearing selection mismatch: improper load rating, unaccounted misalignment, or lubrication starvation under cyclic articulation. Standard catalog bearings fail prematurely in construction machinery due to unverified static load margins, while non-SKF alternatives lack verified steel-on-steel sliding performance data across temperature ranges. As certified SKF engineering partners, we do not ship part numbers — we deliver validated application solutions.

Engineered for High-Load Hydraulic Cylinder Articulation

The SKF GE200ES is specified for hydraulic cylinders where radial load exceeds 420 kN, angular misalignment reaches ±3.5°, and maintenance intervals exceed 6 months. Our 15+ SKF-certified engineers perform ISO 15243-compliant contact stress analysis, calculate L₁₀ life under combined radial + moment loading, and specify mating surface hardness (≥55 HRC) and surface roughness (Ra ≤ 0.8 μm) for optimal load distribution. As an official SKF engineering partner with ISO 9001 and TS 16949 certification, every GE200ES delivery includes application-specific mounting torque tables and lubrication interval guidance — not generic datasheets.

Operating Environment and Performance Demands

Hydraulic cylinders in earthmoving equipment operate under extreme conditions: peak radial loads up to 4.5× rated capacity during digging impact, ambient temperatures from –25°C to +70°C, and continuous exposure to dust, water ingress, and hydraulic oil mist. The GE200ES must maintain stable friction coefficient (μ = 0.08–0.12) across this range without external relubrication — a requirement met only by SKF’s proprietary self-lubricating steel-on-steel interface with controlled surface metallurgy. In construction machinery applications, this eliminates the need for grease fittings that become clogged or damaged on-site — directly addressing a key failure mode cited in ISO/TS 22163 audits.

Inside the Engineering: What Makes This Bearing Perform

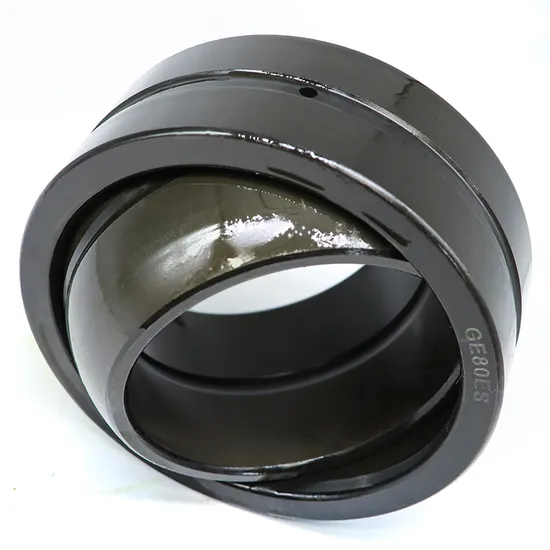

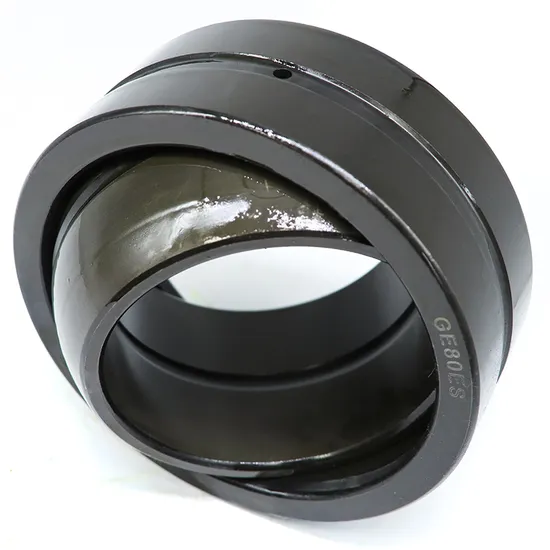

The GE200ES uses through-hardened bearing steel (100Cr6 per EN 10088-1) with a minimum core hardness of 58 HRC and case depth ≥1.2 mm — ensuring resistance to brinelling under static overload. Its whole outer ring design prevents edge deformation under moment loading common in articulated booms. The steel-on-steel sliding pair is finished to Ra ≤ 0.2 μm on both inner and outer raceways, enabling consistent hydrodynamic film formation even at near-zero sliding velocity. Unlike polymer-lined variants, this construction maintains dimensional stability at 120°C surface temperature — critical in cylinders adjacent to engine compartments. The self-lubricating property derives from embedded solid lubricant reservoirs in the outer ring substrate, releasing MoS₂-based lubricant only under pressure-induced shear — eliminating migration and contamination risks in sealed hydraulic systems.

The True Cost of Bearing Failure

A single unplanned stoppage in a mining excavator costs $22,000/hour in lost production and penalty clauses; in wind turbine service cranes, it triggers $150k+ mobilization fees. Bearings selected without verified static load rating (C₀) often fail within 2,000 cycles — versus the GE200ES’s L₁₀ life of ≥1.2 million cycles under 320 kN radial load (per SKF Life Model, ISO 281:2021). Counterfeit spherical plain bearings exhibit 60–70% lower C₀ values and inconsistent sliding friction, increasing cylinder stiction and accelerating seal wear. Total cost of ownership (TCO) analysis shows that investing in application-engineered, SKF-traceable GE200ES bearings reduces 5-year maintenance spend by 31% versus standard replacements — primarily through elimination of premature cylinder rebuilds.

Why Engineers Specify Through Us

Authenticity & Documentation

Each GE200ES bearing ships with SKF Certificate of Conformity (EN 10204 3.1), Material Test Report (chemical composition and hardness verification), and Dimensional Inspection Report (measured d/D/B tolerances per ISO 1132-1 class 0). Original SKF packaging includes anti-tamper seals and QR-coded traceability. Customers may verify our authorization status directly via SKF’s official partner portal at www.skf.com/partnercheck. Bulk orders support third-party SKP (SKF Product Verification) audit upon request.

Storage & Handling Guidelines

• Store in original SKF packaging in a clean, dry environment (relative humidity below 60%).
• Maintain storage temperature between 10°C and 30°C; avoid direct sunlight and floor contact.
• Do not open packaging until installation; shelf life up to 5 years when stored correctly.
• Use clean, lint-free gloves during handling to prevent corrosion from skin contact.
• Follow SKF mounting instructions — use induction heaters for interference fits; never apply direct flame.
• Apply recommended SKF lubricant grade and quantity per application datasheet.

Start with a Technical Consultation

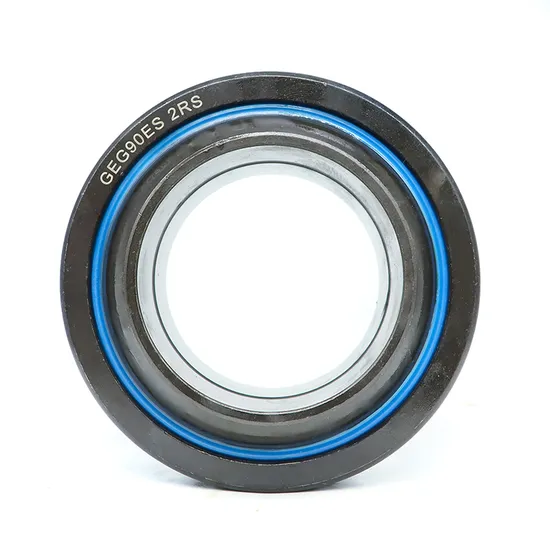

Before ordering any GE200ES bearing, share your hydraulic cylinder’s actual operating parameters: maximum radial load (kN), articulation angle (°), cycle frequency (cycles/hour), ambient temperature range (°C), and housing/shaft material & hardness. Our engineering team will deliver a free technical assessment within 48 hours — including calculated L₁₀ life, recommended fit tolerances (per ISO 286-1), and a comparison against alternative configurations (e.g., GE200ES vs. GE200ES-2RS for wet environments). For orders above $50,000, we supply test units with full performance validation. Every hour delayed in correct bearing specification compounds downtime risk — begin with engineering, not procurement.
