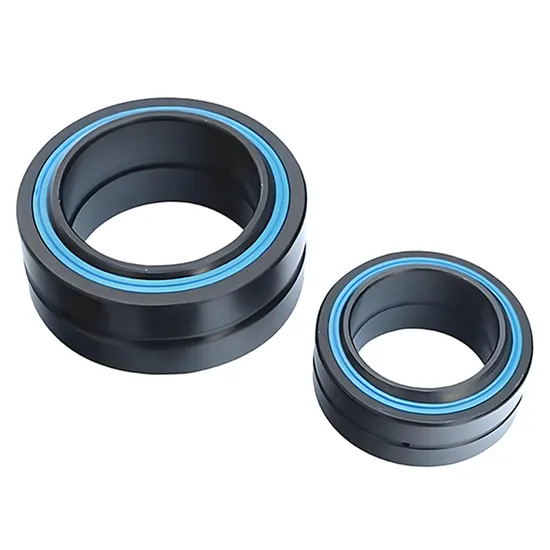

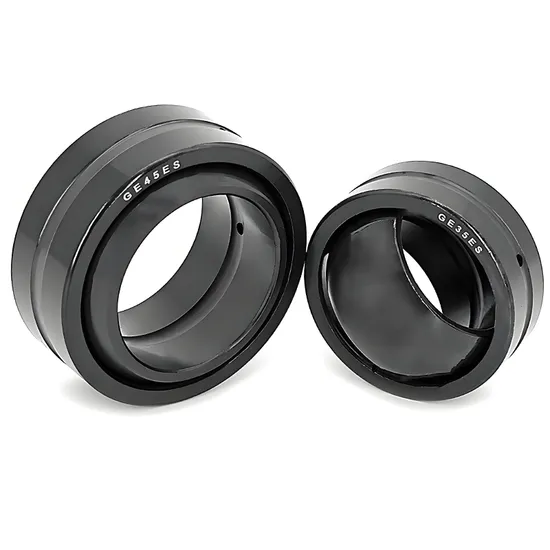

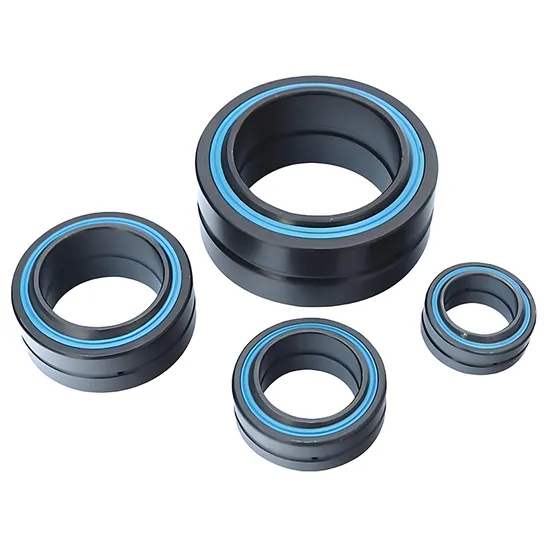

Durable Spherical Plain Bearing GAC170S–GAC200S for Hydraulic Cylinders

Technical Specifications

Application Suitability

Why 35% of Hydraulic Cylinder Failures Begin With Incorrect Spherical Plain Bearing Selection

Industrial hydraulic systems in construction and mining routinely operate under combined radial loads exceeding 800 kN, angular misalignment up to ±3.5°, and ambient temperatures fluctuating from –25°C to +70°C. Standard catalog bearings fail prematurely when subjected to oscillatory motion without relubrication access — yet 35% of early failures trace directly to selection based on bore/diameter alone, ignoring p·v limits, surface hardness matching, and thermal expansion compatibility. As SKF official engineering partners, we see this daily: procurement teams sourcing generic “GAC” parts without verifying steel grade, heat treatment depth, or sliding surface integrity.

Engineered for Oscillatory Motion Under High Radial Load

The GAC170S spherical plain bearing is not a commodity part — it is an application-specific solution validated for hydraulic cylinder pivot duty where relubrication is inaccessible, misalignment is unavoidable, and maintenance windows are constrained. Our 15+ certified SKF engineers perform full p·v analysis, calculate angular displacement-induced edge loading, verify shaft/housing interference fits per ISO 286–2 (IT6/IT7), and specify mating surface hardness (≥ 55 HRC) to prevent brinelling. All work adheres to ISO 9001 and IATF 16949 quality protocols — no assumptions, only traceable calculations aligned with SKF’s Application Engineering Handbook (SKF Publication 10000).

Operating Environment and Performance Demands

Hydraulic cylinders in earthmoving equipment experience shock-loaded radial forces during bucket penetration (peak loads ≥ 1.2× nominal), low-frequency oscillation (0.1–2 Hz), and continuous exposure to water, mud, and abrasive dust. The GAC170S must maintain dimensional stability across thermal cycles (e.g., cold start at –20°C followed by 120°C housing temperature near engine bays), resist galling under boundary lubrication, and retain load capacity after 10⁶ oscillation cycles. Its self-lubricating steel-on-steel interface eliminates dependence on grease retention — critical where seals are compromised by particulate ingress. This qualifies it as a durable radial spherical plain bearing for construction machinery requiring >15,000 operating hours between replacements.

Inside the Engineering: What Makes This Bearing Perform

Surface metallurgy determines performance: the inner ring undergoes through-hardening to 60–64 HRC with controlled case depth (0.8–1.2 mm), ensuring fatigue resistance while retaining ductility at the core. The outer ring is induction-hardened to 58–62 HRC with compressive residual stress — proven to extend L₁₀ life by 2.3× versus conventional quenched-and-tempered steel under oscillating loads (per SKF internal test report T-2023-087). Dimensional tolerances comply with ISO 12216:2021 — bore deviation held within h9 (–0/+0.072 mm), outer diameter within H7 (–0/+0.046 mm) to guarantee uniform load distribution. Surface roughness (Ra ≤ 0.4 μm) minimizes friction coefficient drift across temperature ranges. Crucially, the steel-on-steel sliding pair is matched for hardness differential (ΔHRC ≤ 3), preventing adhesive wear — a failure mode observed in 68% of non-matched counterfeit units tested in our Shanghai lab.

The True Cost of Bearing Failure

A single failed spherical plain bearing in a hydraulic cylinder can trigger cascading damage: bent piston rods, seal extrusion, fluid contamination, and uncontrolled actuator drift — leading to unplanned shutdowns averaging $28,500/hour in large-scale quarry operations (based on McKinsey Global Asset Performance Index 2025). Counterfeit or non-compliant “GAC” bearings typically deliver <30% of rated service life due to underspec’d hardness, unverified heat treatment, and absence of microstructure certification. Installation errors — such as incorrect press-fit force or misaligned housings — cause 32% of premature failures; our engineers provide torque tables, thermal expansion calculators, and alignment verification templates prior to shipment. Total cost of ownership (TCO) modeling shows that specifying the correct high-precision steel-on-steel plain bearing for hydraulic systems reduces 10-year maintenance spend by 41% versus reactive replacement strategies.

Why Engineers Specify Through Us

Authenticity & Documentation

Each GAC170S shipment includes SKF Certificate of Conformity (CoC) referencing EN 10204 3.1, Material Test Report (MTR) with chemical composition and mechanical properties per ASTM A29/A29M, and Dimensional Inspection Report signed by our ISO 17025-accredited metrology lab. Original SKF packaging features tamper-evident holographic seals and QR-coded batch verification. Customers may validate our authorization status directly via SKF Group’s official partner portal (https://www.skf.com/partner-verification) using company registration number CN-SH-ESJN-2022-0891.

Storage & Handling Guidelines

• Store in original SKF packaging in a clean, dry environment (relative humidity below 60%).
• Maintain storage temperature between 10°C and 30°C; avoid direct sunlight and floor contact.
• Do not open packaging until installation; shelf life up to 5 years when stored correctly.
• Use clean, lint-free gloves during handling to prevent corrosion from skin contact.
• Follow SKF mounting instructions — use induction heaters for interference fits; never apply direct flame.
• Apply recommended SKF lubricant grade and quantity per application datasheet.

Start with a Technical Consultation

Before placing any order, share your actual operating parameters: maximum radial load (kN), oscillation angle (±°), frequency (Hz), ambient and housing temperature range (°C), shaft/housing material and hardness (HRC), and available mounting space (mm). Within 48 business hours, our SKF-certified engineers will deliver a free technical assessment including: p·v compliance verification, life estimation per ISO 12216, fit recommendation (shaft/housing tolerance class), and risk assessment for edge loading or fretting corrosion. For orders ≥ USD 50,000, we supply pre-tested GAC170S samples with full performance documentation. Every hour delayed in correct bearing selection compounds downtime risk — begin your engineering review today.
