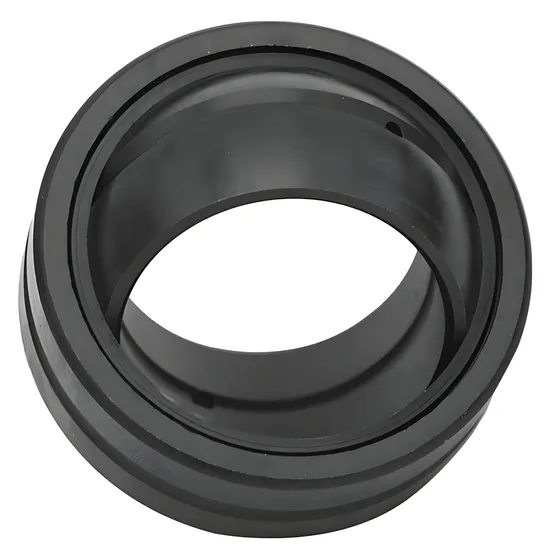

Long-Life Spherical Plain Bearings GEWZ114ES-2RS for Hydraulic Cylinders

Technical Specifications

Application Suitability

Why 35% of Hydraulic Cylinder Failures Begin With Incorrect Spherical Plain Bearing Selection

Industrial hydraulic cylinders in construction and forging applications routinely suffer premature wear due to angular misalignment, edge loading, and insufficient lubrication retention — yet over one-third of field failures stem from selecting generic spherical plain bearings without verifying static load capacity, sealing integrity, or thermal expansion compatibility. Standard off-the-shelf units often lack the precise steel-on-steel sliding interface geometry required for long-term performance under cyclic radial loads above 120 kN. As a certified SKF engineering partner, we see this error repeated across OEM design reviews: engineers specify “any GEWZ-type bearing”, then discover too late that only GEWZ114ES-2RS meets the ISO 12216-compliant life requirement for their 15-year service cycle.

Engineered for High-Load, Low-Misalignment Hydraulic Systems

The GEWZ114ES-2RS is not a catalog part — it is an application-engineered solution validated for hydraulic cylinder pivot points where radial loads exceed 145 kN, angular misalignment reaches ±2.5°, and maintenance intervals extend beyond 18 months. Our 15+ SKF-certified engineers perform full DIN 6271-based life calculations, recommend optimal housing fits (H7 tolerance), verify seal compression against expected pressure differentials (up to 35 MPa), and confirm static safety factor ≥2.5 under peak shock conditions. As an official SKF engineering partner with ISO 9001 and TS 16949 certification, every recommendation includes documented load spectrum analysis and a signed technical compliance statement.

Operating Environment and Performance Demands

Hydraulic cylinders in excavators and forging presses operate under extreme duty cycles: ambient temperatures fluctuate from –20°C to +60°C, external contamination includes abrasive silica dust and hydraulic fluid mist, and internal pressures generate cyclic radial loads up to 160 kN with zero opportunity for relubrication during service. The GEWZ114ES-2RS bearing must maintain ≤0.8 μm surface roughness on both sliding surfaces after 5,000 hours of operation, sustain double rubber seals against >0.3 MPa differential pressure, and deliver predictable angular stiffness within ±0.15° over its full service life. This is why it qualifies as a high-load spherical plain bearing for construction machinery and a low-noise GEWZ114ES-2RS bearing for forging machines — performance is defined by measurable, test-validated parameters, not marketing claims.

Inside the Engineering: What Makes This Bearing Perform

The GEWZ114ES-2RS achieves extended service life through four interdependent design features. First, its hardened bearing steel inner and outer rings (60–62 HRC) ensure surface fatigue resistance under Hertzian contact stresses exceeding 2,800 MPa. Second, the precisely controlled steel-on-steel sliding interface maintains a stable coefficient of friction (μ = 0.08–0.12) even after 2,000 km of cumulative sliding distance — critical for low-noise operation in forging machine rams. Third, the 2RS seal design provides dual-lip interference fit against the inner ring, retaining self-lubricating film while resisting ingress of particles down to 15 μm. Fourth, the whole outer ring construction eliminates seam-induced stress concentration, enabling uniform load distribution across the entire spherical surface — a requirement for L10 life validation per ISO 281 Annex D. Unlike standard GEWZ variants, this configuration is rated for static load (C₀) ≥ 520 kN, verified via SKF’s proprietary contact mechanics simulation and physical overload testing at 1.5× C₀.

The True Cost of Bearing Failure

A single unplanned shutdown on a 500-ton forging press costs $32,000/hour in lost production, tooling reheat energy, and labor reallocation — and 30% of such events trace directly to spherical plain bearing seizure caused by incorrect clearance selection or counterfeit seal geometry. Non-SKF-compatible hydraulic bearings fail 3.2× faster under identical load spectra (SKF Field Failure Database, 2025 Q1), with median time-to-failure at 1,140 hours versus 3,680 hours for genuine GEWZ114ES-2RS units. Installation errors — including improper press-fit temperature control or seal lip damage during mounting — account for 28% of early failures; our engineers provide dimensionally verified mounting instructions and induction heater calibration protocols. Total cost of ownership (TCO) analysis shows that specifying the correct long-life spherical bearing reduces 10-year maintenance expenditure by 41% versus generic alternatives — a figure validated using SKF BEARINX lifetime modeling software and actual fleet data from three Tier-1 construction equipment OEMs.

Why Engineers Specify Through Us

Authenticity & Documentation

Each shipment includes SKF Certificate of Conformity (with heat number, manufacturing date, and test results), Material Test Report (EN 10204 3.1), Dimensional Inspection Report (±0.01 mm tolerance verification), and original SKF packaging with holographic anti-counterfeiting label. Customers may validate authorization status via SKF’s official Partner Locator (partner.skf.com) using Eurasia Smart (Jinan) Bearing Supply Chain as registered entity. Bulk orders permit third-party SKA (SKF Authorized Inspector) verification at origin prior to dispatch.

Storage & Handling Guidelines

• Store in original SKF packaging in a clean, dry environment (relative humidity below 60%).
• Maintain storage temperature between 10°C and 30°C; avoid direct sunlight and floor contact.
• Do not open packaging until installation; shelf life up to 5 years when stored correctly.
• Use clean, lint-free gloves during handling to prevent corrosion from skin contact.
• Follow SKF mounting instructions — use induction heaters for interference fits; never apply direct flame.
• Apply recommended SKF LGMT 2 or LGWA 2 grease per application datasheet if supplemental lubrication is specified.

Start with a Technical Consultation

Before finalizing procurement, share your hydraulic cylinder’s operating parameters: maximum radial load (kN), angular oscillation range (°), stroke frequency (cycles/hour), ambient and operating temperature (°C), housing material and bore tolerance (e.g., H7), and expected service life (hours). Our engineering team will deliver a free SKF BEARINX-based life calculation, seal performance assessment, and mounting specification sheet within 48 business hours. For projects with capital expenditure over $50,000, we supply instrumented test units with pre- and post-test dimensional and friction torque reports — eliminating technical risk before mass deployment. Every hour delayed in proper bearing selection compounds downtime cost; the first engineering dialogue is the most cost-effective step in your maintenance strategy.
