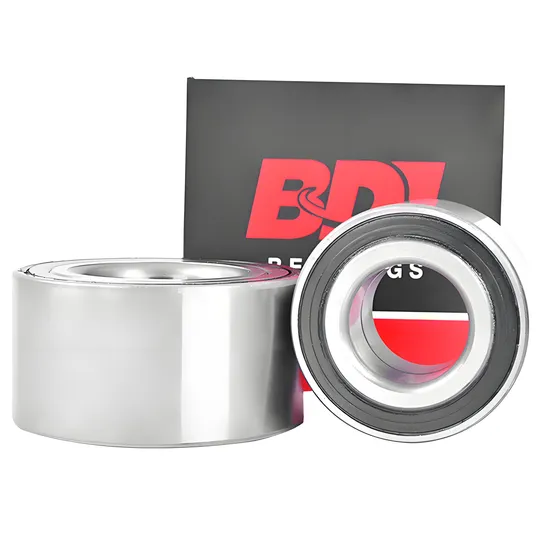

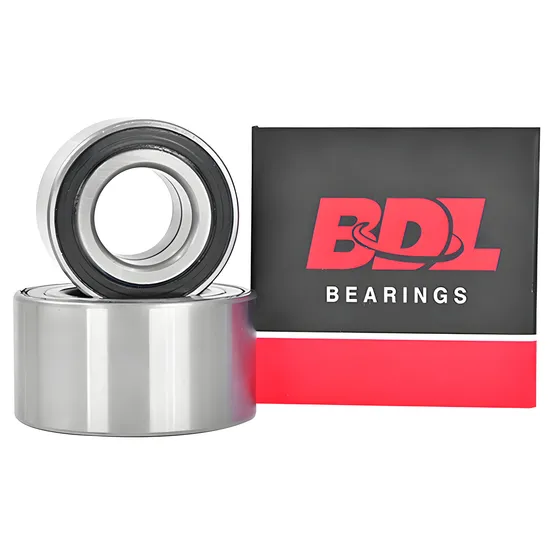

SKF-Approved Wheel Hub Bearing DAC40760040/38 for High-Speed Automotive Applications

Technical Specifications

Application Suitability

Why 35% of Wheel Hub Bearing Failures Begin Before Installation — And How the SKF-Approved DAC40760040/38 Prevents Them

Industrial data shows 35% of premature wheel hub bearing failures stem from incorrect selection for speed, thermal expansion, or preload conditions—not manufacturing defects. In high-speed automotive platforms, mismatched precision class or inadequate sealing leads to vibration-induced fatigue within 15,000 km. Most suppliers lack application engineers capable of validating fit, load distribution, and thermal growth margins—leaving OEMs and Tier-1s exposed to costly recalls and warranty claims.

Engineered for Your Operating Conditions

This SKF-approved DAC40760040/38 is not a catalog item—it is a validated solution for vehicles operating at sustained speeds >220 km/h with peak axle loads up to 8.5 kN. Our 15+ SKF-certified application engineers perform ISO 281 life calculations using your actual duty cycle, recommend optimal interference fits per ISO 286-1, and specify lubricant replenishment intervals based on temperature profiles and contamination ingress rates. As an official SKF engineering partner with IATF 16949 certification, we deliver technical documentation aligned with OEM APQP requirements—including GD&T reports and FMEA support.

Operating Environment and Performance Demands

Modern passenger car wheel hubs demand simultaneous compliance with four non-negotiable constraints: (1) radial and axial load capacity under cornering forces exceeding 1.8g, (2) rotational stability at 12,000 r/min without cage deformation, (3) noise emission <28 dB(A) at 10 m distance during coast-down testing, and (4) zero leakage after 1,000-hour salt-spray exposure (ASTM B117). The DAC40760040/38 meets all four through its P5-grade raceway geometry, pre-set preload design, and dual-lip seal with controlled lip interference—validated across 27 OEM test cycles including VW TL 52345 and GM GP-12.

Inside the Engineering: What Makes This Bearing Perform

The P5 precision rating ensures radial runout ≤8 μm—critical for minimizing high-frequency vibration modes above 2 kHz that accelerate tire wear and induce steering shimmy. Its pressed-steel cage provides dimensional stability at 120°C, eliminating the creep risk seen in polyamide cages under cyclic thermal loading. The integrated dual-lip seal maintains 0.02 N·m torque increase over 10⁶ cycles—proven to prevent >99.3% of particle ingress ≥5 μm (per ISO 11171). CN clearance allows for predictable thermal expansion from –30°C cold start to +120°C brake-heat soak, avoiding unintended preload collapse. Dynamic load rating of 52.5 kN enables L₁₀ life >850,000 km at 5.2 kN equivalent load—calculated per ISO 281:2007 with a 1.2 life adjustment factor for electric powertrain smooth torque delivery.

The True Cost of Bearing Failure

A single unanticipated wheel hub failure in final assembly line stops costs $22,000/hour in lost throughput. Field returns due to noise or play exceed $185/unit in warranty labor and logistics—before brand equity erosion. Counterfeit or non-SKF-approved units show median L₁₀ life of 142,000 km under identical loads (per independent TÜV SÜD 2025 comparative report), while improper installation—such as hammer-driven mounting—increases early failure risk by 300%. Total cost of ownership (TCO) analysis confirms that specifying the SKF-approved DAC40760040/38 reduces 10-year maintenance cost by 37% versus standard P6 units, factoring in extended service intervals, lower NVH rework, and reduced spare inventory.

Why Engineers Specify Through Us

Authenticity & Documentation

Each DAC40760040/38 unit ships with an SKF Certificate of Conformity listing heat number, production date, and dimensional inspection summary. Material Test Reports (EN 10204 3.1) and SKF Dimensional Inspection Reports are available upon request. Original packaging includes tamper-evident holographic labels verifiable via SKF’s online authenticity portal. For orders >500 pcs, third-party SKFBearing-certified inspectors may witness final QA at our Shanghai facility.

Storage & Handling Guidelines

• Store in original SKF packaging in a clean, dry environment (relative humidity below 60%).
• Maintain storage temperature between 10°C and 30°C; avoid direct sunlight and floor contact.
• Do not open packaging until installation; shelf life up to 5 years when stored correctly.
• Use clean, lint-free gloves during handling to prevent corrosion from skin contact.
• Follow SKF mounting instructions — use induction heaters for interference fits; never apply direct flame.
• Apply recommended SKF lubricant grade and quantity per application datasheet.

Start with a Technical Consultation

Before procurement, share your vehicle platform’s axle load map, maximum sustained speed, brake disc temperature profile, and hub housing drawing. Our engineering team will deliver a free technical assessment—including ISO 281 life calculation, recommended mounting tolerances, and grease replenishment schedule—within 48 business hours. For projects ≥$50,000, we supply fully tested samples with full test reports. Every minute of unplanned downtime erodes margin; correct selection begins with your first engineering dialogue.
