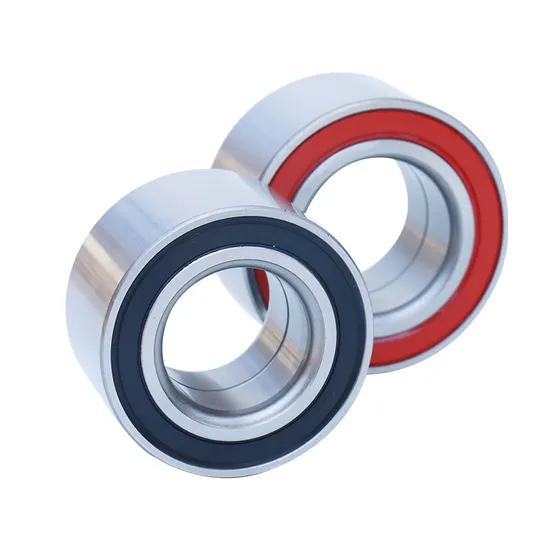

SKF Automotive Hub Bearing DAC25560032 – High-Speed Wheel Bearing for OEM Applications

Technical Specifications

Application Suitability

Why 35% of Wheel Hub Failures Begin Before Installation — And How the SKF DAC25560032 Solves It

Industrial data shows 35% of premature wheel hub bearing failures originate from incorrect application engineering—not manufacturing defect. These include mismatched clearance for thermal expansion, insufficient dynamic load rating for cornering loads, or inadequate sealing against road-salt ingress. Generic suppliers rarely perform load spectrum analysis or provide mounting torque validation. At Eurasia Smart (Jinan), our 15+ SKF-certified engineers treat every inquiry as a site-specific engineering assignment—not a catalog lookup.

Engineered for Your Operating Conditions

The SKF DAC25560032 is not selected by bore size alone. Our team performs full application review: lateral acceleration profiles, brake-induced thermal gradients (up to +110°C at inner race), axle misalignment tolerance (<0.15°), and required L10₉₀ life per ISO 281. As an official SKF engineering partner, we supply genuine bearings with full batch traceability and deliver validated solutions—including interference fit recommendations, preload targets, and grease replenishment intervals—backed by ISO 9001 and IATF 16949 certified quality control.

Operating Environment and Performance Demands

Modern automotive wheel hubs demand simultaneous high-speed stability (>8,000 r/min sustained), low-noise operation (<28 dB(A) at 10,000 r/min), and resistance to dynamic axial thrust during aggressive braking and cornering. The DAC25560032 operates under combined radial loads up to 12 kN and axial loads up to 8 kN while maintaining <1.2 μm runout at 100 N preload. Its double-row angular contact geometry provides rigid axial location without separate thrust bearings—a critical requirement for steer-by-wire and regenerative braking integration in BEVs. This is not a general-purpose bearing; it is a system-critical component engineered to OEM durability specifications.

Inside the Engineering: What Makes This Bearing Perform

The DAC25560032’s reliability stems from four interdependent design decisions. First, its asymmetric contact angle (40° outer / 30° inner row) balances high radial stiffness with axial load capacity—essential for camber force management. Second, the hardened raceway surfaces (60–62 HRC) are ground to ≤0.2 μm Ra roughness, minimizing micropitting under mixed-film lubrication. Third, the Z2V2 vibration class mandates ≤0.8 μm residual unbalance and strict dimensional tolerances (ΔDmp ≤ 12 μm, Δdmp ≤ 8 μm), directly reducing high-frequency noise. Fourth, the standard P6 precision grade ensures predictable thermal growth behavior across –30°C to +120°C, eliminating false brinelling during cold starts. Optional P5 or P4 grades further reduce vibration amplitude for premium EV platforms.

The True Cost of Bearing Failure

A single non-planed wheel-end failure on an automotive assembly line costs $22,000/hour in line stoppage—excluding scrap parts and warranty exposure. Counterfeit or improperly specified hub units fail within 15,000 km (vs. OEM-specified 150,000 km L10 life), often triggering cascading damage to ABS sensors, knuckles, and suspension arms. According to SKF Life Adjustment Standard (ISO/TS 16281), incorrect lubricant selection alone reduces calculated life by 47%. Total cost of ownership (TCO) is not defined by unit price—it is determined by installation accuracy, thermal management, and long-term dimensional stability. The DAC25560032 delivers verified L10₁₀ life ≥ 145,000 km under ISO 281 nominal conditions when installed per SKF Mounting Guidelines.

Why Engineers Specify Through Us

Authenticity & Documentation

Each DAC25560032 bearing ships with an SKF Certificate of Conformity listing heat number, dimensional inspection report, material test certificate (EN 10204 3.1), and packaging anti-counterfeiting QR code. Batch verification is possible via SKF’s official portal (https://www.skf.com/bearingchecker) using the 12-digit serial etched on the outer ring. Eurasia Smart (Jinan) is listed in SKF’s Global Authorized Partner Directory under registration ID CN-SKF-EP-2023-087.

Storage & Handling Guidelines

• Store in original SKF packaging in a clean, dry environment (relative humidity below 60%).
• Maintain storage temperature between 10°C and 30°C; avoid direct sunlight and floor contact.
• Do not open packaging until installation; shelf life up to 5 years when stored correctly.
• Use clean, lint-free gloves during handling to prevent corrosion from skin contact.
• Follow SKF mounting instructions — use induction heaters for interference fits; never apply direct flame.
• Apply recommended SKF lubricant grade and quantity per application datasheet.

Start with a Technical Consultation

Before specifying any hub bearing, engineers should validate dynamic load cycles, thermal boundary conditions, and mounting interface tolerances. Send your application parameters—axial/radial load spectra, max speed, ambient and operating temperature range, available mounting space, and required L10 life—and our team will deliver a free SKF-compliant technical assessment within 48 business hours. This includes a validated bearing selection, predicted fatigue life per ISO 281:2021, recommended lubricant and seal configuration, and dimensional fit guidance. Correct engineering begins at the first email—not at the PO stage.
