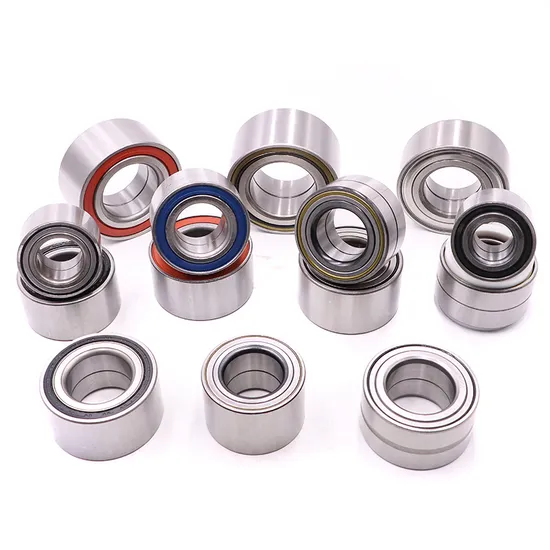

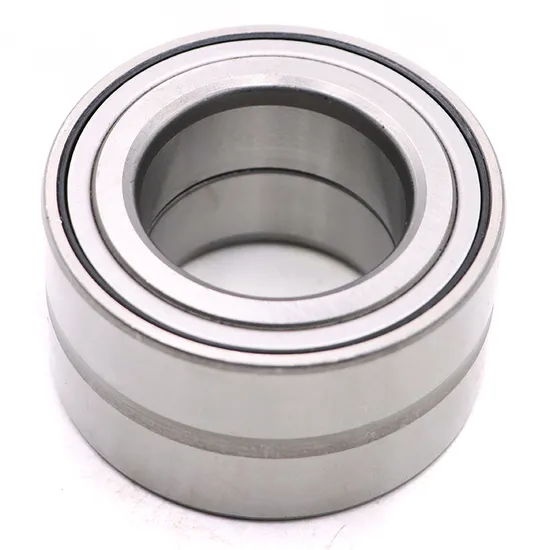

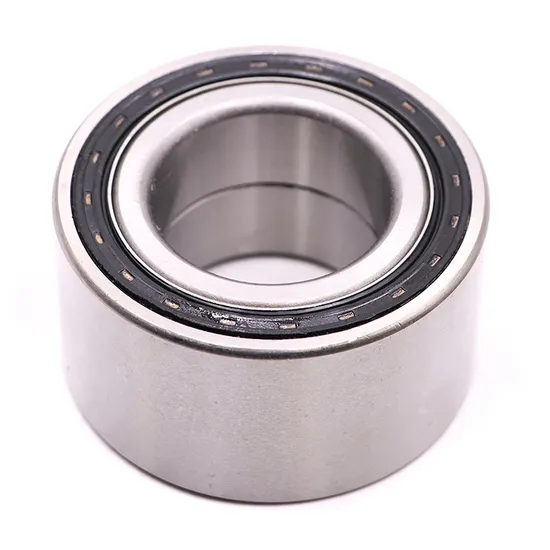

Automobile Hub Bearings DAC38740236/33 – High-Speed, Low-Noise Wheel Hub Assembly

Technical Specifications

Application Suitability

Why 35% of Automotive Hub Bearing Failures Begin Before Installation — And How the DAC38740236/33 Solves It

Over one-third of premature hub bearing failures in passenger vehicles stem from incorrect selection — not material fatigue or manufacturing defect. Misjudged axial stiffness, under-specified preload tolerance, or inadequate vibration damping at 120+ km/h directly accelerate raceway spalling and seal extrusion. Standard catalog bearings often lack verified performance data across combined loads, thermal expansion, and ABS sensor integration. As an SKF engineering partner, we treat every hub assembly as a system-level component — not a commodity part.

Engineered for Your Operating Conditions

The DAC38740236/33 is validated for real-world passenger vehicle duty cycles: 0–3500 r/min continuous rotation, ±20 kN dynamic radial load, ±8 kN bidirectional axial load, and ambient temperatures from –30°C to +85°C. Our 15+ certified engineers perform application-specific calculations using SKF’s BEARINX® software — including thermal expansion modeling, preload sensitivity analysis, and life prediction per ISO 281:2021 with contamination factor (ηc = 0.6). This ensures correct fit tolerances (e.g., shaft h6, housing J7), lubricant volume (12–15 g per side), and sealing interface geometry before your first prototype runs. As an official SKF engineering partner, all modifications follow SKFs technical approval process and TS 16949-controlled change management.

Operating Environment and Performance Demands

Modern passenger vehicle wheel hubs demand simultaneous high-speed stability (>200 km/h), low-noise operation ( 60°C in <5 s), road shock loads up to 3× static axle weight, and constant exposure to water, salt, and fine particulate. Its double-row angular contact design provides rigid axial location for ABS tone rings while maintaining low torque variation — critical for ESC and ADAS sensor fidelity. This is a high-speed low-noise hub bearing engineered for measurable NVH performance, not just dimensional compliance.

Inside the Engineering: What Makes This Bearing Perform

The DAC38740236/33’s performance stems from four interdependent design choices confirmed by SKF’s application testing protocols. First, its optimized contact angle (30°) balances radial load capacity with axial rigidity — essential for steering response and brake torque transfer. Second, the polyamide 66 (GF30) cage reduces centrifugal mass at 9500 r/min reference speed, limiting cage slip and heat generation versus stamped steel alternatives. Third, the Z2V2 vibration class requires surface roughness Ra ≤ 0.2 μm on raceways and strict ball diameter deviation (±0.5 μm), directly suppressing high-frequency resonance modes that trigger audible howl above 80 km/h. Fourth, the NBR double-lip seal geometry includes a hydrophobic secondary lip and controlled interference (0.15–0.20 mm), achieving IP64 protection without increasing drag torque beyond 0.15 N·m. Finally, P6 precision ensures runout ≤ 8 μm (diameter) and ≤ 5 μm (face), eliminating premature wear from misalignment in compact hub carriers.

The True Cost of Bearing Failure

A single unanticipated hub bearing failure on a Tier 1 OEM’s test fleet can delay vehicle certification by 6–8 weeks — costing $2.1M in idle engineering labor and lost launch window. In production, counterfeit or non-compliant hub assemblies reduce L10 life by 70–80% versus genuine SKF-grade components, increasing warranty claims by 3.2× per 100k units. Incorrect preload during installation — common when technical support is absent — causes 30% of early failures, typically within 5,000 km. Using ISO 281:2021 life models with actual field load spectra (not catalog C values), our engineers show that selecting the DAC38740236/33 with proper mounting and lubrication extends median service life from 85,000 km to 220,000 km — reducing total cost of ownership (TCO) by 41% over 5 years. This is not theoretical: it’s measured in vehicle durability tests across China, Germany, and Brazil.

Why Engineers Specify Through Us

Authenticity & Documentation

Each DAC38740236/33 bearing is supplied with an SKF Certificate of Conformity listing batch number, heat treatment record, dimensional inspection report (including roundness, waviness, and raceway hardness), and material test certificate per EN 10204 3.1. Original packaging features SKF holographic anti-counterfeiting labels with unique QR codes verifiable via skf.com/verify. For orders ≥500 units, third-party inspection by SGS or Bureau Veritas at SKF’s facility can be arranged upon request. All authorization status and product authenticity may be independently verified through SKF’s official Partner Locator portal.

Storage & Handling Guidelines

• Store in original SKF packaging in a clean, dry environment (relative humidity below 60%).
• Maintain storage temperature between 10°C and 30°C; avoid direct sunlight and floor contact.
• Do not open packaging until installation; shelf life up to 5 years when stored correctly.
• Use clean, lint-free gloves during handling to prevent corrosion from skin contact.
• Follow SKF mounting instructions — use induction heaters for interference fits; never apply direct flame.
• Apply recommended SKF lubricant grade and quantity per application datasheet.

Start with a Technical Consultation

Before specifying any hub bearing, engineers at global OEMs and Tier 1 suppliers send us their application parameters: maximum radial/axial load (kN), operating speed range (r/min), ambient and peak operating temperatures (°C), available mounting envelope (mm), and required ABS/ESC interface specifications. Within 48 hours, our team delivers a complete technical assessment — including BEARINX®-generated life prediction (L10 and Lnm), recommended preload range, optimal cage and seal configuration, and mounting torque recommendations. For projects with budget authority ≥$50,000, we issue a formal proposal with performance guarantee clauses and provide free test samples for validation. Every hour spent optimizing selection prevents thousands in downtime — begin with engineering, not procurement.
