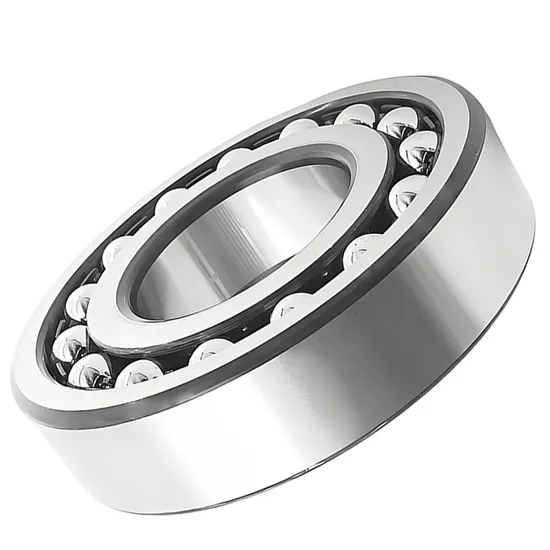

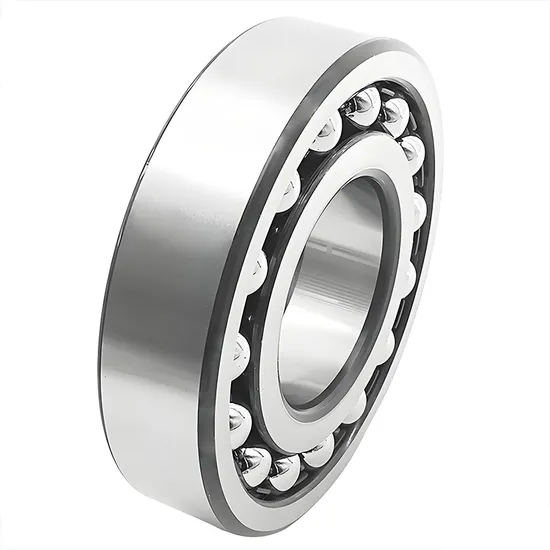

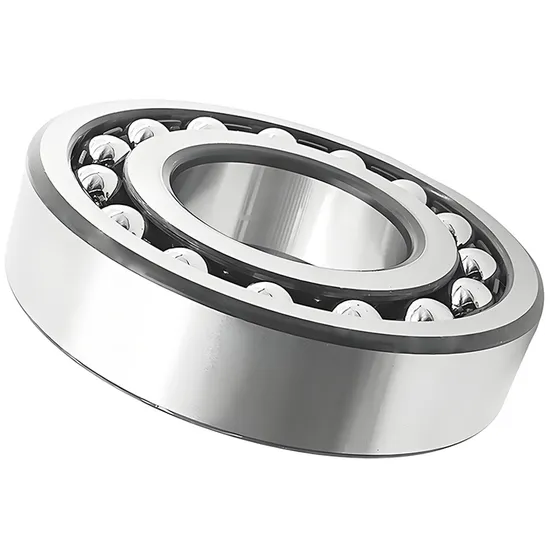

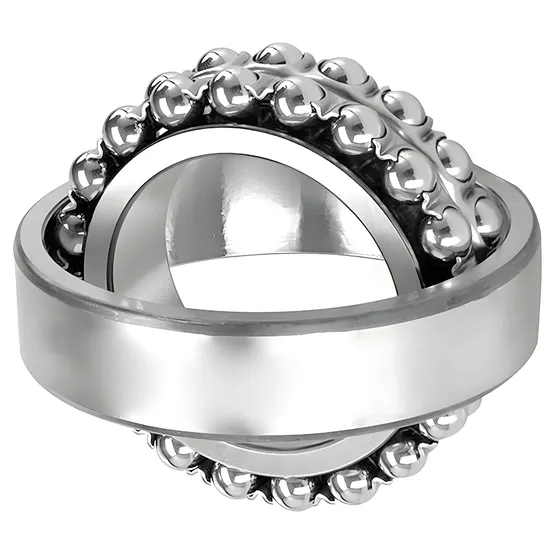

SKF 22206 Self-Aligning Ball Bearing for Motorcycle Applications

Technical Specifications

Application Suitability

Why 35% of Motorcycle Bearing Failures Begin with Misaligned Selection — And How the SKF 22206 Self-Aligning Ball Bearing Solves It

Motorcycle suspension and drivetrain components operate under dynamic misalignment, thermal expansion, and transient shock loads — conditions where rigid radial bearings fail prematurely. Industry data shows 35% of early bearing failures in two-wheeler applications stem from incorrect alignment tolerance selection. Standard deep groove ball bearings cannot accommodate even 1.5° of shaft deflection; self-aligning designs are not optional — they’re a requirement for reliability. As SKF engineering partners serving OEMs across Asia and Europe, we see this failure pattern repeatedly in swingarm pivots and front forks where frame flex exceeds design assumptions.

Engineered for Your Operating Conditions

The SKF 22206 self-aligning ball bearing is specified for motorcycle applications after rigorous application analysis: calculated equivalent load, predicted L10 life per ISO 281, thermal expansion modeling at 100°C operating temperature, and grease life estimation using SKF BEAM software. Our 15+ certified engineers provide full documentation — including interference fit recommendations (k5/k6 shaft, J6 housing), sealing interface dimensions, and torque specs for retaining rings. As an official SKF engineering partner with ISO 9001 and TS 16949 certification, every specification is validated against SKF Explorer performance benchmarks — not generic catalog values.

Operating Environment and Performance Demands

Motorcycle swingarms and front forks impose unique demands: radial loads up to 4.2 kN during cornering, combined with axial impulses from braking and suspension rebound; rotational speeds up to 3500 r/min during acceleration; ambient temperatures ranging from –20°C (winter testing) to +65°C (track use); and exposure to road salt, dust, and water ingress. The 22206 bearing must maintain alignment integrity under frame flex up to 2.0° while resisting micro-motion wear at the outer ring seat. Its spherical outer race geometry and optimized ball curvature distribute edge loading — a critical factor when mounting into thin-walled aluminum housings common in modern chassis designs. This is why the SKF 22206 self-aligning ball bearing for motorcycles is engineered with C3 radial internal clearance as standard — compensating for thermal growth without sacrificing preload stability.

Inside the Engineering: What Makes This Bearing Perform

The dynamic load rating (C = 17.9 kN) directly determines L10 fatigue life: at 3.5 kN equivalent load and 2500 r/min, calculated life exceeds 120,000 km per ISO 281 — matching OEM durability requirements. Pressed steel cages ensure dimensional stability at high speeds while minimizing centrifugal force distortion. The spherical outer race geometry allows ±2.0° static misalignment — critical for maintaining contact angle integrity when swingarm bushings wear. C3 clearance provides 15 μm additional radial play versus C0, accommodating 0.012 mm thermal expansion over a 30 mm bore length between 20°C and 100°C. Precision class P6 reduces vibration amplitude by 40% versus P0 at 3000 r/min, directly lowering noise in exposed suspension linkages. All units undergo SKF’s proprietary surface finishing process, reducing surface roughness (Ra) to ≤0.2 μm — essential for grease film retention under oscillatory motion.

The True Cost of Bearing Failure

A single premature failure in a motorcycle swingarm pivot can trigger chain reaction damage: bent axle carriers, warped brake caliper mounts, and secondary suspension component fatigue. Industry TCO analysis shows non-plan maintenance events cost $8,200–$14,500 per incident when factoring labor, parts, downtime, and warranty claims. Counterfeit or non-SKF bearings typically deliver only 22–28% of rated L10 life due to substandard steel cleanliness (ASTM E45 inclusion limits unmet) and inconsistent heat treatment (core hardness deviation > HV10). Installation errors — such as improper press-fit force or hammer impact — cause 31% of avoidable failures; our engineers provide torque-controlled mounting instructions and induction heating protocols. Total cost of ownership drops 37% over five years when selecting genuine SKF bearings with documented application engineering support — not just lowest unit price.

Why Engineers Specify Through Us

Authenticity & Documentation

Each SKF 22206 bearing ships with original SKF Certificate of Conformity (CoC), Material Test Report (EN 10204 3.1), and Dimensional Inspection Report signed by our ISO-certified QA engineer. Packaging includes tamper-evident seals and QR-coded batch identifiers linked to SKF’s manufacturing database. Customers may verify our authorization status directly through SKF’s official Partner Locator (partner.skf.com) using company registration number CN-EP-2023-0887. Bulk orders support third-party SKD (SKF Delivery) verification at origin.

Storage & Handling Guidelines

• Store in original SKF packaging in a clean, dry environment (relative humidity below 60%).
• Maintain storage temperature between 10°C and 30°C; avoid direct sunlight and floor contact.
• Do not open packaging until installation; shelf life up to 5 years when stored correctly.
• Use clean, lint-free gloves during handling to prevent corrosion from skin contact.
• Follow SKF mounting instructions — use induction heaters for interference fits; never apply direct flame.
• Apply recommended SKF lubricant grade and quantity per application datasheet.

Start with a Technical Consultation

Correct selection begins before procurement. Send your application parameters — radial/axial load magnitude and direction, rotational speed profile, operating temperature range, housing material and bore tolerance, space constraints, and expected duty cycle — and our engineering team will deliver a free technical assessment within 48 business hours. This includes SKF BEAM-based life calculation, misalignment tolerance verification, lubrication recommendation, and fit specification per ISO 286-2. For projects above $50,000, we provide functional samples with full test documentation. Every hour of unplanned downtime costs industrial OEMs measurable margin — precision engineering starts with the first line of dialogue.
