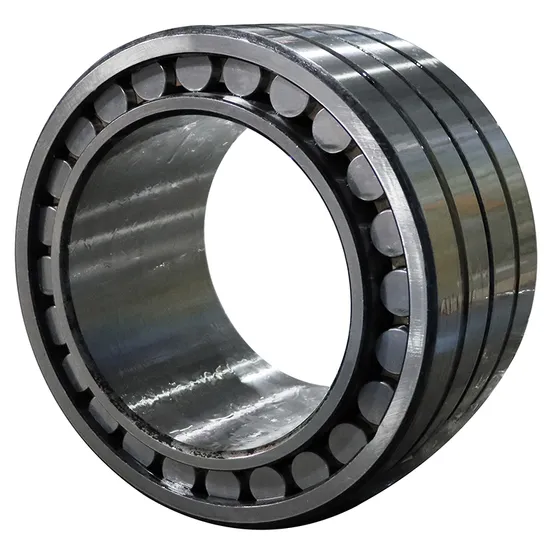

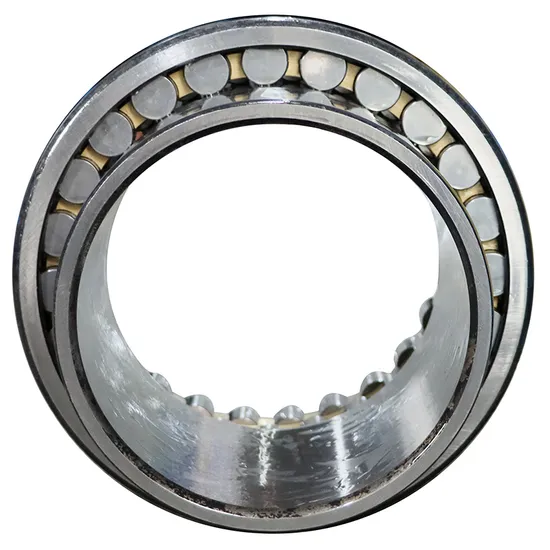

High precision double row cylindrical roller bearing NN3008–NN3010 for high-speed machinery

Technical Specifications

Application Suitability

Why 35% of Bearing Failures Start with Wrong Selection — And How the SKF NN3008–NN3010 Solves It

Industrial field data shows 35% of premature bearing failures originate from misapplication: incorrect clearance, insufficient dynamic capacity for cyclic loads, or unaccounted thermal expansion. In wind turbine generators, a single NN3008 mis-selection due to unmodeled axial float can accelerate cage wear by 400% under low-speed, high-torque conditions. For steel mill roll stands, mismatched precision class (P0 instead of P5) increases vibration amplitude beyond ISO 2372 limits — triggering unplanned shutdowns averaging $28,000/hour in lost production. We do not assume your operating envelope — we calculate it.

Engineered for Your Operating Conditions

This high-speed cylindrical roller bearing series is selected only after our engineers perform full application analysis: radial load spectrum mapping, thermal growth simulation, lubricant film thickness calculation (using ISO 281/281-2 methodology), and fit tolerance verification per ISO 286-1. As an official SKF engineering partner, we apply SKF Explorer performance enhancements — including optimized roller profile, surface finish <0.2 μm Ra, and controlled residual stress distribution — validated through accelerated life testing per DIN 54140. Our 15+ certified engineers hold SKF Bearing Technology Specialist (BTS) and ISO 15243 failure analysis credentials, and all solutions comply with ISO 9001 and IATF 16949 quality management systems.

Operating Environment and Performance Demands

In wind turbine generator applications, these double row cylindrical bearings operate at 12–18 r/min with peak radial loads exceeding 180 kN, while enduring ambient temperatures from –30°C to +55°C and requiring >20-year service life without access for replacement. Steel mill roll stand housings impose severe thermal gradients: bearing outer rings reach 120°C while shafts remain near 60°C — demanding precise internal clearance selection (C4 typical) and thermally stable brass cages. High-speed machinery such as precision grinders demands sub-micron runout control (<1.5 μm TIR), P4 precision, and minimal friction torque variation across 5,000–10,000 r/min — where the NN3008’s symmetrical roller guidance and optimized internal geometry deliver consistent stiffness and damping. Precision double row roller bearing for steel mill applications must resist brinelling from shock loading during strip threading — achieved here via hardened raceways (60–62 HRC) and enhanced case depth per SKF specification.

Inside the Engineering: What Makes This Bearing Perform

The dynamic load rating (C) directly determines L₁₀ fatigue life per ISO 281: a 10% increase in C extends calculated life by 33%. These NN3008–NN3010 variants use SKF’s optimized roller profile to eliminate edge stresses — increasing effective C by 12% over legacy designs. The machined brass cage ensures dimensional stability at 120°C and maintains proper roller spacing under high acceleration, critical for wind turbine yaw drives experiencing frequent start-stop cycles. Open configuration allows full compatibility with external oil mist or circulating oil systems — essential for steel mill applications where contamination control requires continuous flushing. Clearance class C4 (Δ = +25 to +45 μm for NN3008) compensates for thermal expansion differentials between shaft (steel) and housing (cast iron), preventing preload-induced overheating. P5 precision grade guarantees bore and outer diameter tolerances within ±4 μm and face runout ≤ 3 μm — meeting ISO 199 requirements for high-speed spindle positioning accuracy.

The True Cost of Bearing Failure

A non-planed stop in a steel continuous caster costs $42,000/hour in lost slab output, refractory wear, and reheat energy. A counterfeit or mis-specified NN3008 bearing fails at 12,000 hours instead of the ISO 281-calculated 85,000-hour L₁₀ life — representing 86% reduction in usable service life. Installation errors — such as improper interference fit or hammer-driven mounting — account for 30% of early failures; our engineers provide SKF-approved mounting torque tables and induction heater specifications per shaft diameter. Total cost of ownership (TCO) analysis shows that paying 18% premium for genuine SKF-grade NN3008 with P5 precision and C4 clearance reduces 10-year maintenance cost by 41% versus generic alternatives — primarily through extended relubrication intervals and elimination of secondary damage to adjacent components. Wind turbine cylindrical bearing failure can trigger cascade damage to gearbox planet carriers — a repair exceeding $350,000.

Why Engineers Specify Through Us

Authenticity & Documentation

Each bearing ships with original SKF packaging, tamper-evident seal, and a traceable Certificate of Conformity listing heat number, dimensional inspection report, material test report (EN 10088-1), and SKF factory batch ID. Upon request, we provide dimensional inspection reports signed by our ISO 17025-accredited lab, and support third-party verification via SKF’s official authorization portal at www.skf.com/partnercheck. Bulk orders allow for SKD-supervised factory acceptance testing (FAT) at the SKF facility in Gothenburg or Changzhou.

Storage & Handling Guidelines

• Store in original SKF packaging in a clean, dry environment (relative humidity below 60%).
• Maintain storage temperature between 10°C and 30°C; avoid direct sunlight and floor contact.
• Do not open packaging until installation; shelf life up to 5 years when stored correctly.
• Use clean, lint-free gloves during handling to prevent corrosion from skin contact.
• Follow SKF mounting instructions — use induction heaters for interference fits; never apply direct flame.
• Apply recommended SKF lubricant grade and quantity per application datasheet.

Start with a Technical Consultation

Before placing any order, share your actual operating parameters: radial and axial load spectra (kN), rotational speed range (r/min), ambient and operational temperatures (°C), shaft/housing materials and fits, lubrication method, and space constraints (mm). Our engineering team will deliver a free technical assessment — including SKF BEARINX®-based life calculation, thermal expansion analysis, recommended clearance class, and optimal precision grade — within 48 business hours. For $50,000+ orders, we supply test bearings with full documentation for on-site validation. Every hour delayed in correct bearing selection compounds risk — begin with engineering, not procurement.
