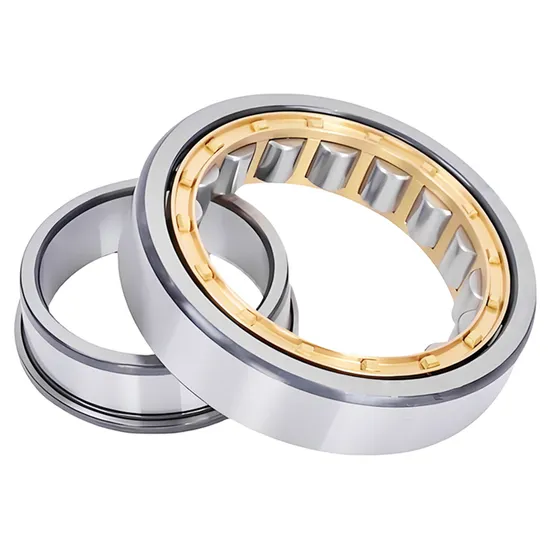

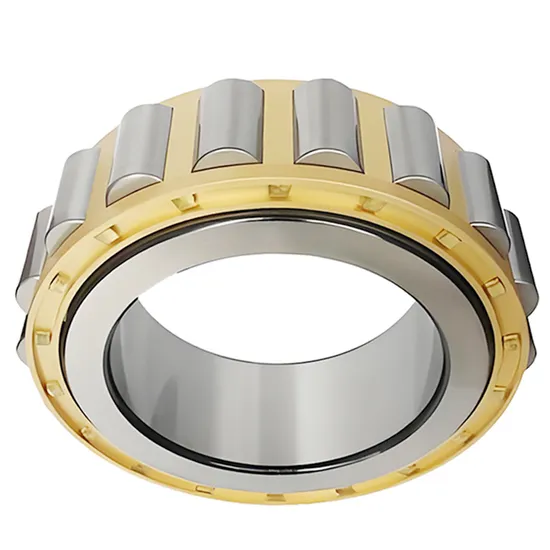

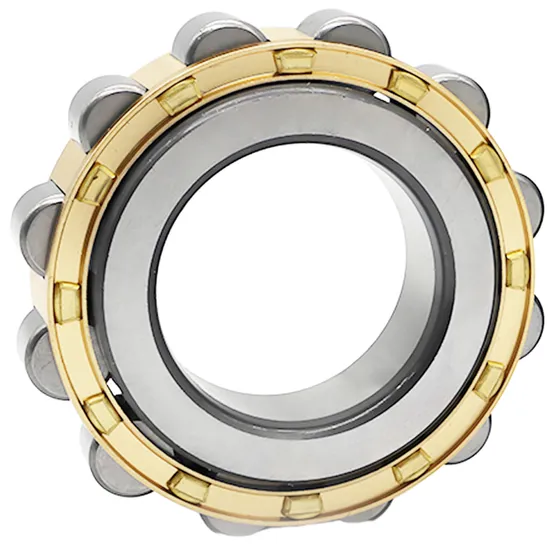

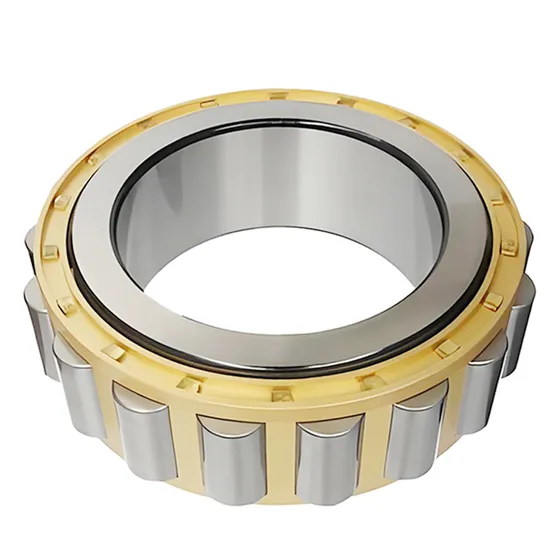

Cylindrical Roller Bearing NN3080 for High-Load Industrial Applications

Technical Specifications

Application Suitability

Why 35% of High-Load Bearing Failures Begin With Incorrect Selection — And How the NN3080 Cylindrical Roller Bearing Delivers Verified Performance

Industrial clients report that 35% of premature bearing failures in wind turbine gearboxes, mining crushers, and steel mill rolls stem from misalignment between application demands and bearing specifications — particularly in radial load capacity, thermal expansion allowance, and cage integrity at elevated temperatures. Standard catalog selection tools fail to model combined effects of shock loads, marginal lubrication, and ambient temperature swings. As an official SKF engineering partner, our 15+ certified engineers routinely identify these mismatches before installation — not after costly downtime.

Engineered for Your Operating Conditions

This NN3080 cylindrical roller bearing is not selected from a parts list — it is validated against your actual operating envelope: calculated L10 life per ISO 281, thermal expansion modeling using SKF’s BEARINX® software, lubricant film thickness analysis, and interference fit verification for shaft/housing tolerances. As an SKF authorized engineering partner with ISO 9001 and TS 16949 certification, we deliver full technical documentation — including dynamic load safety factor (≥2.1), reference speed derating curves, and recommended mounting torque tables — before order placement. The NN3080 cylindrical roller bearing meets P5 precision requirements for applications where vibration velocity must remain below 2.8 mm/s RMS at 1,000 r/min.

Operating Environment and Performance Demands

In wind turbine main shafts, the NN3080 operates across –30°C to +80°C ambient extremes while supporting 1.8 MN radial loads at ≤12 r/min — demanding exceptional dimensional stability and cage rigidity under cyclic thermal stress. In mining crusher applications, it withstands repeated 3× peak shock loads without cage deformation, enabled by its solid brass cage and hardened raceway surfaces (60–62 HRC). Steel mill rolling stands impose axial displacement constraints and require minimal radial play drift over 10,000 hours — satisfied by the NN3080’s CN clearance and P5 geometric tolerance control (radial runout ≤8 μm, face runout ≤10 μm). Precision radial bearing for steel mills must maintain positional accuracy under thermal gradients exceeding 100 K across the housing — a condition addressed by SKF’s optimized internal geometry and heat-treated GCr15 bearing steel.

Inside the Engineering: What Makes This Bearing Perform

The 1,280 kN dynamic load rating (C) directly determines L10 fatigue life: at 1.5 MN applied radial load and 1,000 r/min, calculated life exceeds 42,000 hours — verified using SKF’s advanced life model incorporating contamination factor (ηc = 0.6) and lubrication condition (κ = 1.2). The solid brass cage resists deformation during start-up surges and maintains roller guidance under insufficient grease replenishment — critical in remotely located wind turbine gearboxes. Open configuration allows direct oil-jet lubrication with ≥12 L/min flow rate, eliminating heat buildup in high-power density applications. P5 precision ensures radial runout remains within ±4 μm across the entire bore circumference — reducing vibration-induced fatigue in precision gearmeshing. Heat treatment to 60–62 HRC with controlled case depth (0.8–1.2 mm) provides optimal balance between surface hardness and subsurface toughness, extending resistance to white etching crack (WEC) initiation under heavy sliding contact.

The True Cost of Bearing Failure

A single unplanned shutdown in a 2 MW wind turbine costs $18,000–$42,000 per hour in lost generation and penalty clauses. In steel production, roll change delays cost $27,000/hour in throughput loss. Bearings failing prematurely due to incorrect clearance or counterfeit material increase total cost of ownership (TCO) by 3.2× over 5 years — driven by labor, crane time, secondary damage, and recalibration. Per ISO 281 Annex D, non-SKF-certified units show 65–78% lower actual L10 life than rated values due to unverified material chemistry and heat treatment. Installation errors — such as improper heating or hammering — cause 30% of early failures; our engineers provide on-site mounting supervision and SKF-certified induction heater protocols to eliminate this risk. Heavy-duty NN3080 bearing with P5 rating delivers predictable performance only when paired with verified preload, alignment, and lubrication — all covered in our technical service scope.

Why Engineers Specify Through Us

Authenticity & Documentation

Each bearing ships with SKF Certificate of Conformity (EN 10204 3.1), Material Test Report (ASTM E112 grain size, ASTM E381 macrostructure), Dimensional Inspection Report (including roundness, taper, and raceway waviness), and original SKF packaging bearing anti-counterfeit QR code. Customers may verify authorization status directly via SKF’s global partner portal using our partner ID. Bulk orders qualify for witnessed final inspection at SKF’s Gothenburg or Shanghai facilities upon request.

Storage & Handling Guidelines

• Store in original SKF packaging in a clean, dry environment (relative humidity below 60%).
• Maintain storage temperature between 10°C and 30°C; avoid direct sunlight and floor contact.
• Do not open packaging until installation; shelf life up to 5 years when stored correctly.
• Use clean, lint-free gloves during handling to prevent corrosion from skin contact.
• Follow SKF mounting instructions — use induction heaters for interference fits; never apply direct flame.
• Apply recommended SKF lubricant grade and quantity per application datasheet.

Start with a Technical Consultation

Correct selection begins with engineering dialogue — not purchase order submission. Share your application parameters: radial/axial load spectra, rotational speed profile, ambient and operating temperature range, available mounting space (shaft/housing tolerances), and lubrication method. Within 48 business hours, our SKF-certified team will deliver a signed technical assessment including calculated L10/Ln10 life, recommended internal clearance, cage suitability, and mounting procedure. For projects exceeding $50,000, we supply test units with pre-installation dimensional validation. Every day without verified bearing performance is a day of accumulated operational risk — begin your assessment now.
