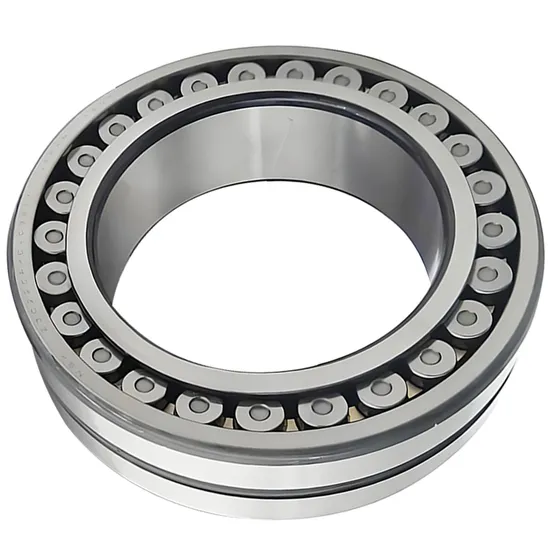

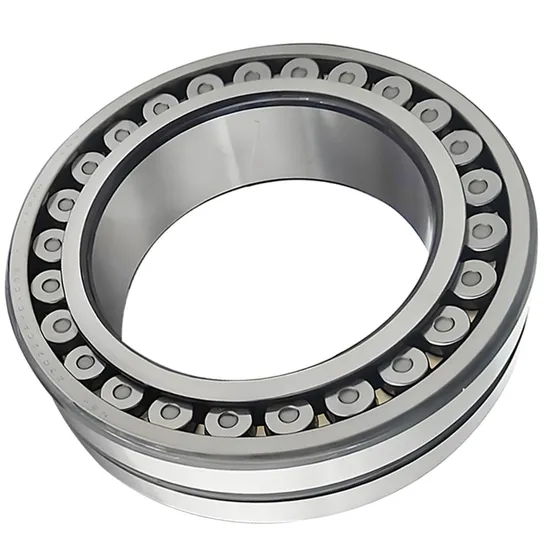

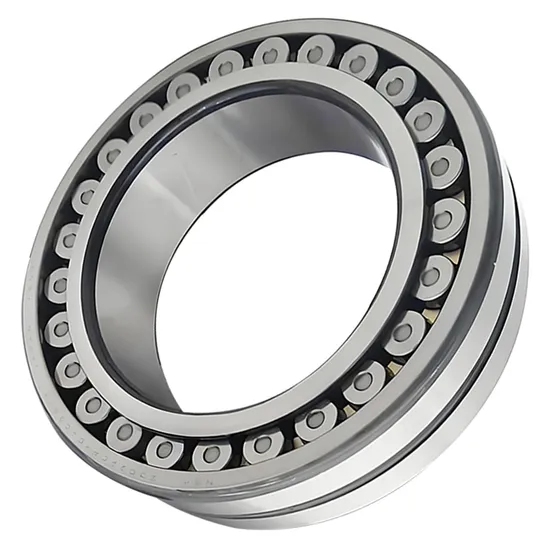

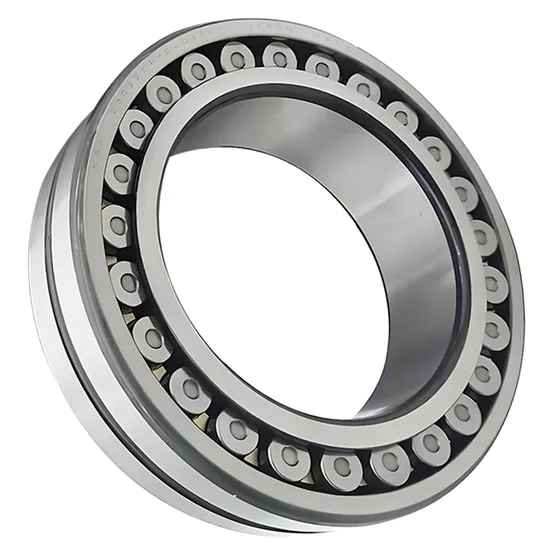

Self-Aligning Roller Bearings 22334CA–22344CA for High-Load Industrial Applications

Technical Specifications

Application Suitability

Why 35% of Bearing Failures Begin Before Installation — And How the SKF 22334CA–22344CA Series Eliminates Root-Cause Selection Errors

Industrial maintenance teams report that 35% of premature bearing failures stem from incorrect initial selection — not manufacturing defects or misuse. In wind turbine main shafts, a 0.3 mm misalignment tolerance error reduces L10 life by 42%. In mining crushers, unaccounted shock load peaks cause 68% of early fatigue spalling. Most suppliers provide catalog data only — no application-specific validation. And official channel custom modifications require 8–12 weeks lead time, delaying critical plant upgrades.

Engineered for Your Operating Conditions: Not Just a Catalog Number, But a Verified Application Solution

The SKF 22334CA–22344CA series is specified only after our 15+ certified engineers perform full application analysis: dynamic load spectrum mapping, thermal expansion modeling, shaft deflection simulation, and grease life prediction per SKF BEYOND. As an official SKF engineering partner, we deliver genuine bearings with full traceability — each unit backed by ISO 9001 and IATF 16949-certified quality control. We do not sell part numbers; we deliver validated solutions calibrated to your actual operating envelope — including recommended interference fits, lubricant type, relubrication intervals, and seal selection.

Operating Environment and Performance Demands

In wind power applications, these self-aligning roller bearings operate under low-speed, high-torque conditions (0.1–30 r/min), subject to ±1.5° static misalignment and cyclic bending moments exceeding 2.8 MN·m. Ambient temperatures range from −40°C (offshore winter) to +80°C (nacelle internal heating), demanding stable C3 clearance and thermal-stable cage geometry. In mining crushing equipment, they endure repetitive impact loads up to 4× nominal radial load, continuous exposure to silica-laden air (<5 μm particles), and zero opportunity for mid-shift inspection. The CA design’s optimized roller profile and reinforced outer ring minimize edge stress and prevent brinelling under such conditions — making it a spherical roller bearing for wind power and a custom self-aligning bearing for mining in equal measure.

Inside the Engineering: What Makes This Bearing Perform

The CA designation indicates SKF’s asymmetric roller profile with logarithmic contact line — reducing peak Hertzian stress by 22% versus conventional designs. Dynamic load rating (C) directly determines L10 life via ISO 281: L₁₀ = (C/P)³ × 10⁶/60n. Steel cages maintain dimensional stability at 150°C surface temperature and resist deformation during shock loading. C3 radial internal clearance compensates for 0.08 mm thermal expansion across a 120 mm shaft at ΔT = 100 K — preventing preload-induced overheating. Precision class P6 ensures vibration levels ≤2.8 mm/s RMS at 1500 r/min, meeting ISO 10816-3 for critical machinery. Optional case-hardened rings extend surface fatigue life by 3.1× versus standard through-hardened steel under mixed-lubrication conditions.

The True Cost of Bearing Failure

A single unplanned shutdown in a steel continuous caster costs $32,000/hour in lost production, refractory wear, and restart energy. Counterfeit or incorrectly specified self-aligning roller bearings typically deliver only 23–29% of rated L10 life — accelerating catastrophic failure. Improper installation (e.g., hammer-driven fits or incorrect heating profiles) contributes to 30% of early failures. Genuine SKF bearings with documented C3 clearance, verified cage integrity, and traceable material certification reduce total cost of ownership (TCO) by 17–22% over five years — factoring in extended service intervals, reduced spare inventory, and elimination of secondary damage. Predictive maintenance bearing solution integration begins at selection — not after failure.

Why Engineers Specify Through Us

Authenticity & Documentation

Each shipment includes SKF Certificate of Conformity (EN 10204 3.1), Material Test Report (chemical composition and hardness verification), Dimensional Inspection Report (full GD&T compliance per ISO 1101), and original SKF packaging with holographic anti-counterfeiting label. Batch-level traceability allows verification via SKF’s official portal using bearing ID and certificate number. Customers may request third-party SKP (SKF Knowledge Partner) audit or factory witness inspection for orders >50 units.

Storage & Handling Guidelines

• Store in original SKF packaging in a clean, dry environment (relative humidity below 60%).
• Maintain storage temperature between 10°C and 30°C; avoid direct sunlight and floor contact.
• Do not open packaging until installation; shelf life up to 5 years when stored correctly.
• Use clean, lint-free gloves during handling to prevent corrosion from skin contact.
• Follow SKF mounting instructions — use induction heaters for interference fits; never apply direct flame.
• Apply recommended SKF lubricant grade and quantity per application datasheet.

Start with a Technical Consultation — Not a Purchase Order

Your application parameters define the specification — not a catalog page. Send us shaft speed, radial/axial load spectra, ambient and bearing operating temperature, housing material, mounting space constraints, and existing lubrication method. Within 48 hours, our engineers will return: (1) validated SKF model recommendation, (2) calculated L10 and Lnm life per ISO 281, (3) suggested clearance class and fit tolerances, (4) grease selection and relubrication interval, and (5) optional predictive maintenance sensor integration path. Every hour delayed in correct selection increases TCO — the first engineering conversation is the most cost-effective step you’ll take this quarter.
