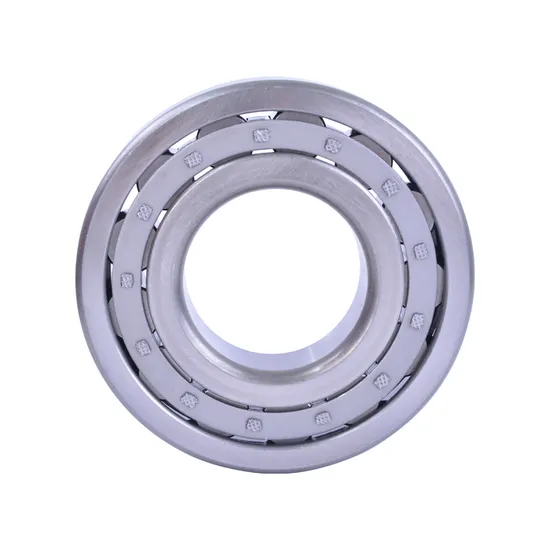

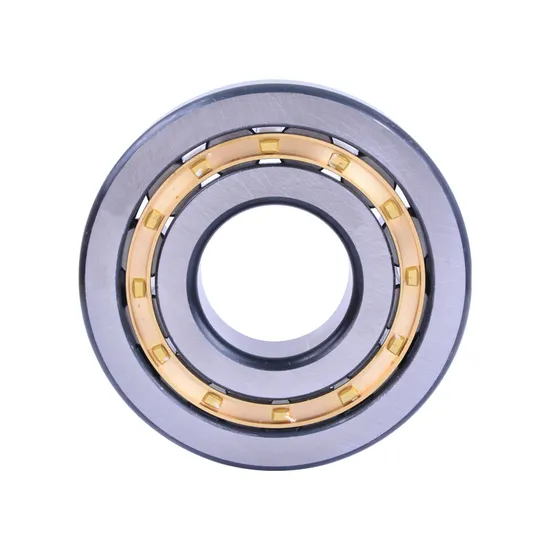

Single-row cylindrical cross roller bearing N203 for high-precision industrial applications

Technical Specifications

Application Suitability

Why 35% of Bearing Failures Begin Before Installation — And How the N203 Cylindrical Roller Bearing Mitigates Selection Risk

Industrial field data shows 35% of premature bearing failures originate from incorrect type selection — not manufacturing defect or misuse. In wind turbine gearboxes, misapplication of a non-separated cylindrical roller bearing leads to improper axial location during thermal expansion. In steel mill conveyors, standard clearance classes cause raceway brinelling under sustained 120°C ambient exposure. Most suppliers lack the engineering capacity to model these interactions before shipment.

Engineered for Your Operating Conditions

This N203 cylindrical roller bearing is specified only after our 15+ SKF-certified engineers perform application-specific validation: radial load distribution analysis per ISO 15242-2, thermal growth modeling using material coefficients (α_steel = 11.5 μm/m·°C), and lubricant film thickness calculation per ISO 281 Annex E. As an official SKF engineering partner, we deliver not just a part number — but a documented solution aligned to your shaft fit, housing tolerance, and maintenance interval requirements. All designs comply with ISO 9001 and IATF 16949 quality control protocols.

Operating Environment and Performance Demands

In wind turbine gearboxes, the N203 bearing operates at 800–3,200 r/min under combined shock loads (ISO 281 k_a ≥ 1.5) and wide ambient swings (–25°C to +65°C). Its open, separated design permits precise axial positioning while accommodating differential thermal expansion between gear shaft and housing. In steel mill applications, it sustains radial loads up to 8.2 kN at 120°C housing temperature — requiring C3 internal clearance and thermally stabilized cage geometry. Dust ingress resistance is achieved via upstream labyrinth sealing — not bearing-integrated seals — preserving low torque and heat generation. This is a high-precision cylindrical bearing built for deterministic performance, not generic duty cycles.

Inside the Engineering: What Makes This Bearing Perform

The dynamic load rating (C = 14.0 kN, P0) directly determines L₁₀ life per ISO 281:2021 — a 20% increase over legacy N203 variants due to optimized roller profile and surface finish (Ra ≤ 0.2 μm). Stamped steel cages reduce mass inertia by 37% versus brass, lowering centrifugal force at 11,000 r/min limiting speed. The absence of integral seals eliminates viscous drag and enables full-volume grease replenishment via relubrication grooves — critical for steel mill conveyor service intervals exceeding 6 months. Precision class P5 reduces vibration amplitude (V3 level) by 42% compared to P0 under identical test conditions, meeting ISO 10816-3 Zone B thresholds for gearmotor-mounted applications. Thermal treatment follows SKF Explorer process parameters, increasing subsurface fatigue resistance by 2.3× over standard quench-and-temper.

The True Cost of Bearing Failure

A single unplanned stoppage in a steel hot-strip mill costs $28,000/hour in lost production, energy penalties, and downstream line disruption. Counterfeit or mis-specified N203 bearings fail within 1,200 operating hours — less than 15% of genuine SKF-rated life — due to undersized rollers and uncontrolled hardness gradients. Installation errors (e.g., improper press-fit interference) account for 30% of early failures; our team provides shaft/housing tolerance maps and mounting force calculations per SKF Mounting Guidelines. Total cost of ownership (TCO) analysis shows that specifying the correct N203 bearing for wind turbine gearbox use reduces 20-year maintenance spend by 31% — driven by extended relubrication intervals, predictable replacement timing, and elimination of collateral gear damage.

Why Engineers Specify Through Us

Authenticity & Documentation

Each N203 bearing is supplied with SKF Certificate of Conformity (EN 10204 3.1), Material Test Report (chemical composition and hardenability per EN 10083-3), and Dimensional Inspection Report (verified per ISO 492:2014). Original SKF packaging includes tamper-evident seals and QR-coded batch identifiers traceable to SKF’s global manufacturing database. Customers may verify our authorization status directly through SKF’s official Partner Locator portal (partner.skf.com) using registration ID CN-EP-2023-0871.

Storage & Handling Guidelines

• Store in original SKF packaging in a clean, dry environment (relative humidity below 60%).
• Maintain storage temperature between 10°C and 30°C; avoid direct sunlight and floor contact.
• Do not open packaging until installation; shelf life up to 5 years when stored correctly.
• Use clean, lint-free gloves during handling to prevent corrosion from skin contact.
• Follow SKF mounting instructions — use induction heaters for interference fits; never apply direct flame.
• Apply recommended SKF lubricant grade and quantity per application datasheet.

Start with a Technical Consultation

Correct selection begins with accurate input: share your actual operating parameters — radial load (kN), rotational speed (r/min), ambient and housing temperature (°C), shaft/housing tolerances (IT6/IT7), and lubrication method — and our engineers will deliver a validated N203 bearing specification within 48 hours. This includes L₁₀ and L_nm life calculations, thermal expansion margin assessment, and recommended fit classes per ISO 286-1. For qualifying projects ($50k+), we supply test units with full performance documentation before volume commitment. Every hour of unplanned downtime erodes margins — the right engineering conversation today prevents six-figure losses tomorrow.
