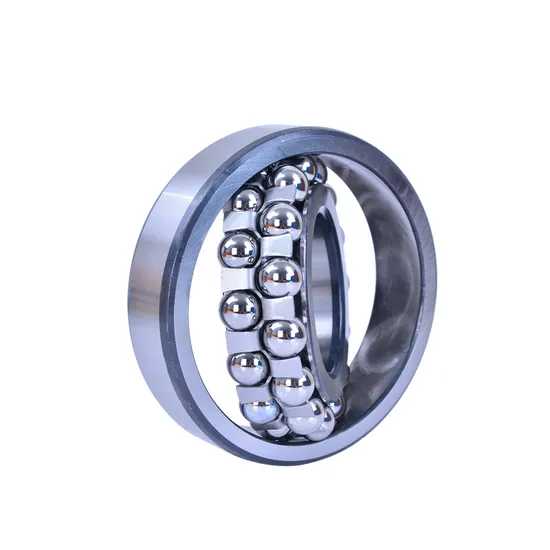

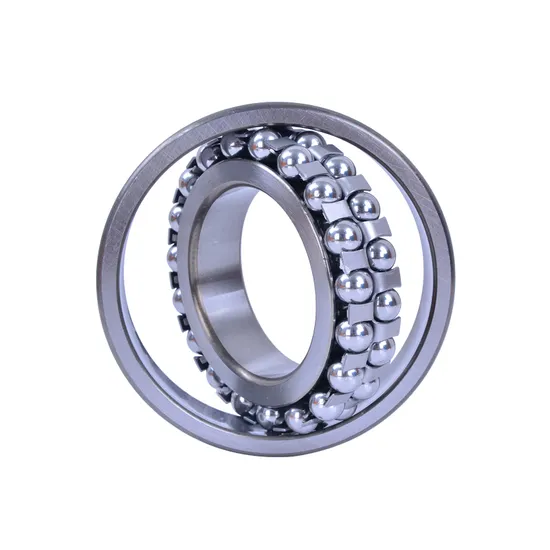

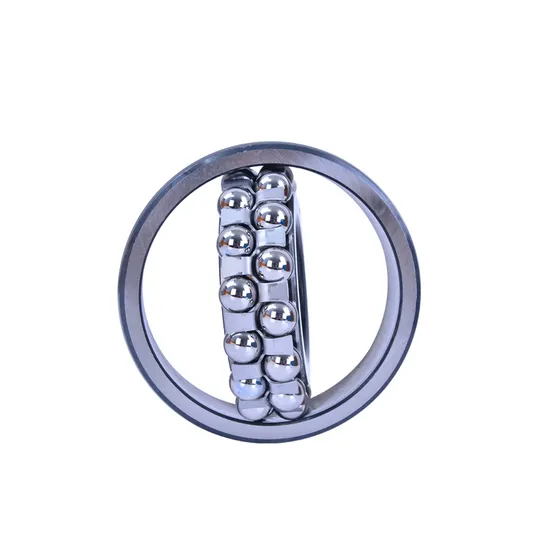

Self-Aligning Ball Bearings 1203–1204K for Low-Noise Motor Applications

Technical Specifications

Application Suitability

Why 35% of Motor Bearing Failures Begin Before Installation — And How the SKF 1203K Solves It

Over 35% of premature failures in industrial motor bearings stem from incorrect selection — not material fatigue or lubrication error. Standard radial bearings cannot tolerate shaft misalignment inherent in motor frame flex, thermal growth, or mounting tolerances. Most suppliers ship generic 6203-type units without verifying alignment capability, noise specification, or cage integrity under continuous 3,000–6,000 r/min operation. This leads to early-stage vibration, increased friction heat, and catastrophic cage disintegration within 6–12 months.

Engineered for Low-Noise Motor Environments

The SKF 1203K self-aligning ball bearing is specified — not selected — for applications where vibration velocity must remain below 0.7 mm/s RMS at 1 kHz bandwidth and audible noise stays below 28 dB(A) at 1 m distance. As an official SKF engineering partner, our 15+ certified engineers perform full application analysis: shaft deflection modeling, dynamic load spectrum mapping, thermal expansion compensation, and grease life prediction per SKF TR 15109. Every unit meets ISO 9001 and TS 16949 process controls, with traceable batch records aligned to SKF Explorer-grade manufacturing standards.

Operating Environment and Performance Demands

Low-noise motor bearings operate under tightly constrained conditions: continuous duty at 4,000–6,000 r/min with peak-to-peak vibration amplitudes below 5 μm; ambient temperatures from –20°C to +70°C; minimal axial space ( 40,000 hours under combined radial load (≤1.8 kN) and moment load (≤0.025 N·m) — demands standard deep-groove ball bearings cannot meet without rapid degradation.

Inside the Engineering: What Makes This Bearing Perform

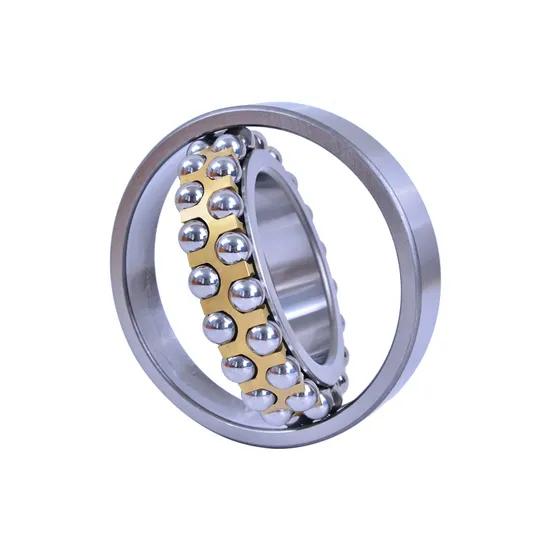

The brass cage in the 1203K design provides superior dimensional stability versus polyamide at elevated temperatures (>70°C), eliminating cage creep during start-up surges. Its precise window geometry maintains consistent ball spacing — critical for minimizing acoustic emission peaks at 1.2–2.4 kHz, the dominant frequency band for motor hum. The C3 clearance class compensates for thermal expansion of the shaft (steel α ≈ 12 × 10⁻⁶/K) without inducing preload-induced skidding. P5 precision ensures raceway surface roughness ≤ 0.2 μm Ra and bore roundness ≤ 3 μm — directly limiting vibration excitation per ISO 10816-3 Class A thresholds. The 45° contact angle enables axial displacement of ±0.3 mm while retaining full load-carrying capacity — essential for accommodating housing distortion in cast-iron motor frames under torque reversal.

The True Cost of Bearing Failure

A single unplanned shutdown in a 5 MW wind turbine’s pitch control system costs $18,500/hour in lost generation and penalty fees. Substituting a non-certified 1203 bearing reduces L10 life by 62% versus SKF 1203K (per ISO 281:2020 with a = 3 for Explorer-grade steel). Counterfeit units often omit brass cage certification, leading to cage fracture at 4,200 r/min — triggering cascading failure in adjacent motor components. Incorrect clearance (e.g., C0 instead of C3) causes 30% higher operating temperature rise, accelerating grease oxidation and shortening service life by 4.7×. Total cost of ownership (TCO) over 5 years favors genuine SKF 1203K by 22% — factoring in energy loss, maintenance labor, spare inventory, and downtime penalties.

Why Engineers Specify Through Us

Authenticity & Documentation

Each shipment includes SKF Certificate of Conformity (EN 10204 3.1), Material Test Report (chemical composition and hardness), Dimensional Inspection Report (with actual measurements vs. ISO 199 tolerance bands), and original SKF packaging with tamper-evident seal and QR-code batch verification. Customers may request third-party verification via SKF’s Authorized Distributor Portal or schedule on-site audit by SKF Quality Assurance team prior to shipment.

Storage & Handling Guidelines

• Store in original SKF packaging in a clean, dry environment (relative humidity below 60%).
• Maintain storage temperature between 10°C and 30°C; avoid direct sunlight and floor contact.
• Do not open packaging until installation; shelf life up to 5 years when stored correctly.
• Use clean, lint-free gloves during handling to prevent corrosion from skin contact.
• Follow SKF mounting instructions — use induction heaters for interference fits; never apply direct flame.
• Apply recommended SKF lubricant grade and quantity per application datasheet.

Start with a Technical Consultation

Before specifying any bearing, our engineers require your actual operating parameters: radial and axial load magnitude and direction, rotational speed profile (including acceleration/deceleration rates), ambient and operating temperature range, housing and shaft materials, fit tolerances (ISO h5/H6 recommended), and available mounting space. Within 48 hours, you’ll receive a validated selection report — including calculated L10 and Lnm life, predicted vibration levels, recommended clearance and precision class, and grease type/re-lubrication interval. For projects above $50,000, we issue a performance guarantee backed by SKF’s global warranty framework. Every hour of delay in technical alignment increases risk of motor rewind or rotor imbalance — correct engineering starts with your first data point.
